10.1 Inch HD LCD Display Panel 1280x800 Resolution IPS TFT LCD Capacitive Touchscreen

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH101WX01B-CT

Detail Information

Product Name: 10.1 Inch HD Lcd Display Panel LCD Type: 10.1” IPS
Dot Arrangement: 1280×3(RGB)×800 Dots Color Pixel Arrangement: RGB Vertical Stripe
Display Mode: IPS / Transmissive / Normally Black Viewing Direction: 85/85/85/85
Interface: LVDS CTP Type: G+G
High Light:

LVDS LCD Display Panel

,

1280x800 TFT LCD Capacitive Touchscreen

,

IPS TFT LCD Capacitive Touchscreen

Product Description

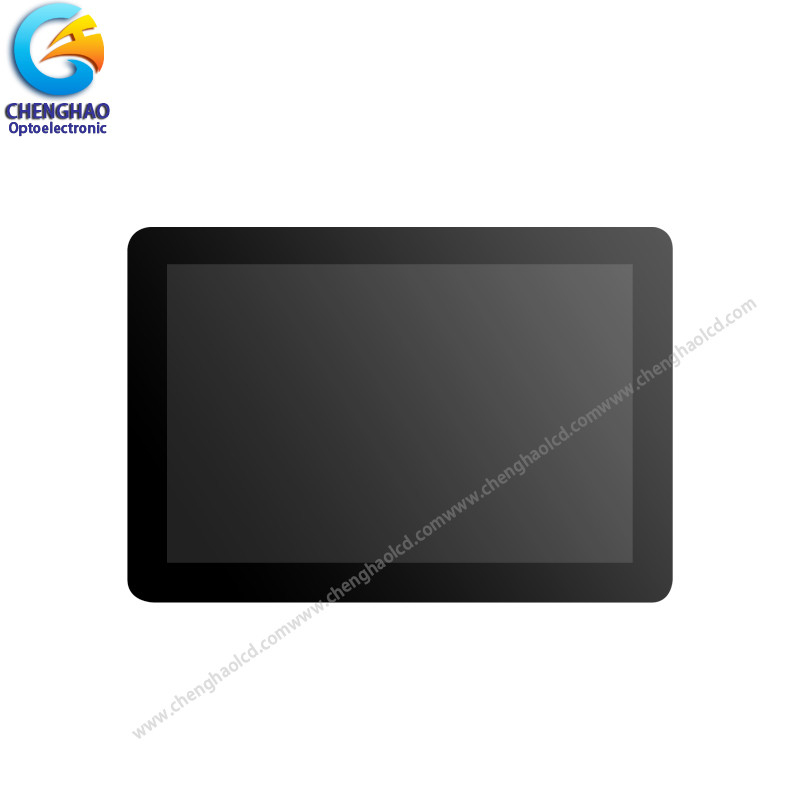

10.1 Inch HD Lcd Display Panel 1280x800 Resolution IPS TFT LCD Capacitive Touchscreen​



1. Specification



MODEL NO. CH101WX01B-CT
Module type 10.1 inch TFT+CTP
Display Mode  IPS/Transmissive / Normally Black
Number of Dots 1280x800
Viewing Direction 85/85/85/85
Module size
253.82(W)×170.8(H)×4.85(T) mm
TFT Active area
216.96(W)×135.6(H)  mm
TFT Dot pitch
0.1695(W)×0.1695(H) mm
Interface LVDS
Backlight Type White LED
Luminace 300 cd/m2



2. Description



Chenghao Optoelectronic CH101WX01B-CT is a color LCD module that supports multi-touch. The lcd display panel and touch panel support LVDS and I2C interfaces respectively, and can operate normally in an environment with a temperature ranging from -20 to +70°C More than 20000H or more. When the input voltage is VF=9.0~10.5V, IF=260mA, the brightness of the display can reach 300 cd/m2. There is a 10.1 inch color display area of this multi-touch display, which can display high-definition video images of 1280x800 resolution and so on. CH101WX01B-CT uses IPS display technology, and the viewing angle of the screen is 85/85/85/85, which means that as long as it is within the limit value of the viewing angle, users can clearly read the screen from different angles.
For the vast majority of customers, screen customization is an unavoidable option. This 10.1 inch tft display supports a variety of content customization including screen brightness, FPC shape, TFT interface, etc. If you have this need, please contact us by email or online consultation.





3. Drawings



Notes:
(1) Display Type : 10.1" TFT+CTP
(2) Viewing Direction : 85/85/85/85
(3) Lcd Drive IC : ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



10.1 Inch HD LCD Display Panel 1280x800 Resolution IPS TFT LCD Capacitive Touchscreen 0





4. Quick Detail


LCM number : CH101WX01B-CT
Resolution : 1280× 3(RGB) × 800
Dot pitch : ******
Outline dimension : 253.82(W)×170.8(H)×4.85(T) mm
Active Area : 216.96(W)×135.6(H) mm
View angle| : R/L/U/D 85/85/85/85(Deg)
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : LVDS
Brightness : 300(cd/m2)
Tft driver IC : ***
Contrast ratio : 800
Backlight Type : White LED
Response time : ******(ms)
Display mode : IPS, Normally Black, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 16.7M
Backlight lifetime : 20k hrs(Min.)
With/without Touch Panel:Yes
Touch Panel Type:Capacitive touch panel







5. Application



10.1 Inch HD LCD Display Panel 1280x800 Resolution IPS TFT LCD Capacitive Touchscreen 1







6. FAQ



Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.

Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production

Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.

Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.

Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.
