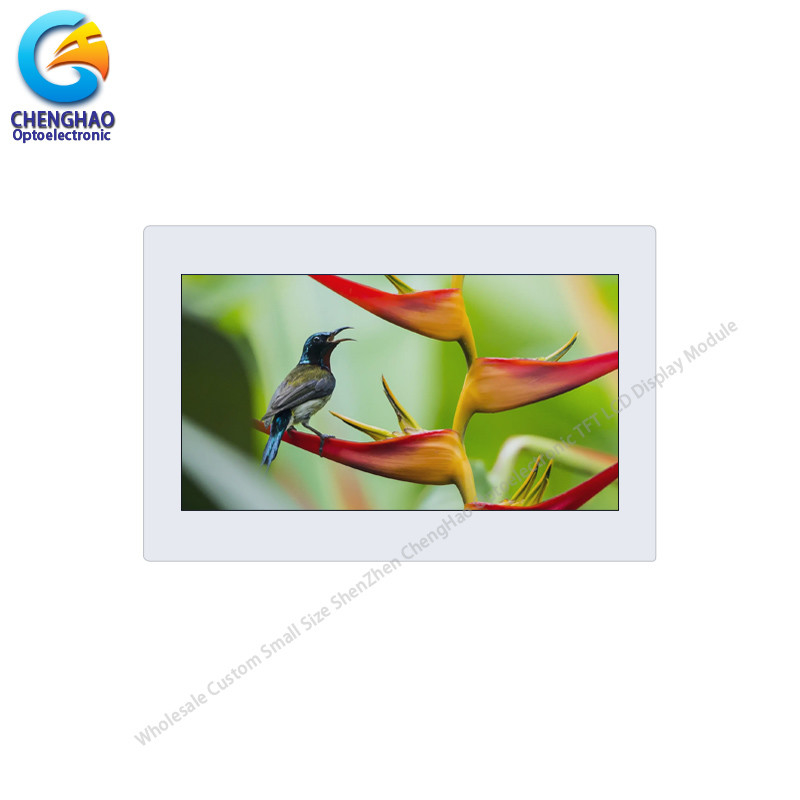

7 Inch Touch LCD Display 800x480 TFT LCD Capacitive Touchscreen

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV01-CT

Detail Information

Product Name: 7 Inch Touch LCD Display Lcd Type: 7.0 Inch TFT +CTP
Resolution: 800*480 Viewing Direction: 12:00
TFT Interface: MCU CTP Interface: I2c
Luminance: 250 Pin Number: 50 Pin
High Light:

Touch LCD Display 800x480


CTP Touch LCD Display


12 o'clock TFT LCD Capacitive Touchscreen

Product Description

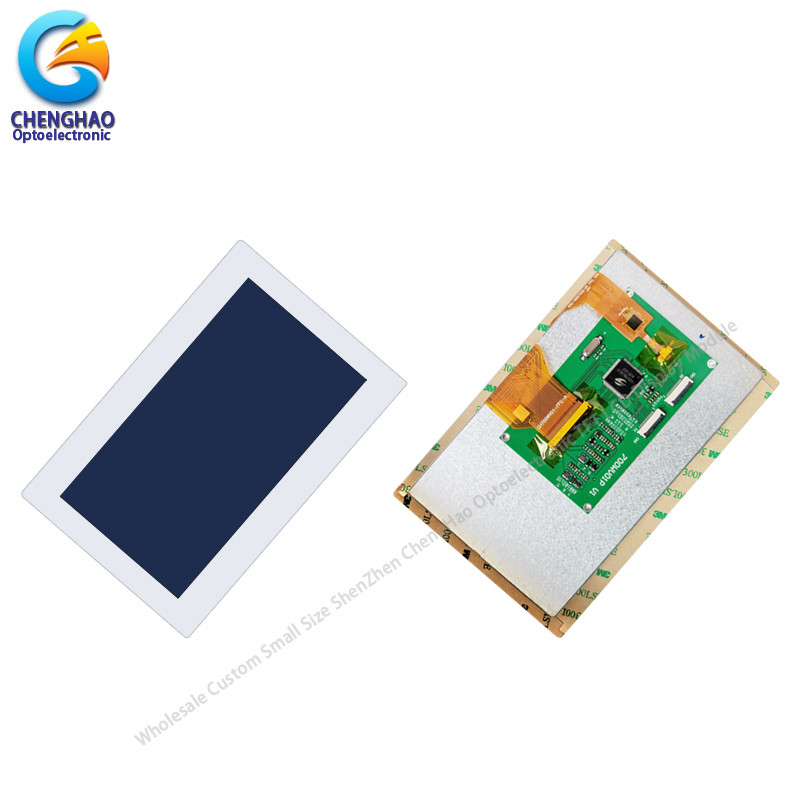

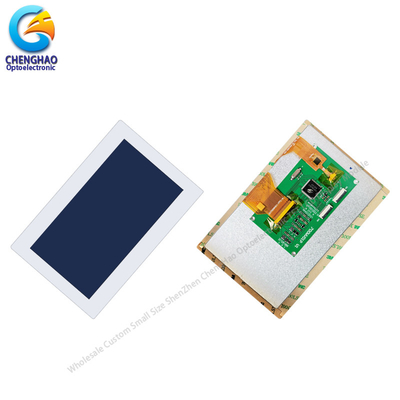

7 Inch Touch LCD Display 800x480 TFT LCD Capacitive Touchscreen


1. Specification


Module type 7"TFT + CTP + PCB
Display Mode TN/Transmissive/Normally white
CTP type G+G
Number of Dots 800*3(RGB)*480
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Module size 180.0(W)*119.0(H)*12.0(T)mm
TFT Active area 154.08(W)*85.92(H)mm
TFT Dot pitch 0.1926(W)*0.1790(H)mm
Interface TFT:8/9/16/18/24-bit 8080 CTP:I2C
Backlight Type White LED
Luminace 250cd/m2



2. Description


Chenghao Optoelectronic CH700WV01B-CT is a 7 inch touch LCD display used in smart coffee machines. It is equipped with a touch panel, and users can interact with the device through the touch panel. This touch LCD screen has passed the experimental tests of anti-static (EMC), anti-aging, high and low temperature, etc. It can continuously run for more than 20k Hr in the environment of -20~+70 ℃, and its anti-static ability reaches 15Kv, And passed CE, RoHs certification.
CH700WV01B-CT is a very cost-effective 7 inch touch LCD screen (horizontal screen), using the combination of lcd panel+TP, the lcd panel belongs to tft lcd, can display 800*480 pixel video animation, supports 8 /9/16/18/24-bit 8080 interface. The TP is a resistive touch panel and uses a usb interface.
For most LCD screen buyers, customization service is an essential part of the process of purchasing LCD screens. CH700WV01B-CT can also be modified and customized according to customer requirements. The customized content includes FPC shape, backlight brightness, touch panel modification (RTP=>CTP) or removal, screen surface treatment (anti-glare), etc.


7 Inch Touch LCD Display 800x480 TFT LCD Capacitive Touchscreen 0


3. Drawings


(1) Display Type : 7.0 inch tft lcd
(2) Viewing Direction : 12:00
(3) Lcd Drive IC : ***
(4) Polarizer Mode : ****
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

7 Inch Touch LCD Display 800x480 TFT LCD Capacitive Touchscreen 1



4. Quick Detail


Attribute Value
Diagonal Display Size:7.0 inch
TFT Interface Type: 8/9/16/18/24-bit 8080

CTP Interface Type: I2C

Resolution: 800 x 480pixels
Touch Screen: Yes
Touch Screen Type: Capacitive
Backlight Type: LED
Display Mode: Transmissive
Display Matrix Technology: TFT
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +70°C
Brightness: 250 cd/m²
Number of Colours: 16.7 Million
Standards Met: CE, RoHS Compliant
Response Time: 10ms
Operating Temperature Range: -20 → +70°C
Contrast Ratio:500
Display Type: LCD TFT


5. Application


7 Inch Touch LCD Display 800x480 TFT LCD Capacitive Touchscreen 2



6. FAQ


Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.


Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production


Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.


Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.


Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.


Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply
