High Definition Color LCD Display 5.5 Inch 1080x1920 LTPS TFT

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH550FH01A

Detail Information

Product Name: High Definition Color LCD Display LCD Type: 5.5" TFT
Display Mode: LTPS Viewing Direction: All
Driver IC: HX8399C Interface: 4lane MIPI
Back Light: 14 White LED Weight: TBD G
High Light:

4 lane MIPI color LCD display


HX8399C color LCD display


High Definition TFT LCD Display

Product Description

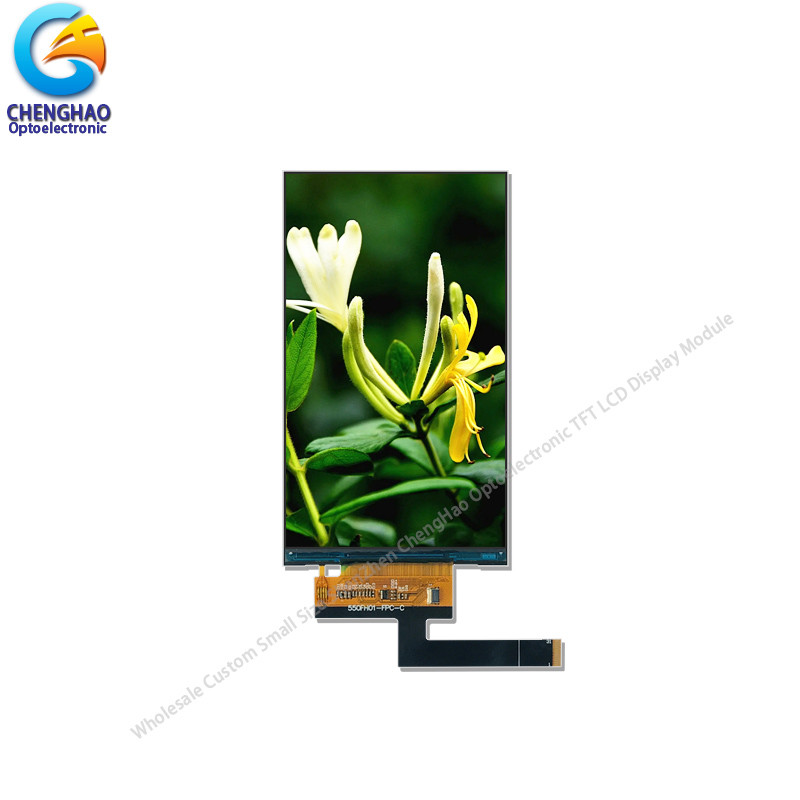

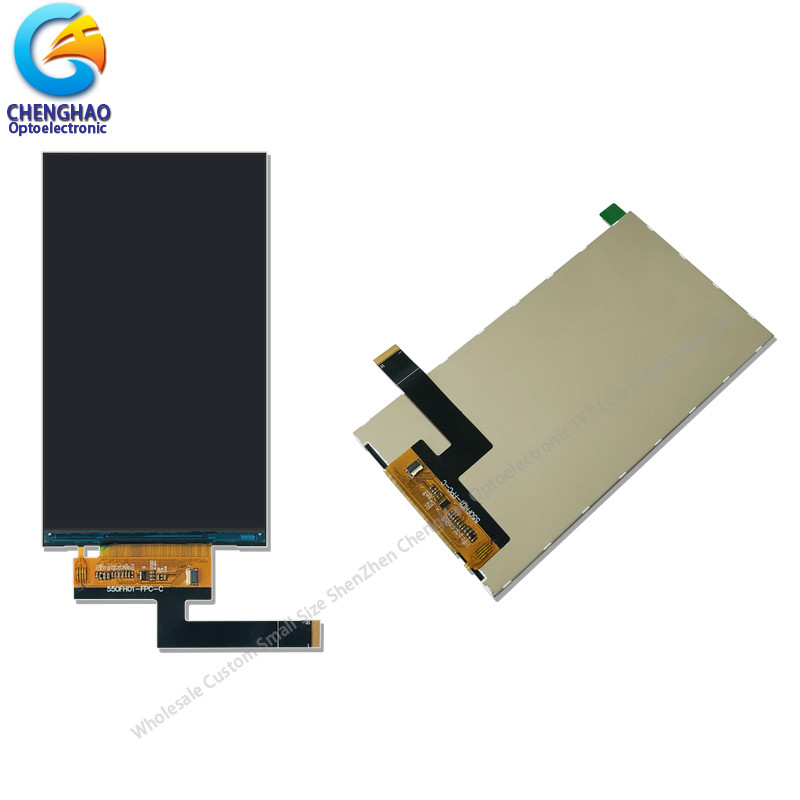

High Definition Color LCD Display 5.5 Inch 1080x1920 LTPS TFT


1. Specification


LCD type 5.5’’TFT --
Dot arrangement 1080*1920 dots
Driver IC
Module size
Active area
Dot pitch



2. Description


Chenghao Optoelectronic CH550FH01A is a high-definition color LCD display with excellent performance. The diagonal length of the display area is 5.5 inches, the resolution is 1080 (RGB) * 1920, and it can display high-definition video animation with 16M colors. At the same time, due to the use of LTPS display technology, the viewing angle of this display can reach 80/80/80/80, and users can clearly read the screen from any viewing angle.
This display is a TFT lcd and uses a 4 lane MIPI interface. Its maximum brightness reaches 700 cd/m2 (Hight Brightness lcd display) and can be read in sunlight (sunlight readable lcd display). When the temperature difference is between -20~+70 ℃, this high-definition color LCD screen can operate normally, and the service life can reach more than 30k Hr.



High Definition Color LCD Display 5.5 Inch 1080x1920 LTPS TFT 0


3. Drawings


(1) Display Type : 5.5" TFT
(2) Viewing Direction : 80/80/80/80

(3) Lcd Drive IC : ****
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS



High Definition Color LCD Display 5.5 Inch 1080x1920 LTPS TFT 1



4. Quick Detail


LCD type: 5.5”TFT
Dot arrangement: 1080(RGB)×1920 dots
Color filter array: RGB vertical stripe
Display mode: LTPS / Transmissive / Normally Black
Viewing Direction: 80/80/80/80
Driver IC: HX8399C
Outline: 70.78(W)×129.17(H)×1.7(T) mm
View area: 68.44(W)×121.36(H) mm
Active area: 68.04(W)×120.96(H) mm
Dot pitch: 63(W)×63(H) um
Interface: 4lane MIPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light :14 White LED
Weight :TBD g



5. Application



High Definition Color LCD Display 5.5 Inch 1080x1920 LTPS TFT 2




6. FAQ


1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(33.00%),North America(20.00%),Western
Europe(19.00%),Eastern Europe(10.00%),Southeast Asia(7.00%),Northern Europe(5.00%),Eastern Asia(3.00%),South
Asia(2.00%),Oceania(00.00%). There are total about 51-100 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sensor Module,Display Module,Power Module,Wireless Module,PCB.

4. why should you buy from us not from other suppliers?
Established in 2015 shenzhen private high quantity Electronic modules, processors and microcontrollers, embedded peripheral chips, logic chips, memory, power chips, drivers, sensors, crystals and so on .Work area 1001-2000 square meters more than 100 peopls

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
