All Black Effect Square Touch LCD Display 3.95 Inch TFT LCD Capacitive Touchscreen

Minimum Order Quantity : 100 pcs Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV17B-CTBA

Detail Information

Product Name: All Black Effect Square Touch LCD Display Resolution: 480*480
Viewing Direction: 80/80/80/80 Display Type: 3.95”TFT+CTP
Operating Temp: -20~+70 Storage Temp: -30~+80
Luminance: 300 Cd/m2 CTP Interface: I2c
High Light:

i2c Square Touch LCD Display

,

300 cd/m2 Square Touch LCD Display

,

TFT LCD Capacitive Touchscreen

Product Description

All Black Effect Square Touch LCD Display 3.95 Inch TFT LCD Capacitive Touchscreen



1. Specification



Model no CH400WV17B-CTBA
Size 3.95 inch
Active Area 86*86 mm
Panel Type IPS Panel
Backlight LED
Backlight Life 50,000 hrs
Resolution 480*480 dots
Brightness 350 cd/m





2. Description



CHenghao Optoelectronic CH400WV17B-CTBA is a square touch LCD display with capacitive touch panel, which supports multi-touch function, users can interact with the display by touching the capacitive panel. This touch LCD screen uses IPS display technology, allowing users to freely read the screen with an ultra-wide viewing angle. At the same time, this touch LCD display is also a wide temperature display, which can work in an environment with a temperature difference between -20~+70℃.

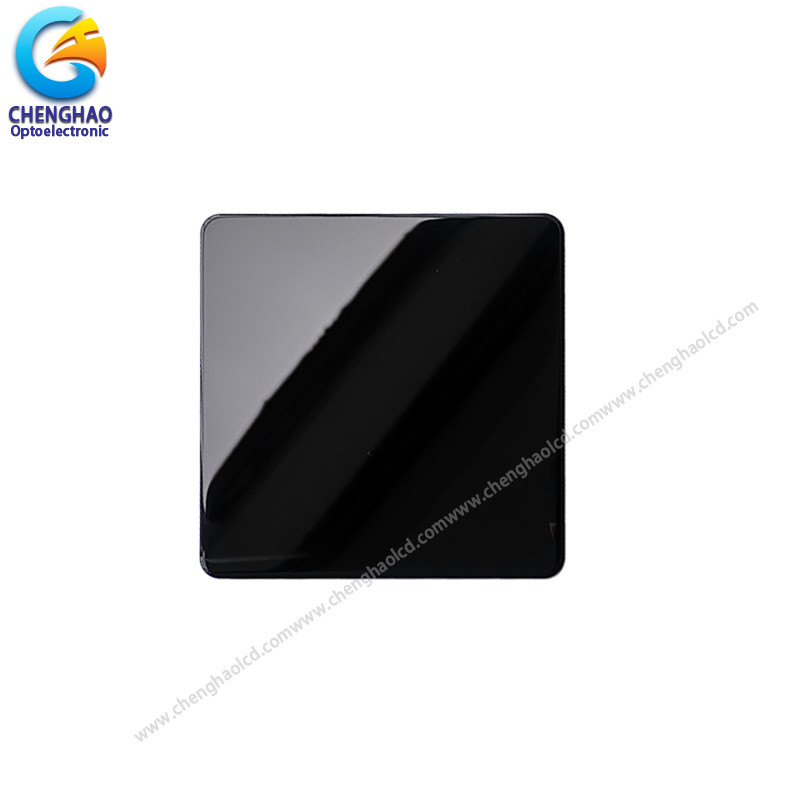

There is a 4 inch color display area of this touch LCD screen, which can display 480x480 resolution video animation, its biggest feature is that the touch panel adopts the All Black Effect manufacturing process.



All Black Effect Square Touch LCD Display 3.95 Inch TFT LCD Capacitive Touchscreen 0



3. Drawings



Notes:
(1) Display Type : 3.95inch TFT+CTP
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ****
(4) Polarizer Mode : ****
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS


All Black Effect Square Touch LCD Display 3.95 Inch TFT LCD Capacitive Touchscreen 1





4. Quick Detail



Attribute Value
Diagonal Display Size:3.95 inch
Resolution: 480*480
Touch Screen: Yes
Viewing Area Dimensions:68*68 mm
Touch Screen Type: Capacitive
Backlight Type:While LED
Display Mode: Transmissive
Dimensions:86*86 mm

Display Matrix Technology: TFT
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +70°C
Brightness:350 cd/m²
Number of Colours: 16.7 Million
Standards Met: CE, RoHS Compliant
Response Time: 10ms
Operating Temperature Range: -20 → +70°C
Contrast Ratio:800
Display Type: LCD TFT+CTP



5. Application



All Black Effect Square Touch LCD Display 3.95 Inch TFT LCD Capacitive Touchscreen 2





6. FAQ



Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.


Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.


Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.


Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.


Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
