240x320 Touch LCD Screen 2.8 Inch 50pin With Resistive Touch Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH280QV07A-T

Detail Information

Product Name: Touch LCD Screen Resolution: 240x320 Dots
Display Mode: TN Viewing Direction: 6:00
Interface: SPI/RGB/MCU Back Light Number: 4 Pcs
LCD Type: 2.8inch Tft Driver IC: ILI9341
High Light:

240x320 Touch LCD Screen


Touch LCD Screen 2.8 inch


SPI Resistive touch LCD panel

Product Description

240x320 Touch LCD Screen 2.8 Inch 50pin With Resistive Touch Panel


1. Specification


Display type 2.8" TFT LCD+RTP
Backlight tube LED
Brightness (cd/m²) 300
Backlight life (h) >20,000
Contrast 500
Viewing angle ( L/R/T/B) 6:00



2. Description


CHenghao Optoelectronic CH280QV07A-T is a touch LCD screen that supports human-computer interaction. Users can easily interact with the device through the touch panel. The touch LCD screen has undergone strict high and low temperature experimental tests, and can work in an environment with a temperature between -20~ +70°C. It is a real wide temperature display and has been widely used.
This touch LCD screen belongs to tft lcd, with a lifespan of up to 20K Hr, and supports SPI, MCU, and RGB interfaces. There is a 2.8 inch color display area of the touch LCD screen, which can display video animations of 240x320 pixels.
If this touch LCD screen does not meet your project needs, we can provide you with more similar LCD display solutions, or modify and customize the display solution according to your needs, the customizable content includes the brightness of the backlight, FPC shape design, communication interface customization, removal of touch panel, etc.

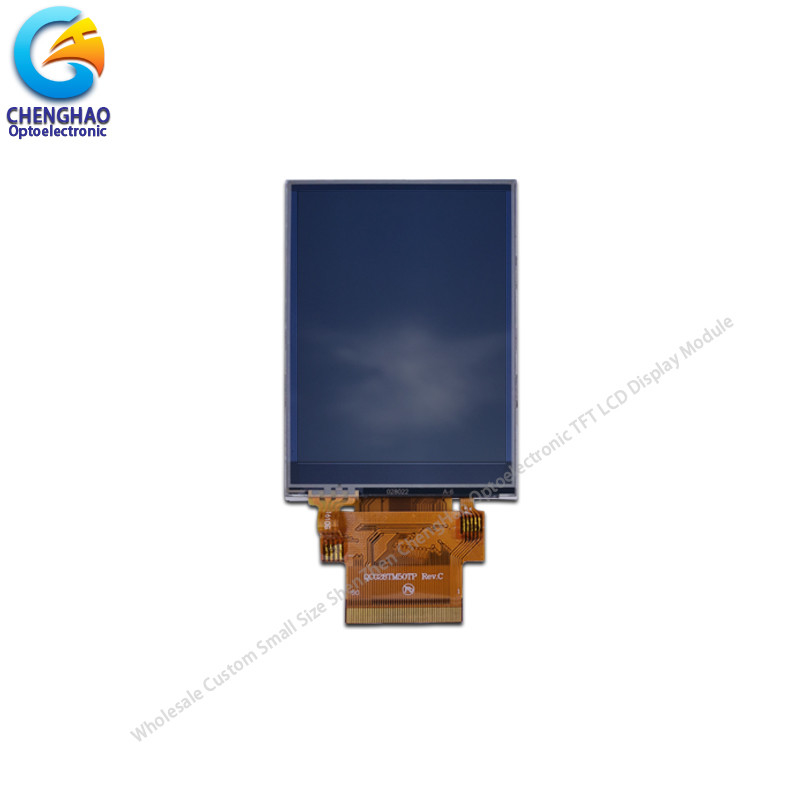

240x320 Touch LCD Screen 2.8 Inch 50pin With Resistive Touch Panel 0


3. Drawings


(1) Display Type : 2.8"TFT+RTP
(2) Viewing Direction : 6:00

(3) Lcd Drive IC : ILI9341
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

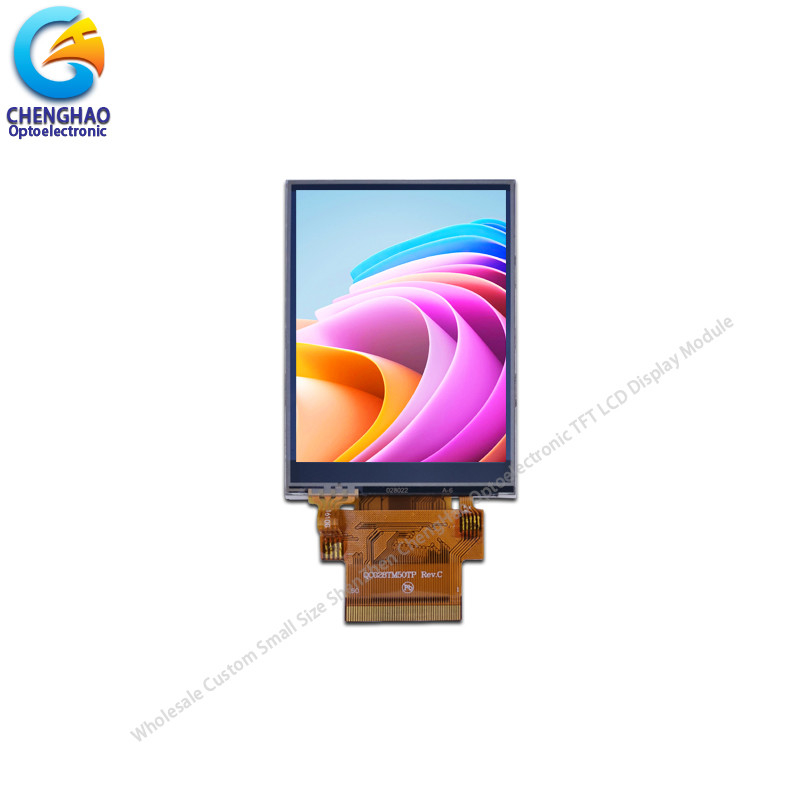

240x320 Touch LCD Screen 2.8 Inch 50pin With Resistive Touch Panel 1



4. Quick Detail


LCD type: 2.8”TFT
Dot arrangement: 240(RGB)×320 dots
Color filter array: RGB vertical stripe
Display mode: TN / Transmission / Normally White

lcd manufacturer: Chenghao Optoelectronic
Viewing Direction: 6 o’clock
Driver IC: ILI9341V
Module size: 50.0(W)×69.2(H)×3.6(T) mm
Active area: 43.2(W)×57.6(H) mm
Dot pitch: 0.18(W)×0.18(H) mm
4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080-series system interface
SPI + 6-/16-/18-bit RGB interface
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 4 White LED In Parallel
Weight: TBD g




5. Application



240x320 Touch LCD Screen 2.8 Inch 50pin With Resistive Touch Panel 2




6. FAQ


Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.


Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production


Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.


Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.


Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.
