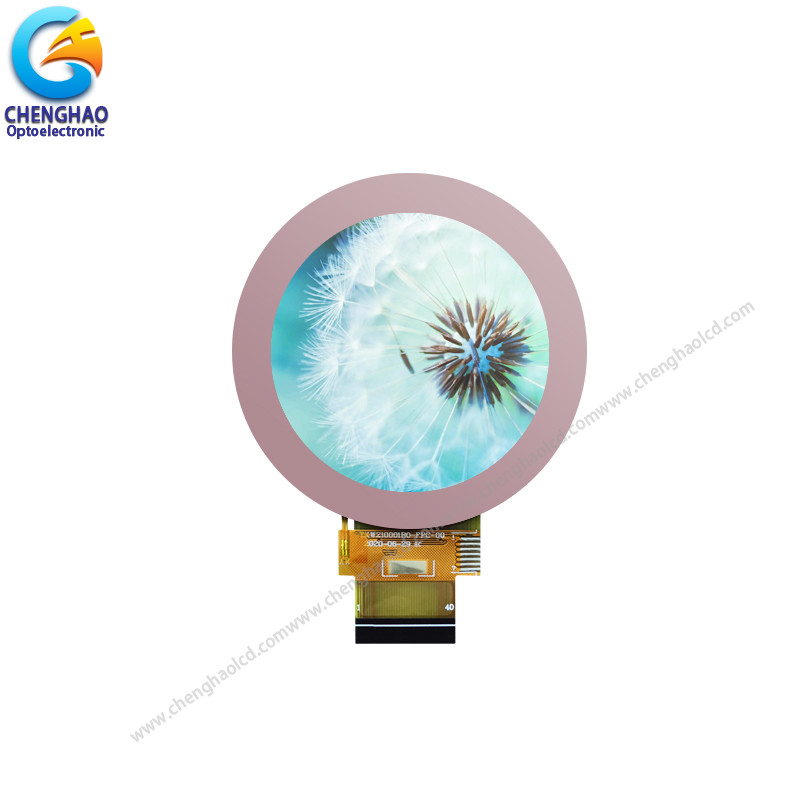

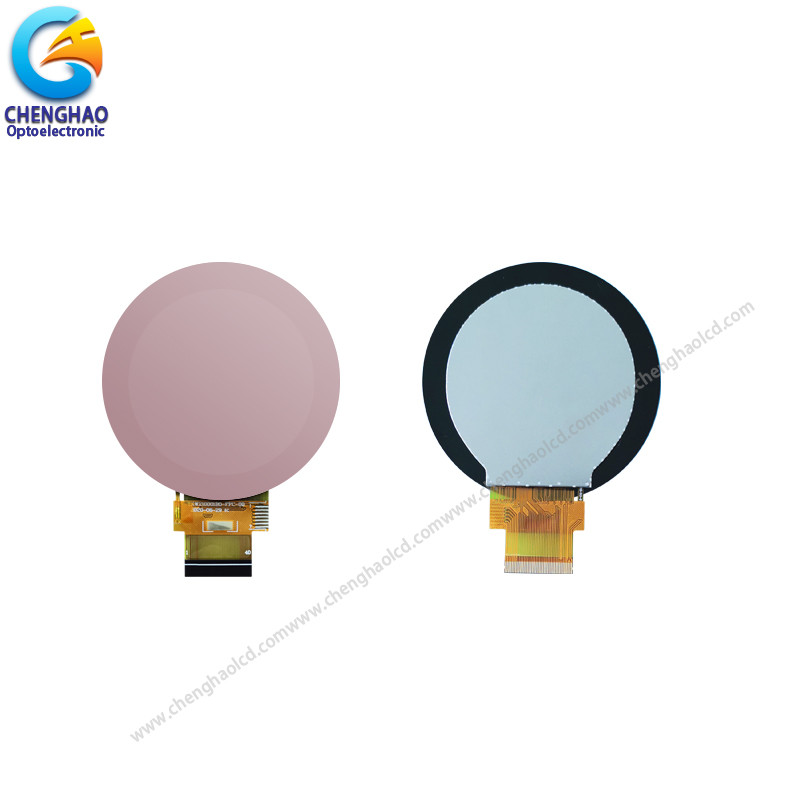

Round Color LCD Display 2.1 Inch 480x480 IPS All Viewing Direction

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH210WV01A-CT

Detail Information

Product Name: Round Color LCD Display Resolution: 480x480
Display Mode: IPS Viewing Direction: All
TFT Driver IC: ST7701S CTP Driver IC: CST830
Module Size: φ71.8×3.65(T) Mm Active Area: φ53.28 Mm
Dot Pitch: 0.111(W)×0.111(H) Mm
High Light:

CTP Round Color LCD Display


2.1 Inch Round LCD Display


ST7701S Round LCD Display

Product Description

Round Color LCD Display 2.1 Inch 480x480 IPS All Viewing Direction


1. Specification


Display type TFT LCD+CTP
Backlight tube LED
Brightness (cd/m²) 300
Backlight life (h) >20,000
Contrast 800
Viewing angle ( L/R/T/B) 80/80/80/80


2. Description


CHenghao Optoelectronic CH210WV01A-CT is a round color LCD display with IPS display technology that allows users to read the screen with an ultra-wide viewing angle (80/80/80/80), which is especially important for outdoor use of the product. At the same time, the round color LCD display is also a wide temperature display that has been tested by high and low temperature experiments and practical applications, and can work in an environment with a temperature between -20~ +70 °C.
There is a 2.1 inch color display area of round color lcd display, which can play video animations of 480*480 pixels, and supports 3 line SPI+18 bit RGB multi-interface.
If this round color LCD display can't meet your needs, we have many similar LCD display solutions for you to choose from, you can get it by email or contact our online customer service.


3. Drawings

(1) Display Type : 2.1 inch TFT+CTP

(2) Viewing Direction : all viewing direction

(3) Operating Temp : -20~70 ℃

(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS



Round Color LCD Display 2.1 Inch 480x480 IPS All Viewing Direction 0



4. Qucik Detail


LCD type: 2.1’’TFT + CTP
lcd manufacturer: Chenghao Optoelectronic
Dot arrangement: 480(RGB)×480 dots
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction: 80/80/80/80
TFT Driver IC:ST7701S
CTP Driver IC:CST830
Module size: φ71.8×3.65(T) mm
Active area: φ53.28 mm
Dot pitch: 0.111(W)×0.111(H) mm
TFT Interface:3line SPI + 18bit RGB
CTP Interface:I2C
 Operating temperature :-20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 4pcs White LED
Weight :TBD g

5. Application

Round Color LCD Display 2.1 Inch 480x480 IPS All Viewing Direction 1




6. FAQ

Q1: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q2: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q3: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q4: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q5: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.

Q6: How long is your warranty period?
A: We guarantee the quality for one year.
