10.1 Inch Full Viewing Angle Color Touch LCD Display 1024x600 Resolution

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH101WS07A-CT-PA

Detail Information

Product Name: 10.1 Color Touch LCD Display Dot Arrangement: 1024*600
Display Mode: IPS Viewing Direction: All Viewing Direction
CTP Driver IC: GT911 TFT Interface: SPI
CTP Interface: I2c Back Light Number: 42
High Light:

IPS 10.1 Inch LCD Display


SPI 10.1 Inch LCD Display


1024x600 IPS LCD Display

Product Description

10.1 Inch Full Viewing Angle Color Touch LCD Display 1024x600 Resolution


1. Specification


Type: TFT
Viewing Direction: 80/80/80,80
Display Mode IPS
Operating temperature: -30℃~80℃
Storage temperature: -30℃~80℃
Driver IC: ****
Interface type: SPI
Brightness: 400 CD/㎡




2. Description


CHenghao Optoelectronic CH101WS07A-CT is a full viewing angle color touch LCD display, which mainly includes a touch panel (TP), a Lcd panel, a backlight assembly (BL), a driver IC and an FPC.
(1) This TP is a capacitive touch panel (CTP), using GT911 as a driver IC, communicating with other components through the I2C interface, and supporting multi-touch.
(2) The lcd panel is of TFT type, allowing users to read the LCD screen with a wide viewing angle (80/80/80/80). There is a 10.1 inch active color area of the lcd panel that can play 1024x600 pixel HD video animations.
(3) BL and FPC can be customized according to customer requirements. The customized content includes BL brightness, FPC shape, interface customization, touch panel removal or replacement (RTP), etc.
If CH101WS07A-CT can not meet your needs, we have many similar LCD display solutions for you to choose from, you can get them through our online customer service.



3. Drawings

(1) Display Type : 10.1” TFT+CTP

(2) Viewing Direction : 80/80/80/80

(3) Operating Temp : -20~70 ℃
(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS

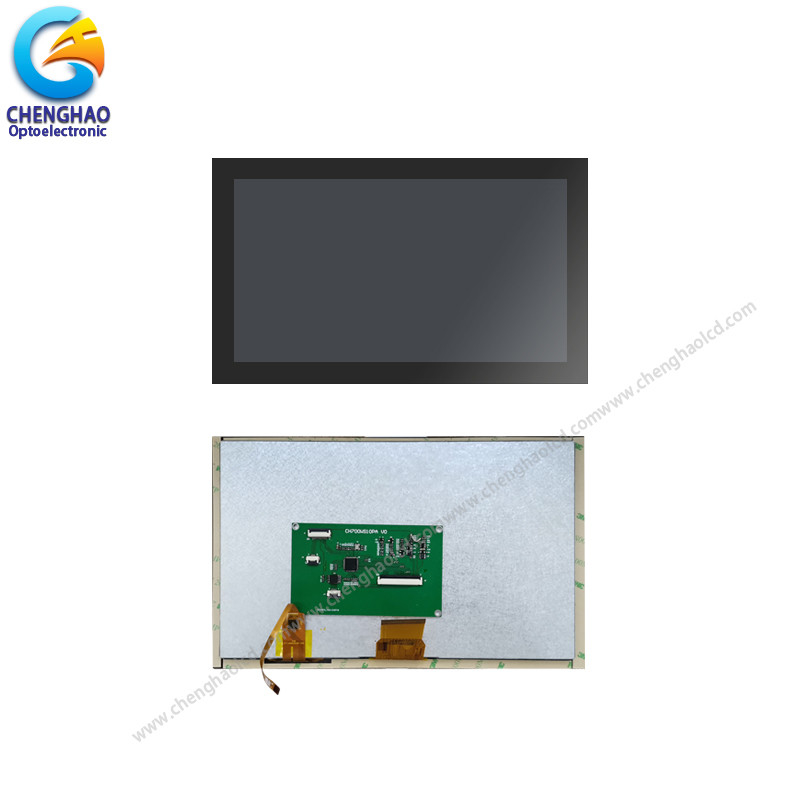

10.1 Inch Full Viewing Angle Color Touch LCD Display 1024x600 Resolution 0


4. Qucik Detail


LCD type:10.1’’TFT + CTP
Warranty:one year
Dot arrangement: 1024(RGB)×600 dots
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction: 80/80/80/80
CTP type: G+G
Surface Treatment: 6H
CTP Driver IC: GT911
Lcd supplier: Chenghao Optoelectronic
Module size: 252.00(W)×155.5.00(H)×10.75(T) mm
TFT size: 235.00(W)×143.00(H)×5.0(T) mm
Active area: 222.72(W)×125.28(H) mm
LENS Viewing area: 223.72(W)×126.28(H) mm
dot pitch: 0.2175(W)×0. 2088(H) mm
Interface TFT:SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 42 White LED
Weight: TBD g


5. Application

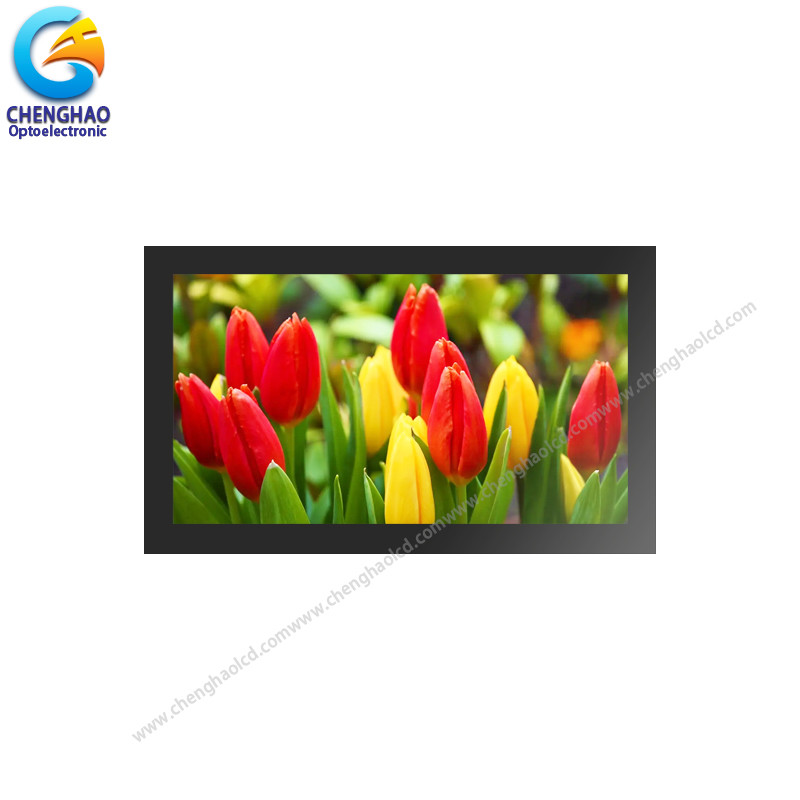

10.1 Inch Full Viewing Angle Color Touch LCD Display 1024x600 Resolution 1



6. FAQ


Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.

Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.

Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .

Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.
