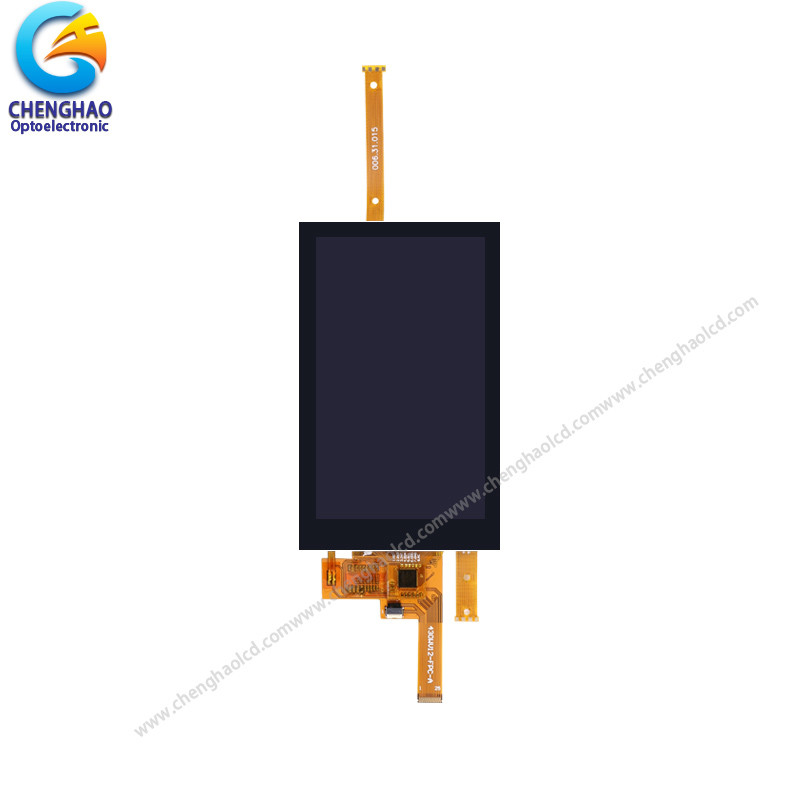

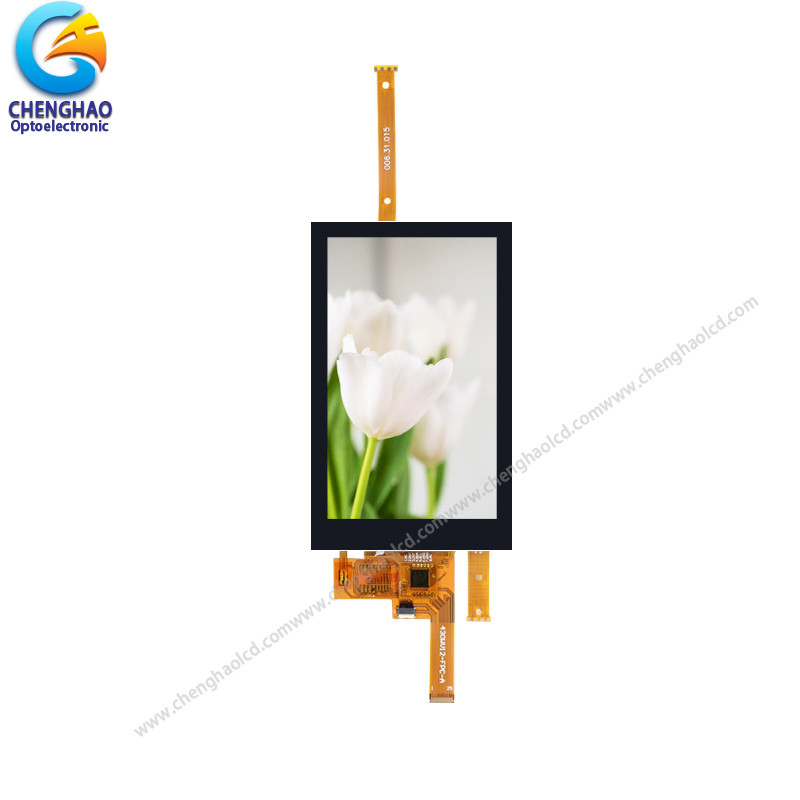

WVGA Small LCD Touch Screen 4.3inch All Viewing Angle IPS TFT Display

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WV12A-CTA

Detail Information

Product Name: WVGA Small LCD Touch Screen Dot Arrangement: 800x480
Outline Dimension: 62.5(W)*109.55(H)*4.0(T)mm Display Area: 56.16(W)*93.6(H)mm
Interface: TFT: MIPI CTP:I2C Luminace: 350cd/m2
Life Time: 20K Hr
High Light:

WVGA Small LCD Touch Screen


MIPI Small LCD Touch Screen


350 cd/m2 IPS TFT display

Product Description

WVGA Small LCD Touch Screen 4.3inch IPS All Viewing Angle TFT


1. Specification


Lcd Type: 4.3 inch TFT+CTP
Viewing Direction: 80/80/80/80
Operating temperature: -30℃~80℃
Storage temperature: 30℃~80℃
Driver IC: ILI9806
Interface type: MIPI
Brightness: 350 CD/


2. Description


Chenghao 4.3 inch tft lcd (CH430WV12A-CTA) is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This 4.3” tft lcd uses MIPI interface with capacitive touch panel and supports multi-touch. Thanks to the IPS display technology, the 4.3” tft lcd allows users to read the screen with a viewing angle close to 80808080 maximum.

If CH430WV12A-CTA cannot fully meet your requirements, we can modify some functional parameters (customization) of the display solution for you. The modifiable contents include FPC shape connection structure, interface definition, touch function removal or replacement (RTP), Brightness modification (Sunlight Readable), etc. You can obtain relevant customized information by consulting our online customer service.


3. Drawings


(1) Display Type : 4.3" TFT
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC : ILI9806
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

WVGA Small LCD Touch Screen 4.3inch All Viewing Angle IPS TFT Display 0




4. Quick Detail


* LCM name: WVGA Small LCD Touch Screen

* Model: CH430WV12A-CTA
* Lcm Size.:  4.3 inch
* Display Type:  4.3” TFT+CTP
* Display colors:  16M
* Number of Dots: 480*3(RGB)*800
* Viewing Angle: 80/80/80/80

* Driver IC: ILI9806

* Display mode: IPS/Transmissive/ Normally Black
* Module size: 62.5(W)*109.55(H)*4.0(T) mm

* TFT Active Area: 56.16(W)*93.6(H) mm

* Luminance: 350 cd/m2

* Contrast: 800

* TFT Interface Type: MIPI

* Pin Number:  25
* Backlight type : White LED
   Backlight:  8 LED


5. Application


WVGA Small LCD Touch Screen 4.3inch All Viewing Angle IPS TFT Display 1



6. FAQ


Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.

Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production

Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.

Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.

Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.

Q: How can I trust your product quality?
A:The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
