Square TFT LCD Capacitive Touchscreen 320X320 24 Pin With ST7796 IC

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH154HV05A-CT

Detail Information

Product Name: TFT LCD Capacitive Touchscreen Resolution: 320x320
Operating Temperature: -20 ~ +70 ℃ Storage Temperature: -30 ~ +80 ℃
Back Light: 3 White LED Weight: TBD G
Display Mode: IPS
High Light:

Square TFT LCD Capacitive Touchscreen


ST7796 IC TFT LCD Capacitive Touchscreen


TFT LCD IPS Capacitive Touchscreen

Product Description

Square TFT LCD Capacitive Touchscreen 320*320 With ST7796 IC


1. Specification


Part No. CH154HV05A-CT
Size 1.54 inch
Resolution 320*320
Outline Dimension
40.2(W)×40.5(H)×4.1(T) mm
Active Area
27.744(W)×27.744(H)  mm
4-lines_8bit SPI
IC ST7796
Working temperature -20°C ~ 70°C
Storage temperature -20°C ~ 70°C
Delivery Time 10 days


2. Description


Chenghao mini touch display (CH154HV0A-CT) is a small size color touch LCD display with a display area of 1.54 inch diagonal length, a resolution of 320*320 dot, and supports 4-lines_8bit SPI interface. This 320x320 tft lcd is not only an IPS full viewing angle display (80/80/80/80), but also a wide temperature display (-20~+70℃).

If this small-sized color LCD screen cannot fully meet your project needs, we can also modify some parameters of this color LCD screen according to your project needs. The content that can be modified includes the shape structure of the FPC, interface definition, Backlight brightness, screen surface treatment, logo printin


3. Drawings


(1) Display Type : 1.54 inch TFT+TP
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC : ST7796
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

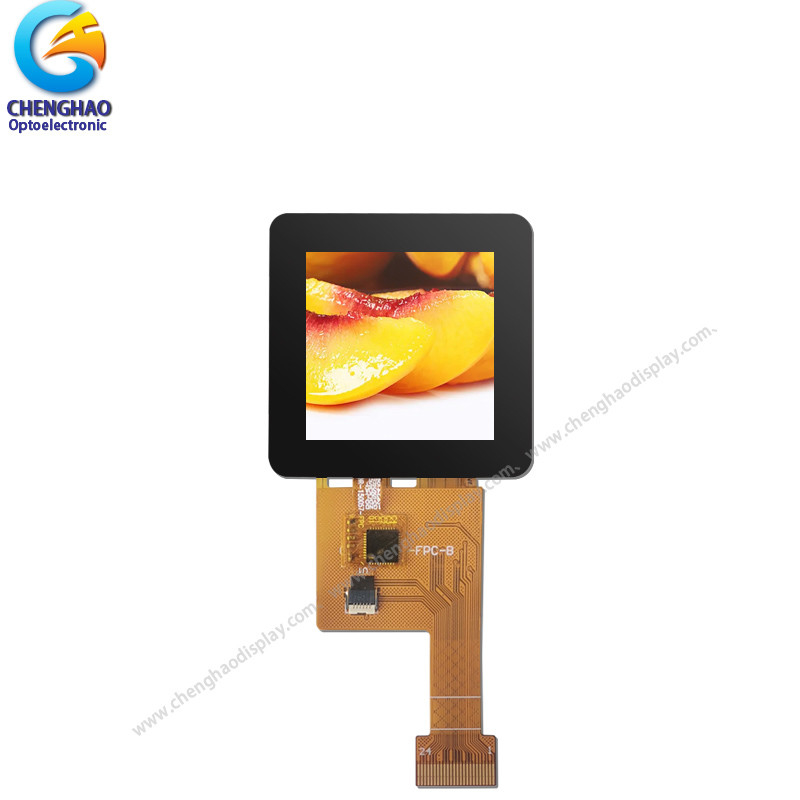

Square TFT LCD Capacitive Touchscreen 320X320 24 Pin With ST7796 IC 0



4. Quick Detail


* LCM name: Square TFT LCD Capacitive Touchscreen

* Model: CH154HV05A-CT
* Lcm Size.: 1.54 inch
* Touch type: Capacitive touch panel
* Display Type: 1.54” TFT+CTP
* Display colors: 262K/65K
* Number of Dots: 320x320
* TFT Dot Pitch : 0.0867(W)×0. 0867(H) mm
* Viewing Angle: 80/80/80/80
* Driver IC: ST7796
* Display mode: IPS/ Transmission/ Normally Bllack
* Module size: 40.2(W)×40.5(H)×4.1(T) mm
* TFT Active Area: 27.744(W)×27.744(H) mm
* Luminance: 400 nit
* Contrast: 800:1
* TFT Interface Type: 4-line_8bit SPI

* TP Interface Type: I2C

* Pin Number:  24 pins
* Backlight type and color: LED backlight/white
   Backlight:  6 LED


5. Application

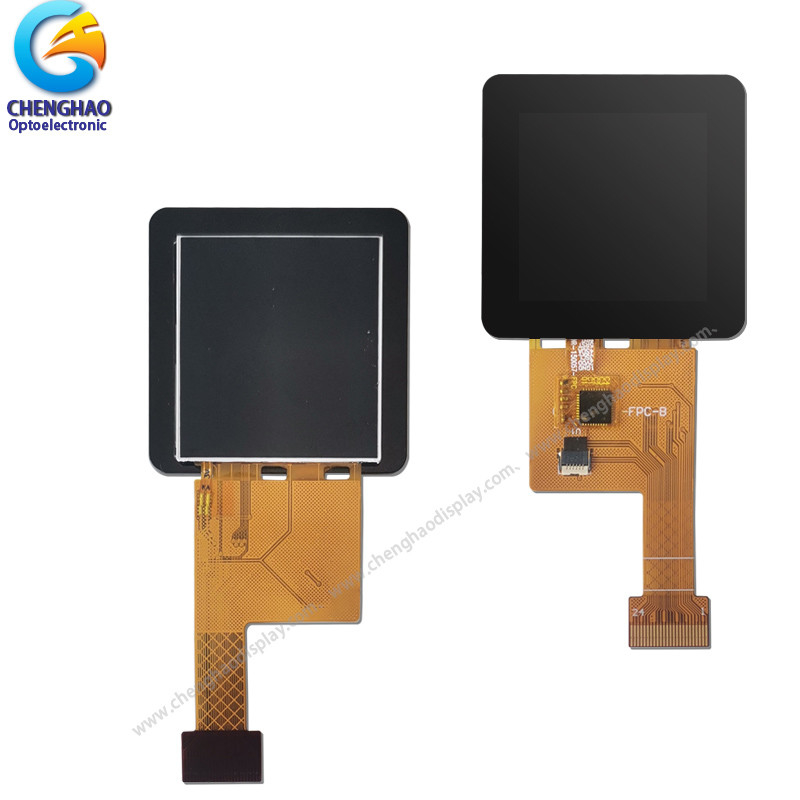

Square TFT LCD Capacitive Touchscreen 320X320 24 Pin With ST7796 IC 1


6. FAQ


Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.

Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production

Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.

Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.

Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply

Q: How can I trust your product quality?
A:The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
