5" WVGA Small Color LCD Display Wide Temperature With Resistive Touch Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500WV03A-T

Detail Information

Product Name: WVGA Small Color Lcd Display Active Area: 108(W)×64.8(H) Mm
Dot Pitch: 0.135(W)×0.135(H) Mm Interface: 24-bit Parallel RGB Interface
Operating Temperature: -20 ~ +70 ℃ Storage Temperature: -30 ~ +80 ℃
Weight: TBD G
High Light:

WVGA Small Color Lcd Display

,

250 cd/m2 Small Color LCD Display

,

250 cd/m2 resistive touch screen display

Product Description

5" WVGA Small Color Lcd Display Wide Temperature With Resistive Touch Panel



1. Specification



MODEL NO. CH500WV03A-T
Lcd type 5.0 inch TFT
Resolution  800*480
Viewing Direction 12:00
Lcd size
120.7(W)×75.8(H)×4.2(T)  mm
TFT Active area
108(W)×64.8(H) mm
TFT Dot pitch
0.135(W)×0.135(H) mm
Interface RGB
Backlight Type 12 pcs White LED
Luminace 250 cd/m2


2. Description


ChengHao Display model CH500WV03A-T is a touch screen displays with 24-bit Parallel RGB Interface with a lifespan of up to 20K Hr and a one-year warranty. There is a color display area with a diagonal length of 4.3 inches of this touch screen displays, which can display video pictures of 800×3(RGB)×480 pixels.
CH500WV03A-T is a wide temperature display, which can work in the environment where the temperature is in the range of -20~+70 ℃. In addition, the CH500WV03A-T display solution can be modified and customized according to customer requirements. The customizable content includes FPC design (shape, structure), interface definition, brightness modification, etc.

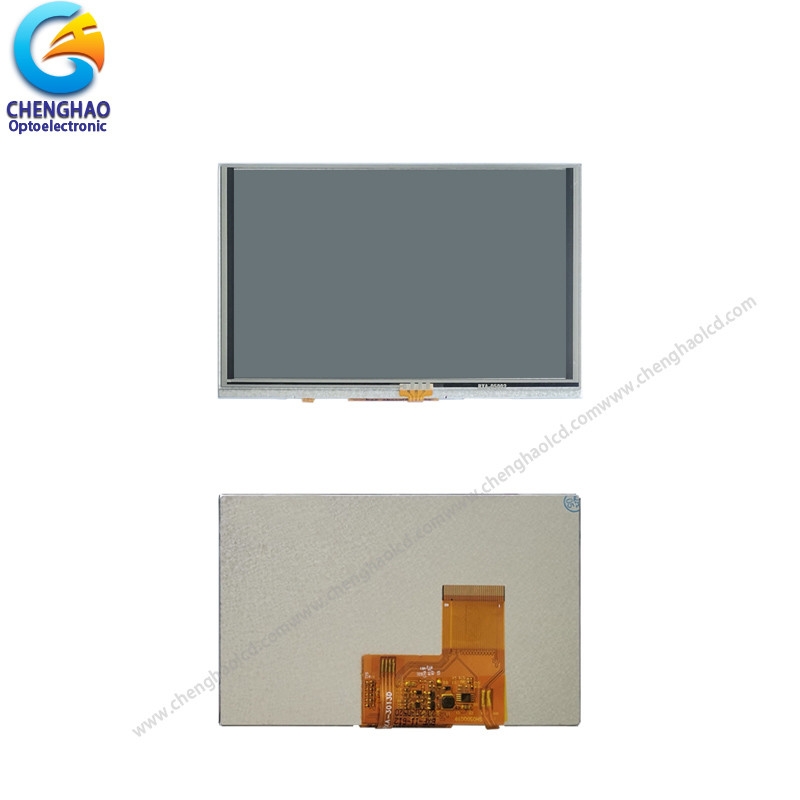

5" WVGA Small Color LCD Display Wide Temperature With Resistive Touch Panel 0



3. Drawing


 5" WVGA Small Color LCD Display Wide Temperature With Resistive Touch Panel 1






4. Quick Detail


Product Name:  WVGA Small Color Lcd Display

Model No: CH500WV03A-T

With or Without TP: with

Support TP Type: RTP

LCD type: 5.0 inch TFT

Dot arrangement: 800*(RGB)*480

Color filter array: RGB vertical stripe

Display mode: TN/ Transmissive / Normally White

Viewing Direction: 12:00

TFT Driver IC: ******

Color:16M

Contrast:500:1

Module size: 120.7(W)×75.8(H)×4.2(T) mm

TFT Active area: 108(W)×64.8(H) mm

TFT Interface:  24-bit Parallel RGB Interface

FPC Pin Number: 40 pin

Operating temperature: -20 ~ +60 ℃

Storage temperature: -30 ~ +70 ℃

Back Light: 12 White LED

Weight:TBD  g





5. Application


5" WVGA Small Color LCD Display Wide Temperature With Resistive Touch Panel 2


6. FAQ


Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.
Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.
Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.
Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.
Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.
Q9: How long is your warranty period?
A: We guarantee the quality for one year.
