7 Inch Resistive Touch Screen 1024X600 Dots Wide Temp TFT LCD Display

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WS03D-T

Detail Information

Product Name: 7 Inch Resistive Touch Screen Module Size: 164.9(W)×100.0(H)×4.78(T) Mm
Active Area: 154.2144(W)×85.92(H) Mm Dot Pitch: 0.1506 (W)×0.1432 (H) Mm
Interface: RGB Operating Temperature: -20 ~ +70 ℃
Storage Temperature: -30 ~ +80 ℃
High Light:

7 Inch Resistive Touch Screen

,

1024X600 Dots Resistive Touch Screen

,

Resistive Touch TFT LCD Display

Product Description

7 Inch Resistive Touch Screen 1024*600 Dots Wide Temp Display



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 7.0’’TFT --
Dot arrangement 1024(RGB)× 600 dots
Driver IC ***** --
Module size
164.9(W)×100.0(H)×4.78(T)
mm
Active area
154.2144(W)×85.92(H)
mm
Dot pitch
0.1506 (W)×0.1432 (H)
mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light White LED In Paralle --
Weight TBD g




2. Description


ChengHao Display model CH700WS03D-T is a 7.0 inch lcd touch screen with 24-bit Parallel RGB Interface and working life up to 20K Hr. There is a 7.0 inch color display area of this lcd touch screen, which can display high-definition video pictures of 1024×3(RGB)×600 pixels. This lcd touch screen is also an industrial-grade color display with a temperature limit of -20°C or +70°C, which can be used in equipment with harsh working environments.

The CH700WS03D-T display solution can be modified and customized according to customer requirements. The modifiable contents include FPC shape structure, interface definition, backlight brightness, touch panel removal or replacement (RTP), screen surface treatment (waterproof, anti-glare), etc.

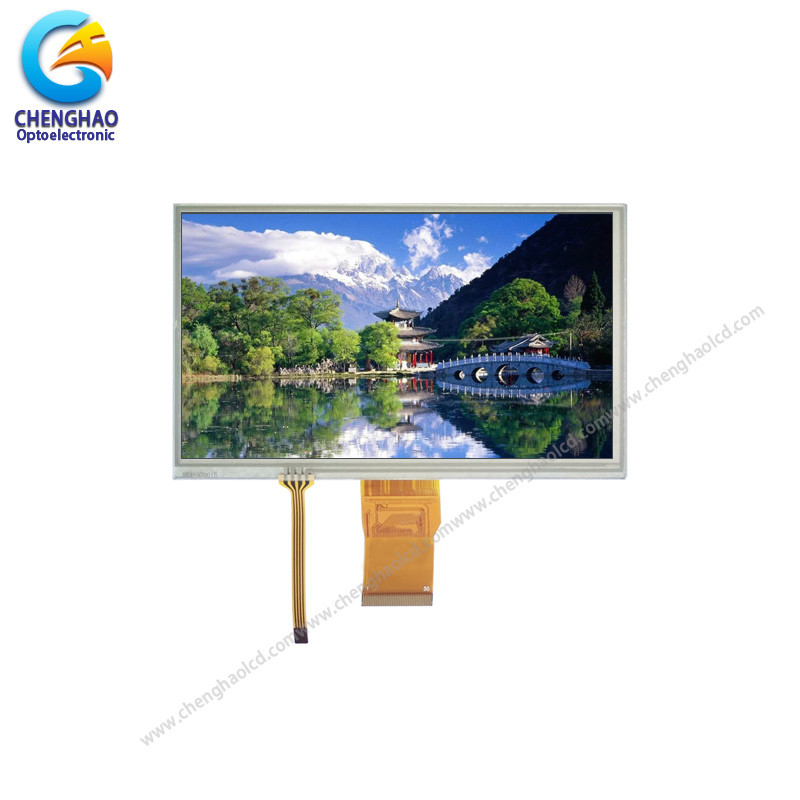

7 Inch Resistive Touch Screen 1024X600 Dots Wide Temp TFT LCD Display 0



3. Drawing

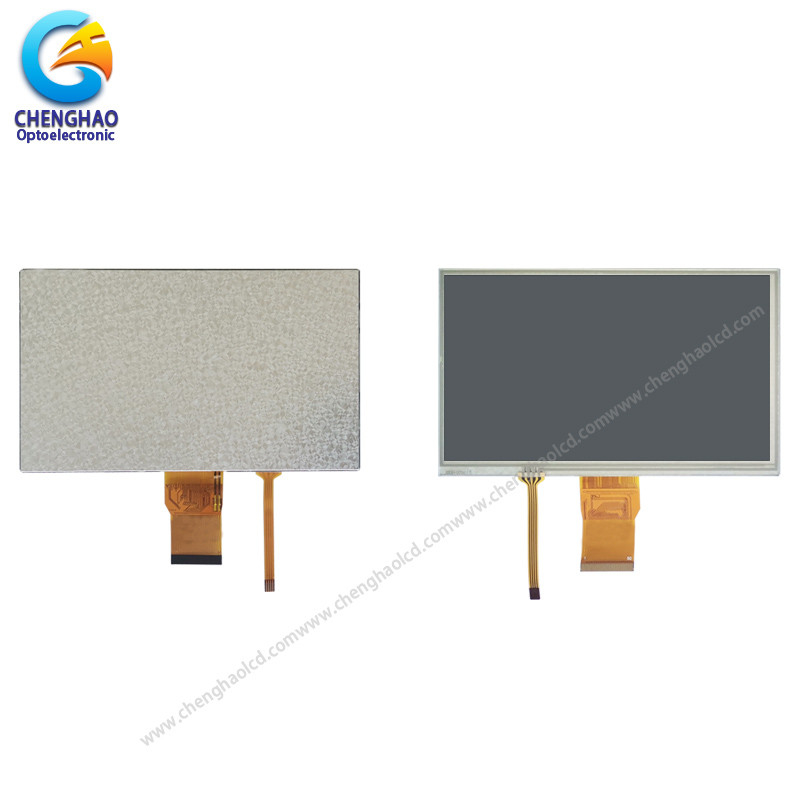

7 Inch Resistive Touch Screen 1024X600 Dots Wide Temp TFT LCD Display 1




4. Quick Detail


Diagonal Display Size:  7.0 inch

Interface Type: 24-bit Parallel RGB Interface

Resolution: 1024x600 dots

With / Without Touch Screen: with

Touch Panel Type: RTP

Active Area Dimensions: 154.2144(W)×85.92(H) mm

Backlight Type: White LED

Display Mode: Transmissive/ Normally White

Dimensions: 164.9(W)×100.0(H)×4.78(T) mm

Display Matrix Technology: TFT

Minimum Operating Temperature: -20°C

Maximum Operating Temperature: +70°C

Brightness: 350 cd/m²

Number of Colours: 16.7 Million

Standards Met: CE, RoHS Compliant

Response Time: ***

Operating Temperature Range: -20 → +70°C

Contrast Ratio: 500

Display Type: 7.0 inch tft+RTP





5. Application


7 Inch Resistive Touch Screen 1024X600 Dots Wide Temp TFT LCD Display 2



6. FAQ


Q:Payment methods?

T/T, Paypal and Western union etc.

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.



Q: What is the lead time of the products?

A:Samples in stock will be sent within 3 days after payment.

Two to Four weeks for mass production



Q:How long is the warranty period?

A:Generally the warranty period is one year. It depends on different products.



Q:What is the Product MOQ?

A:Different product has the different MOQ, please contact us sales for detailed information.



Q: What's your after-sale service?

A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.



Q:Can you provide OEM service?

A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply



Q: How can I trust your product quality?



A:The company has advanced the incoming inspection,    on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
