HD Small Touch Screen Display 1024x600 With Resistive Touch Panel

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WS03D-T

Detail Information

Product Name: HD Small Touch Screen Display LCD Type: 7.0”TFT+RTP
Dot Arrangement: 1024×3(RGB)×600 Color Pixel Arrangement: RGB Vertical Stripe
Display Mode: TN / Transmissive / Normally White Viewing Direction: 12 O’clock
Gray Scale Inversion Direction: 6 O’clock
High Light:

ROHS Small Touch Screen Display

,

12 o' Clock Small Touch Screen Display

,

12 o' Clock small touchscreen display

Product Description

HD Small Touch Screen Display 1024x600 With Resistive Touch Panel



1. Specification



Type: TFT
Viewing Direction: 12 o' Clock
Operating temperature: -30℃~80℃
Storage temperature: -30℃~80℃
Driver IC: *****
Interface type:

RGB

Brightness: 350 CD/㎡



2. Description



ChengHao Display model CH700WS03D-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a touch panel, a TFT LCD panel, a driving IC, a back-light and FPC.

There is a 7.0 (Horizontal screen) inch diagonally measured active display area with 1024×3(RGB)×600 resolution of this TFT LCD.

The driver used for this project is the CH700WS03D-T or compatible and can display 16M colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings



Notes:
(1) Display Type : 7.0 inch TFT+RTP
(2) Viewing Direction :  12:00
(3) Lcd Drive IC : ###
(4) Polarizer Mode : Transmissive/ Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

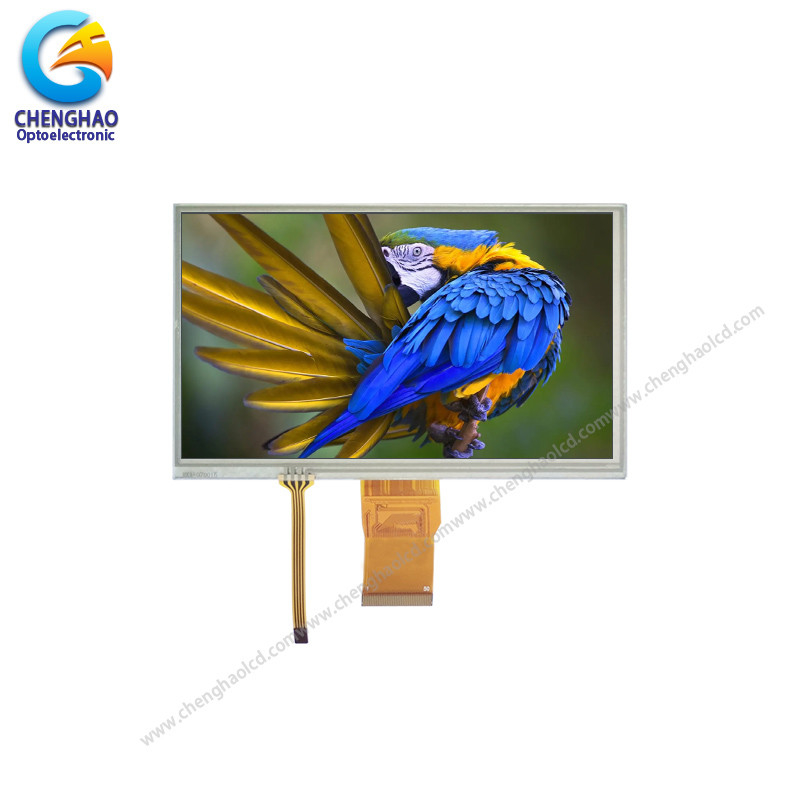

HD Small Touch Screen Display 1024x600 With Resistive Touch Panel 0







4. Quick Detail



* LCM name: HD Small Touch Screen Display

* Model: CH700WS03D-T
* Lcm Size.: 7.0 inch
* Display Type: 7.0 "TFT
* Display colors: 16.7M
* Number of Dots: 1024*600
* Viewing Angle:  12:00

* Driver IC: ###
* Display mode: TN/Transmissive/ Normally White
* Module size: 164.9(W)×100.0(H)×4.78(T) mm

* TFT Active Area: 154.2144(W)×85.92(H) mm

* Luminance: 350 cd/m2

* Contrast:  500:1

* TFT Interface Type:  RGB

* Pin Number:  50 pin
* Backlight type : 27 White LED

* Luminance: 350 cd/m2



5. Application

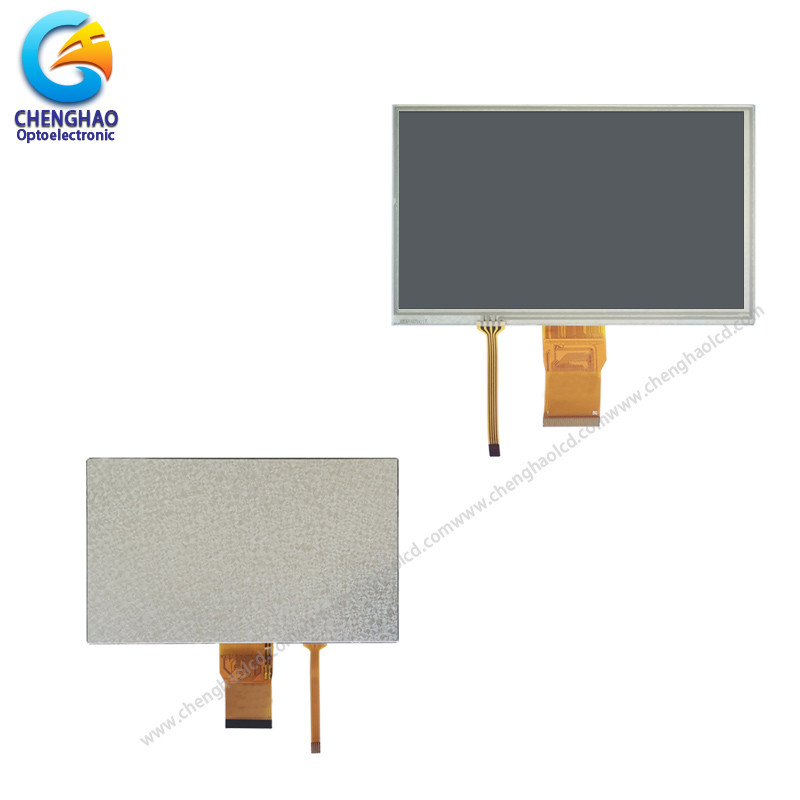

HD Small Touch Screen Display 1024x600 With Resistive Touch Panel 1
