1024x600 High Resolution LCD Screen Wide Temperature 7.0 Inch LCD Display

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WS12A
Document: Product Brochure PDF

Detail Information

Product Name: 1024x600 High Resolution Lcd Screen LCD Type: 7.0”TFT
Dot Arrangement: 1024×3(RGB)×600 Dots Color Pixel Arrangement: RGB Vertical Stripe
Display Mode: IPS / Transmissive / Normally Black Viewing Direction: 80/80/80/80
Interface: 24-bit Parallel RGB Interface
Highlight:

1024x600 High Resolution Lcd Screen

,

400 nits High Resolution Lcd Screen

,

IPS TFT 7.0 inch LCD display

Product Description

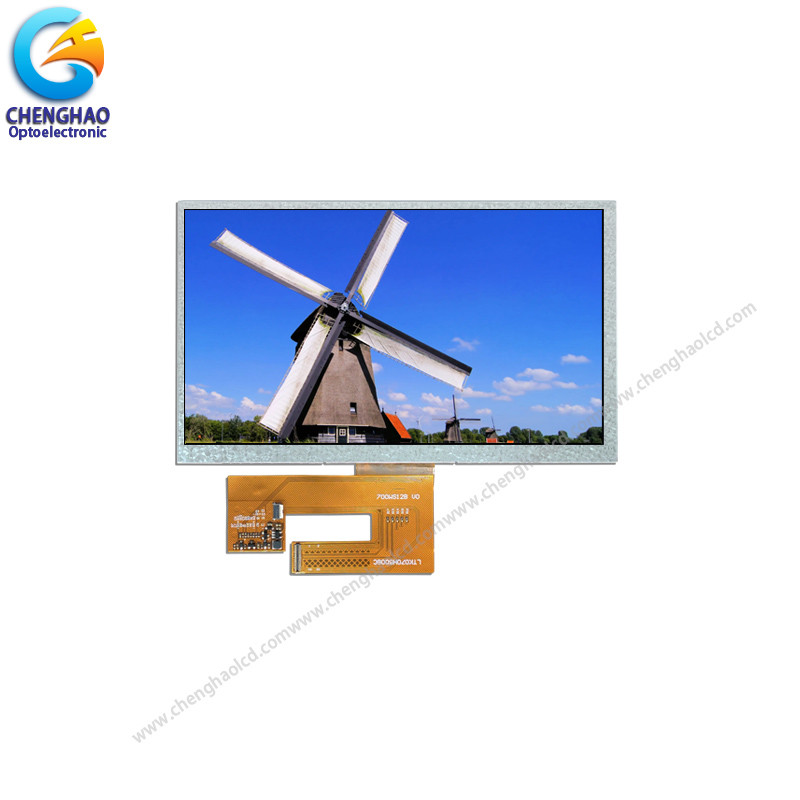

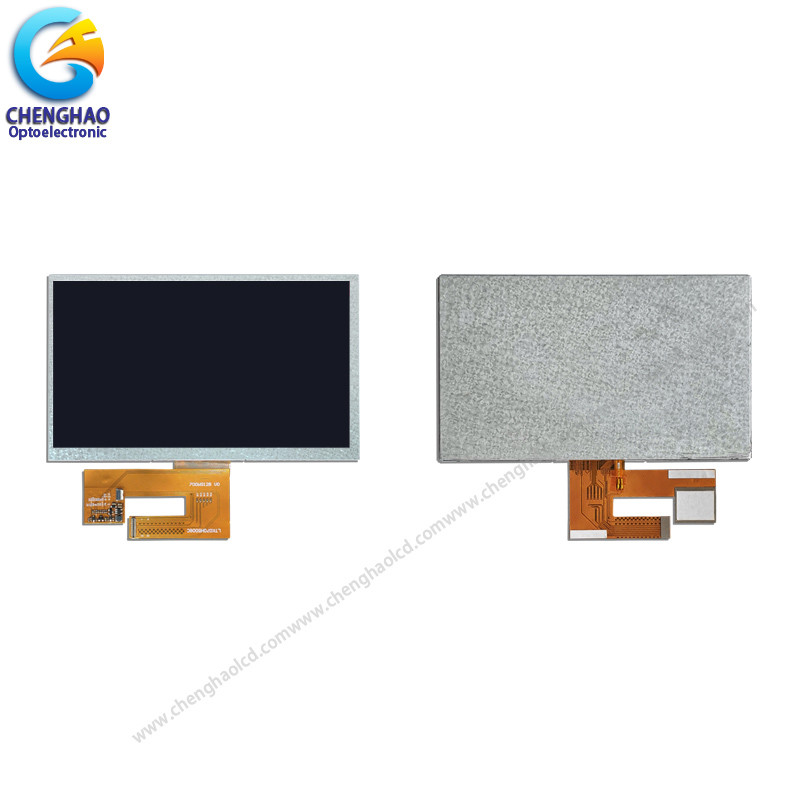

1024x600 High Resolution Lcd Screen 7.0 Inch Wide Temperature LCD Display



1. Specification



Model Name CH700WS12A
Module type 7 inch IPS TFT
Number of Dots 1024*3(RGB)*600
Viewing Direction All Viewing Direction
Outline Dimension 164.9(W)*100.0(H)*3.5(T)mm
Display Area 154.2144(W)*85.92(H)mm
Pixel Pitch 0.1506(W)*0.1432(H)mm
Interface RGB
Luminace 400 nits



2. Description





ChengHao Display model CH700WS12A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It mainly contains an lcd panel, a driver IC, a backlight and FPC.

There is a 7.0 inch color active area of this tft lcd that can display 1024×3(RGB)×600 pixel high-definition video pictures, allowing users to read the screen with 80/80/80/80 extreme viewing angles. Support 24-bit Parallel RGB Interface.

The CH700WS12A display solution can customize the backlight components and FPC according to the actual needs of customers. In addition, we have many display solutions similar to this 7” high-definition TFT lcd for you to choose from, you can get more information by sending an email or directly consulting our online customer service.







3. Drawings



Notes:
(1) Display Type : 7.0 inch TFT
(2) Viewing Direction : All Viewing Direction

(3) Lcd Drive IC : ---
(4) Polarizer Mode : Transmissive/Normally White
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



1024x600 High Resolution LCD Screen Wide Temperature 7.0 Inch LCD Display 0





4. Quick Detail



LCM number : CH700WS12A
Resolution : 1024*600
Dot pitch : 0.1506(W)*0.1432(H)mm
Outline dimension : 164.9(W)*100.0(H)*3.5(T)mm
Viewing Area : 154.2144(W)*85.92(H)mm
Active Area : 56.16(W)*93.6(H) mm
View angle| : R/L/U/D 80/80/80/80(Deg)
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : RGB
Brightness : 400 (cd/m2)
Tft driver IC : ****
Contrast ratio : 800
Backlight Type : LED
Response time : ******(ms)
Display mode : IPS, Normally Black, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 16.7M
Backlight lifetime : 30k hrs(Min.)
With/without Touch Panel:Without








5. Application



1024x600 High Resolution LCD Screen Wide Temperature 7.0 Inch LCD Display 1





6. FAQ



Q1.What is the minimum order quantity for your products?



A1.Minimum order quantity starts from ONE piece .



Q2. How can we get samples from you ?



A2.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to

charge boot samples cost and post courier freight.



Q3.When will you send the parts to me?



A3.We will send the parts to you within 3-5 workdays after receiving your payment.



Any other more questions, please feel free to contact us. We are always at your service !
