WVGA 800x480 Resolution TFT LCD Display 7" 50 Pin RGB Interface With SSD1963

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV01B-PD

Detail Information

Product Name: WVGA 800x480 Resolution TFT LCD Display Dot Arrangement: 800*480
Backlight Type And Color: White LED TFT Interface: RGB
Display Model: TN/ Normally White Backlight: 500 Nits
Contrast: 500 TFT Color: 16.7M
High Light:

WVGA TFT LCD Display

,

800x480 Resolution TFT LCD Display

,

SSD1963 TFT LCD Display

Product Description

WVGA 800x480 Resolution TFT LCD Display 7" 50 Pin RGB Interface With SSD1963



1. Specification

Part No. CH700WV01B-PD
Size 7.0 inch
Resolution 800*480(WVGA) dot
Outline Dimension 186.8*109*13.4 mm
Active Area 154.08*85.92 mm
Interface RGB
IC SSD1963
FPC Number 50pin
Working temperature -20°C ~ 70°C
Storage temperature -20°C ~ 80°C
Delivery Time 10 days



2. Description



Chenghao Optoelectronic CH700WV01B-PD is a 7.0 inch TN tft lcd module with RGB interface. This tft lcd module includes components such as Driver board, iron frame, tft lcd panel, driver IC, back light (BL) and FPC.

This Driver board contains the program to drive the tft lcd to work normally, and is fixed under the 7 inch tft display by an iron frame.

The tft lcd panel has a 7.0 inch active display area that can display 800x (RGB) x480 resolution images.

The driver IC is fixed on the tft lcd glass panel, supports RGB interface, and can display 16M colors.

The Luminance of the back light is 500 cd/m2, which makes the 800x480 tft display sunlight readable.

FPC can be modified and customized according to customer requirements, and the customized content includes shape structure, interface definition, etc.



3. Drawings

Notes:
(1) Display Type : 7inch TFT

(2) Viewing Direction : 12 O'clock
(4) Polarizer Mode : Transmissive/Normally White

(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

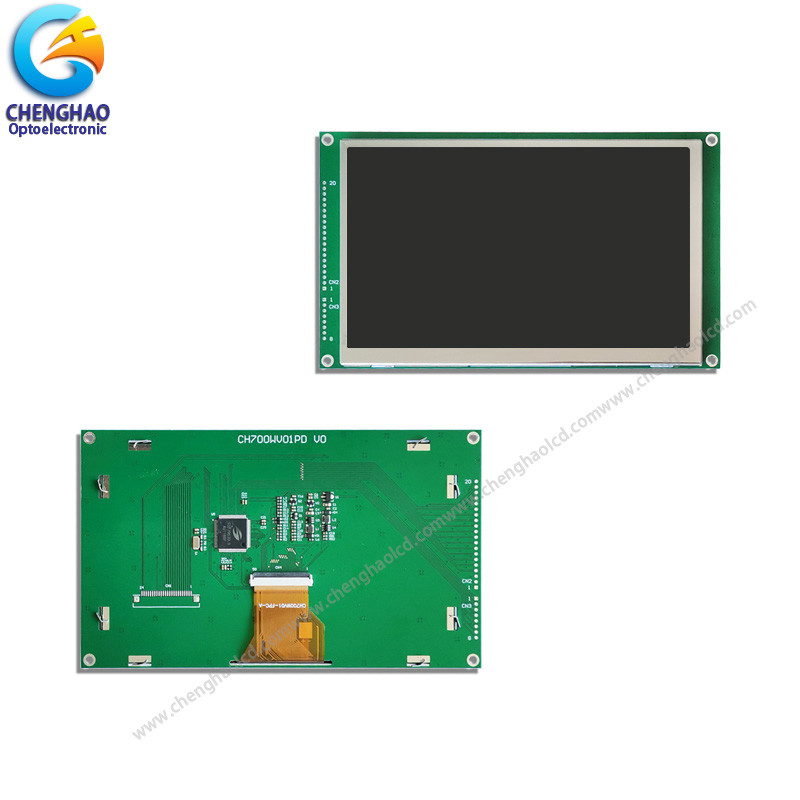

WVGA 800x480 Resolution TFT LCD Display 7" 50 Pin RGB Interface With SSD1963 0



4. Qucik Detail



LCM number : CH700WV01B-PD
Resolution : 800x480(WVGA) dot
Dot pitch : ----
Outline dimension : 186.8*109*13.4 mm
Active Area : 154.08*85.92 mm
View angle: 12:00
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : RGB
Brightness  : 500 cd/m2
Tft driver IC : SSD1963
Contrast ratio : 500
Backlight Type : white led
Display mode :  Tn/transmission/ Normally white
Operate temperature : -20~ +70(°C)
Storage temperature  : -30~ + 80(°C)
Display Colors : 16.7M
Backlight lifetime : 20k hrs(Min.)



5. Application



WVGA 800x480 Resolution TFT LCD Display 7" 50 Pin RGB Interface With SSD1963 1









6. FAQ



Q1: Do you testing the products before shipment?

A: we tested every prodcuts quality before send out .

Q2: What is your payment methods ?

A: T/T,Paypal,West Union and so on .

Q3:What's the lead time?Sample order is available?

A: lead time : 7-15 working days. We don’t have MOQ, Sample order is ok.

Q4:Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings design , we can also build the molds.

Q5. What is your terms of packing?

A: Generally, we pack our goods in standard package , also if you have legally registered patent, we can pack the goods in your branded boxes.
