HD IPS TFT Display 4.3 Inch 1280x720 Resolution With LVDS Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430HD01A

Detail Information

Product Name: 4.3 Inch HD IPS TFT Display OUTLINE DIMEMSIONS: 106.7(W ) X66.1(H) X2.8(T) Mm
High Light:

IPS TFT Display 4.3 Inch


IPS TFT Display 1280x720


LVDS Interface 4.3 inch tft lcd display

Product Description

HD IPS TFT Display 4.3 Inch 1280x720 Resolution With LVDS Interface


1. Specification


LCD type 4.3” --
Dot arrangement 1280x720 dots
Driver IC ****** --
Module size
106.7(W ) x66.1(H) x2.8(T)
Active area
97.536(W) x54.864(H)
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light  12 pcs White LED --
Weight TBD g

2. Description

CH430HD01A is a high-definition LCD screen designed and mass-produced by Chenghao Optoelectronic to meet market demand. It includes a tft lcd panel, a driver IC, a backlight and FPC components.

This tft lcd panel has a display area measuring 4.3 inch diagonally and can display 1280x720 resolution HD video animation. At the same time, due to the adoption of IPS display technology, the 4.3 HD tft display has a full viewing angle of 80/80/80/80, which allows users to obtain a better viewing angle experience.

The back light is also another highlight of CH430HD01A. Since 12 pcs white is used as the light source in the Back light module, the luminance of this module reaches more than 1000 cd/m2, so the HD ips tft lcd can be read in sunlight.

The driver IC is firmly attached to the tft lcd glass panel, and uses the LVDS interface to interconnect with external devices. When inputting RGB signals, the driver IC can drive the module to display 16M colors.

The FPC can be customized according to customer requirements.

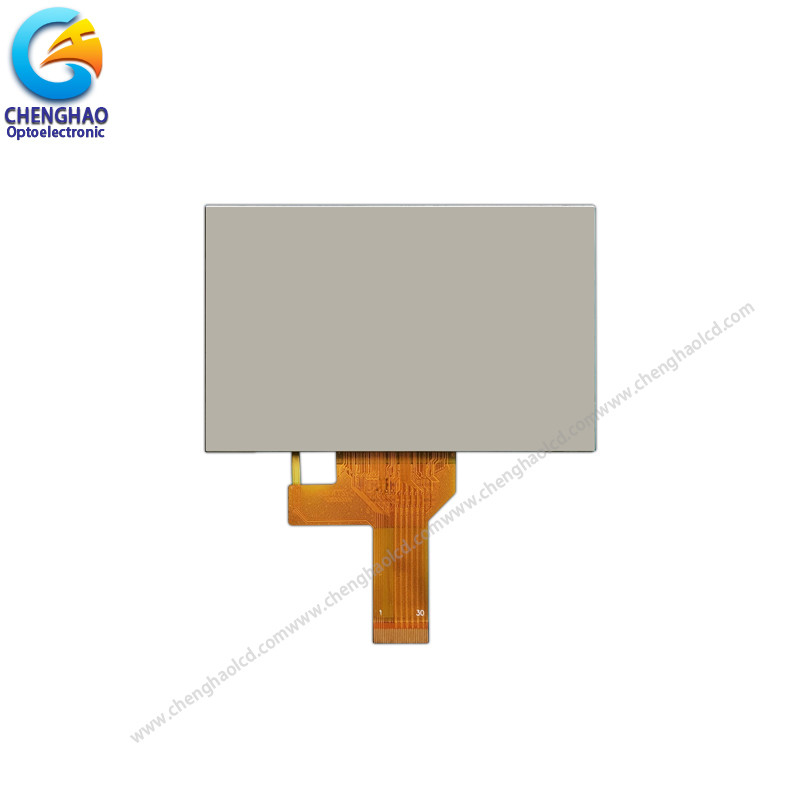

HD IPS TFT Display 4.3 Inch 1280x720 Resolution With LVDS Interface 0


3. Drawing

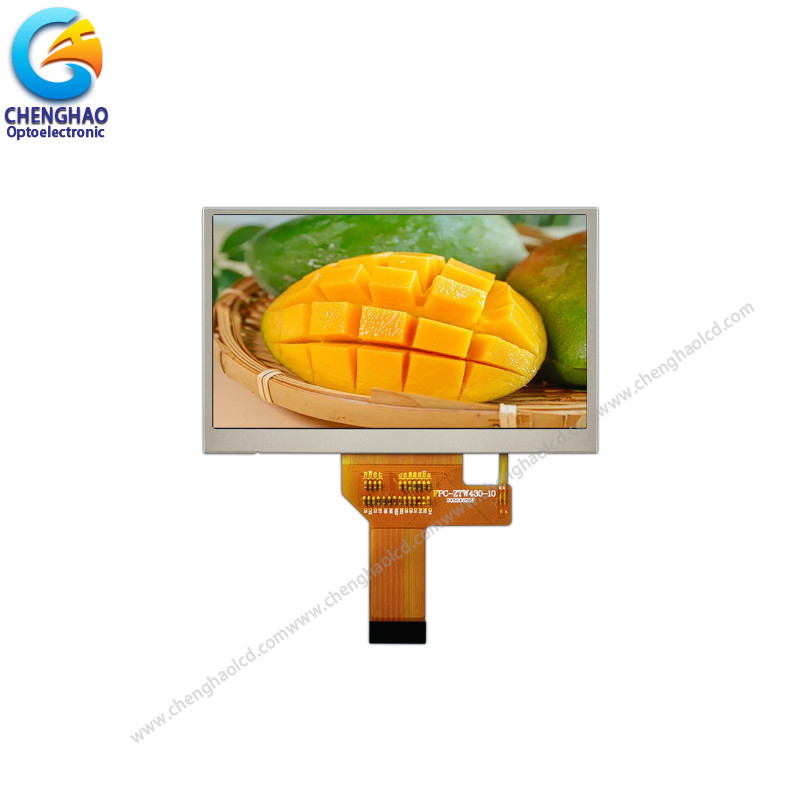

HD IPS TFT Display 4.3 Inch 1280x720 Resolution With LVDS Interface 1





4. Quick Detail

Product Name:HD IPS TFT Display 4.3 Inch 1280x720 Resolution With LVDS Interface

Model No:CH430HD01A

With or Without TP:No

Support TP Type:CTP,RTP

LCD type: 4.3 inch TFT

Dot arrangement:1280*(RGB)*720

Color filter array: RGB vertical stripe

Display mode: IPS / Transmissive / Normally Black

Viewing Direction: 80/80/80/80

TFT Driver IC: ******



Module size:106.7(W ) x66.1(H) x2.8(T) mm

TFT Active area:97.536(W) x54.864(H) mm

TFT Interface: LVDS

FPC Pin Number:30

Operating temperature: -20 ~ +60 ℃

Storage temperature: -30 ~ +70 ℃

Back Light: 12 White LED

Weight:TBD  g



5. Application

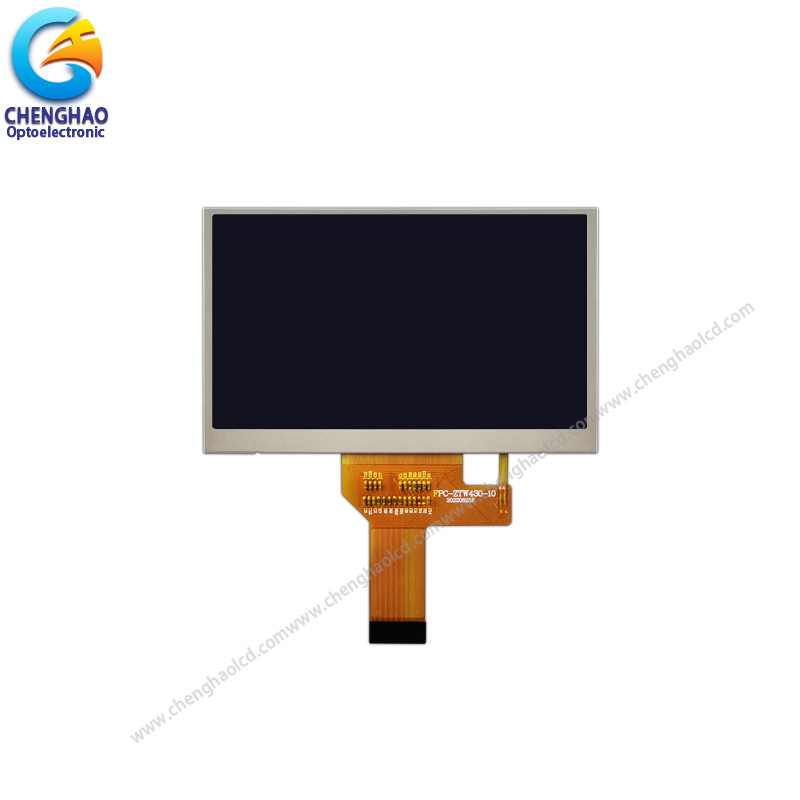

HD IPS TFT Display 4.3 Inch 1280x720 Resolution With LVDS Interface 2


6. FAQ

Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.

Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.

Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .

Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.

Q9: How long is your warranty period?
A: We guarantee the quality for one year.
