4.0 Inch High Brightness TFT Display 480x800 Resolution With ST7701 IC

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV22A

Detail Information

Product Name: High Brightness TFT Display Module Type: 4.0"TFT
Display Mode: IPS / Transmissive / Normally Black Number Of Dots: 480*3(RGB)*800
Viewing Direction: ALL Module Size: 57.140(W)*96.85(H)*1.83(T)mm
TFT Active Area: 51.84(W)*86.4(H)mm Interface: MIPI
High Light:

4.0 Inch High Brightness TFT display

,

MIPI Interface High Brightness TFT display

,

ST7701 IC TFT LCD Display

Product Description

High Brightness TFT Display 4.0 Inch 480x800 Resolution With ST7701 IC



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 4.0”TFT --
Dot arrangement 480*800 dots
Driver IC ST7701 --
Module size
57.14(W)×96.85(H)×1.83(T)
mm
Active area
51.84(W)×86.4(H)
mm
Dot pitch
0.108(W)×0.108(H)
mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light  White LED --
Weight TBD g


2. Description


  ChengHao Display model CH400WV22A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

  This TFT LCD has a 4.0 (Vertical screen) inch diagonally measured active display area with 480*800 resolution.

  The driver used for this project is the ST7701S and can display 16M colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 2-lane_MIPI DSI interface.

It is worth mentioning that the CH400WV22A adopts IPS TFT display technology and has an ultra-wide viewing angle of 80/80/80/80, allowing users to obtain a better viewing experience.

  In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC  structure, interface definition, etc.



  RoHS Compliance & Halogen Free.

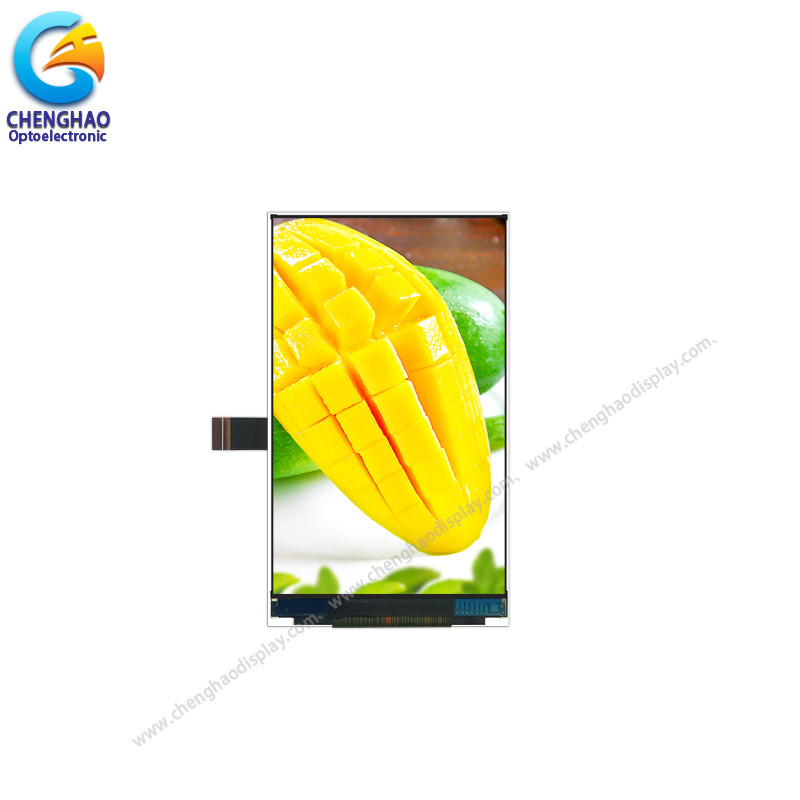

4.0 Inch High Brightness TFT Display 480x800 Resolution With ST7701 IC 0



3. Drawing




4.0 Inch High Brightness TFT Display 480x800 Resolution With ST7701 IC 1








4. Quick Detail


Product Name: High Brightness TFT Display 4.0 Inch 480x800 Resolution With ST7701 IC

Model No: CH400WV22A

With or Without TP: without

Support TP Type: CTP,RTP

LCD type: 3.97”TFT

Dot arrangement: 480(RGB)×800 dots

Color filter array: RGB vertical stripe

Display mode: IPS / Transmissive / Normally Black

Viewing Direction: ALL

TFT Driver IC: ST7701S

Color: 16M

Contrast: 800:1

Module size: 57.14(W)×96.85(H)×1.83(T) mm

TFT Active area: 51.84(W)×86.4(H) mm

Dot pitch: 0.108(W)×0.108(H) mm

TFT Interface: 2-lane_MIPI DSI

FPC Pin Number: 25

Operating temperature: -20 ~ +60 ℃

Storage temperature: -30 ~ +70 ℃

Back Light: 8 White LED

Weight: TBD g





5. Application

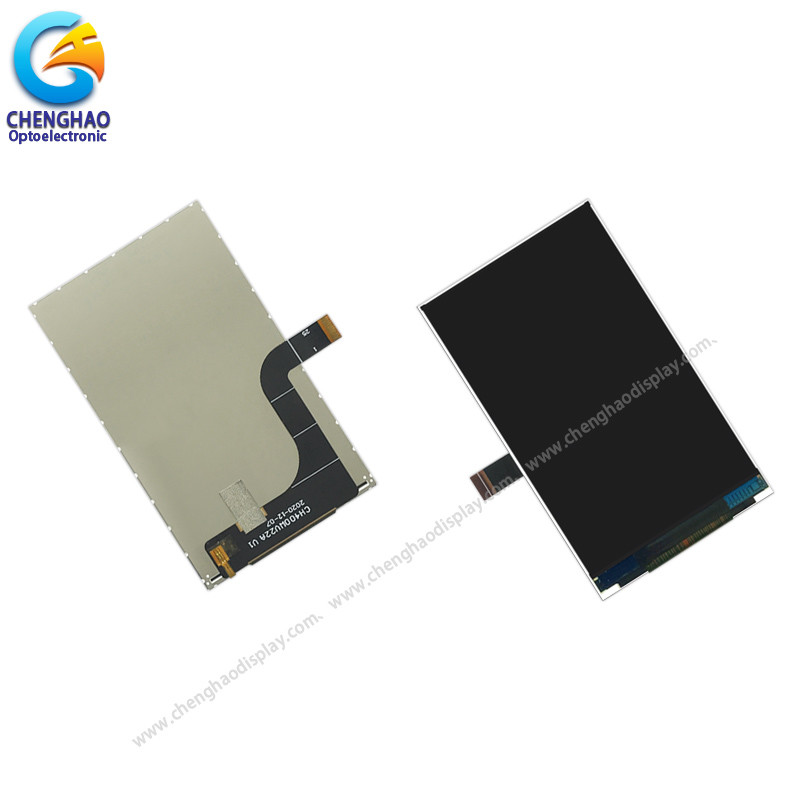

4.0 Inch High Brightness TFT Display 480x800 Resolution With ST7701 IC 2





6. FAQ




Q1: Are you manufacturer ?

A: Yes, we are manufacturer.



Q2: How long is your delivery time?

A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.



Q3: If the products can't work after receiving it,what should I do?

A: We will replace new items for you at once and then we make the judgement for the issue.



Q4: Do you accept OEM design?

A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.



Q5: Do you accept pay 30% in advance?

A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.



Q6: What payment terms you accept?



A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
