2.4 Inch High Brightness TFT Display 240x320 Small LCD Touch Screen

Product Description

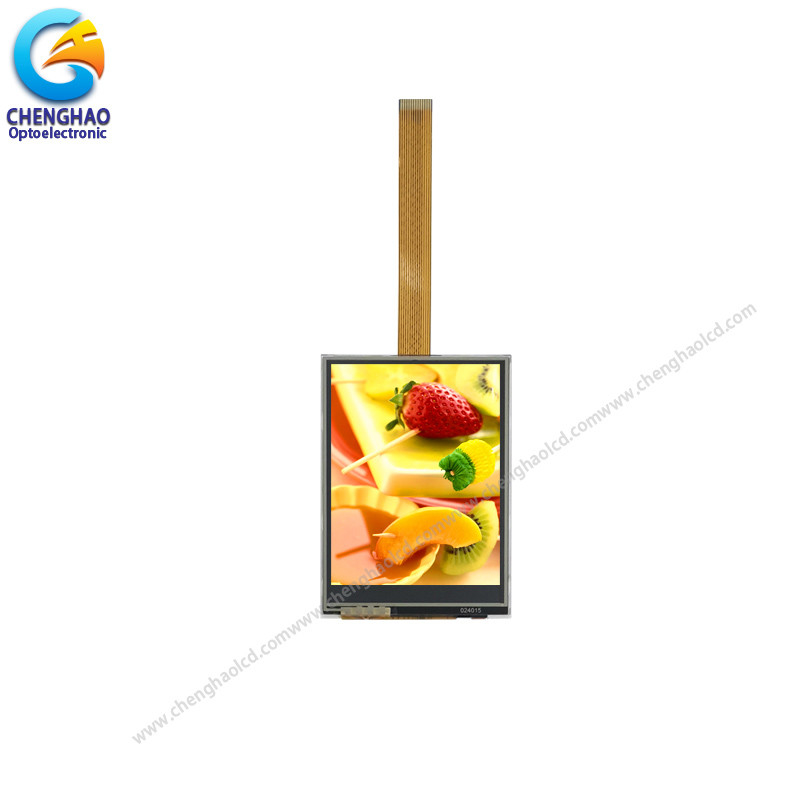

High Brightness TFT Display 2.4 Inch 240x320 Small Lcd Touch Screen

1. Specification

2. Description

ChengHao Display model CH240QV53B-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a touch panel, a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 2.8 (vertical screen) inch diagonally measured active display area with 240*320(RGB) resolution.
This touch panel is a resistive touch panel that uses a usb interface and supports removal or replacement with a capacitive touch panel.
The driver used for this project is the ST7789V and can display 262K/65K colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 4 line 8 bit SPI interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

3. Drawing


4. Quick Detail

LCD type: 2.4”TFT
Dot arrangement:240(RGB)×320 dots
Color filter array: RGB vertical stripe
Display mode:TN / Transmission / Normally White
Viewing Direction: 6 o’clock
Gray Scale Inversion Direction: 12 o’clock
Driver IC: ST7789V
Module size: 42.72(W)×60.26(H)×3.35(T) mm
Active area: 36.72(W)×48.96(H) mm
Dot pitch: 0.153 (W)×0.153 (H) mm
Interface: 4-line_8bit SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 6 White LED In Parallel
Weight: TBD g
