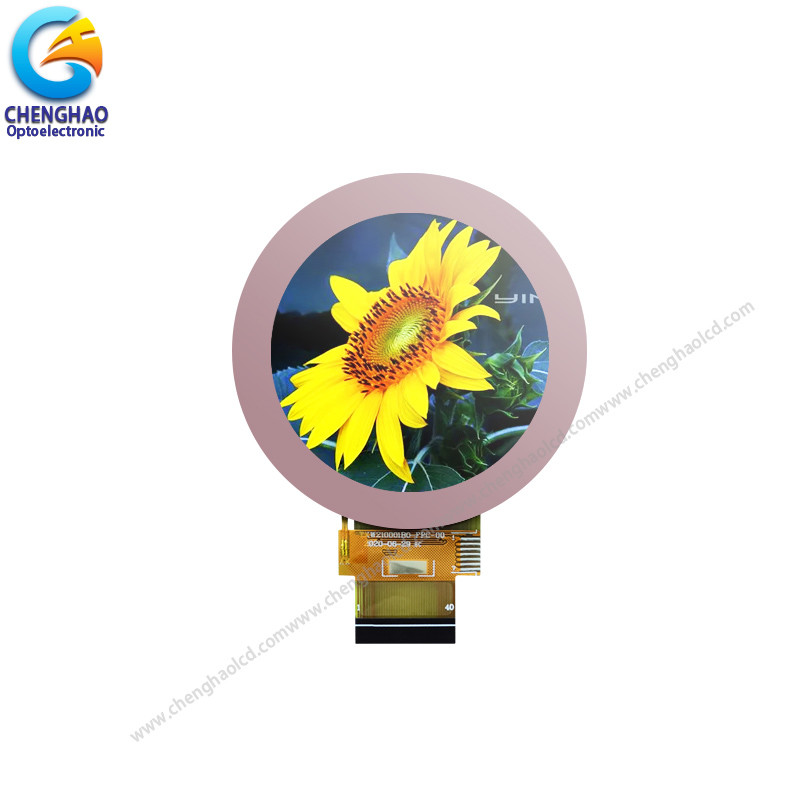

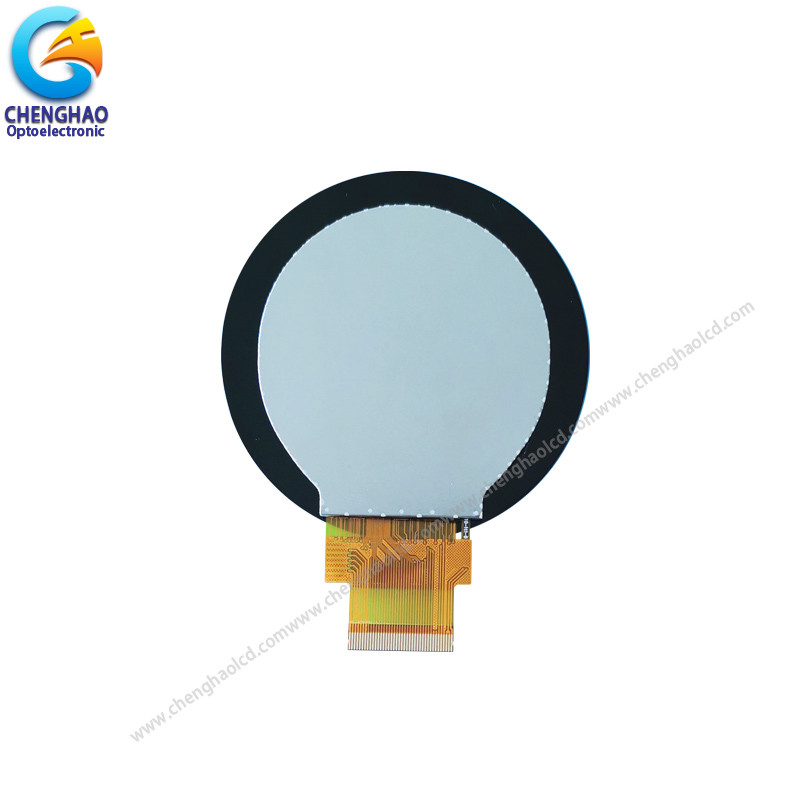

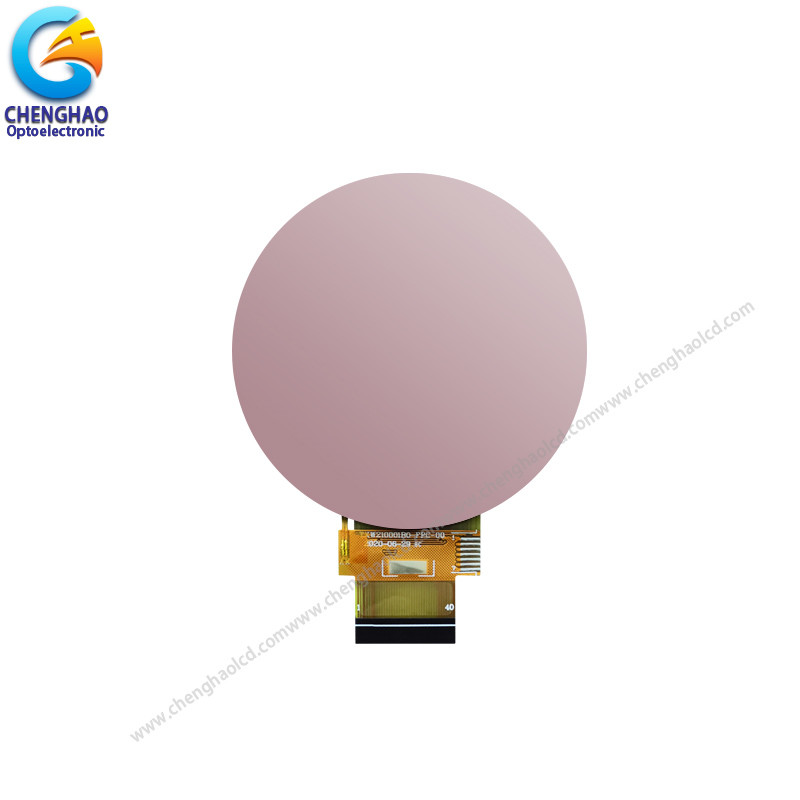

All Viewing Direction TFT LCD Capacitive Touchscreen 2.1 Inch 480x480 Round LCD Screen

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH210WV01A-CT

Detail Information

Product Name: 2.1 All Viewing Direction TFT LCD Capacitive Touchscreen Number Of Dots: 480*480
Dot Pitch: 0.111(W)×0.111(H) Mm TFT Interface: 3line SPI + 18bit RGB
CTP Interface: I2C Operating Temperature: -20 ~ +70 ℃
Storage Temperature: -30 ~ +80 ℃ Back Light: 4pcs White LED
High Light:

Round TFT LCD Capacitive Touchscreen


2.1 inch TFT LCD Capacitive Touchscreen


480x480 Round LCD Screen

Product Description

All Viewing Direction TFT LCD Capacitive Touchscreen 2.1 Inch 480*480 Round Lcd Screen


1. Specification of  2.1 round touchscreen


LCD type 2.1 inch TFT+CTP --
Dot arrangement 480(RGB)x480 dots
Driver IC ST7701S --
Module size
Active area
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light LED --
Weight TBD g


2. Description of 480x480 round touchscreen


ChengHao Display model CH210WV01A is a 2.1 inch circular capacitive touch LCD module, using 3line SPI + 18bit RGB Interface, it can display 16.7M colors.

(1) There is a circular display area with a diameter of 2.1 inch, displaying a screen of 480x480 resolution.

(2) Using 3line SPI + 18bit RGB interface, it can display 16.7M colors.

(3) Adopt IPS TFT display technology, support 80/80/80/80 full-angle viewing.

(4) The backlight brightness is 300 cd/m2, which can be modified according to customer requirements.

(5) It is a wide temperature display and can work in an ultra-wide temperature of -20~+70 ℃.

If you want to know more about this 2.1 inch Round IPS TFT Display, please send us a message immediately, our customer service is online 24 hours.


3. Drawings of 2.1 IPS TFT Display

(1) Display Type : 2.1” TFT+CTP
(2) Viewing Direction : 80/80/80/80
(4) Polarizer Mode : Transmission / Nagative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

All Viewing Direction TFT LCD Capacitive Touchscreen 2.1 Inch 480x480 Round LCD Screen 0



4. Qucik Detail of 480x480 IPS TFT Lcd


LCM number : CH210WV01A-CT
Resolution : 480× (RGB) × 480
Dot pitch : 0.111(W)×0.111(H)
Outline dimension : φ71.8×3.65(T) mm
Active Area : φ53.28 mm
View angle| : R/L/U/D 80/80/80/80(Deg)
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : 3line SPI + 18bit RGB
CTP Interface:i2c
Brightness : 300 nits
Tft driver IC : ST7701S
Contrast ratio : 800
Backlight Type : LED
Display mode : IPS, Normally Black, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 16.7M
Backlight lifetime : 20k hrs(Min.)
Touch Panel: CTP


5. Application of 2.1 Round TFT Display


All Viewing Direction TFT LCD Capacitive Touchscreen 2.1 Inch 480x480 Round LCD Screen 1


6. Our Service


1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.

6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

7. All goods will be inspected and tested before shipment.

8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.
