IPS TFT LCD Capacitive Touchscreen 480x800 2 Lane MIPI DSI Interface

Product Description

IPS TFT LCD Capacitive Touchscreen 480x800 2 Lane MIPI DSI Interface

1. Specification of wvga ips tft lcd

2. Description of 480x800 ips tft lcd

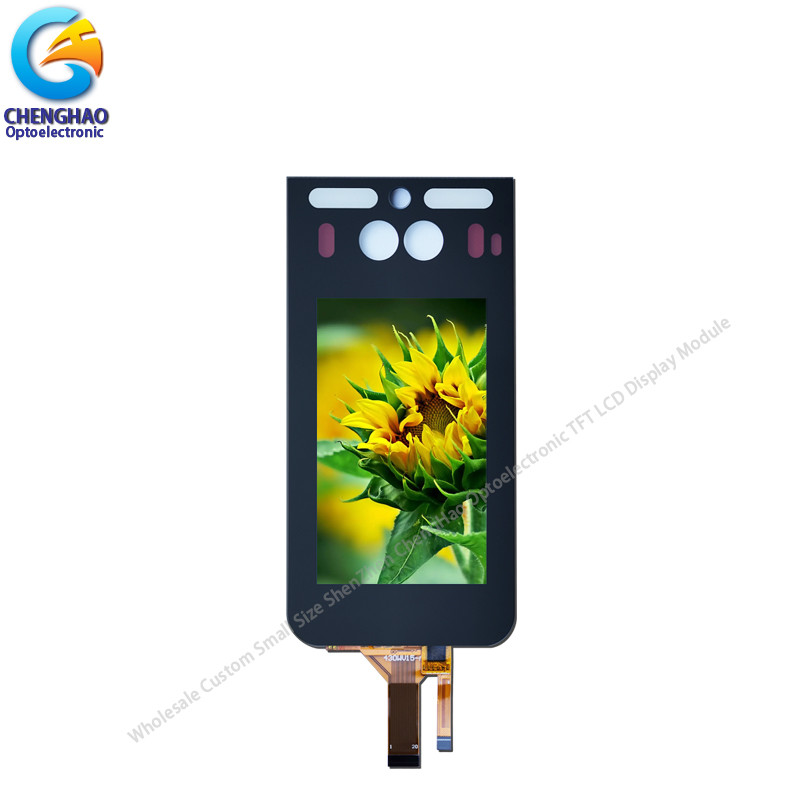

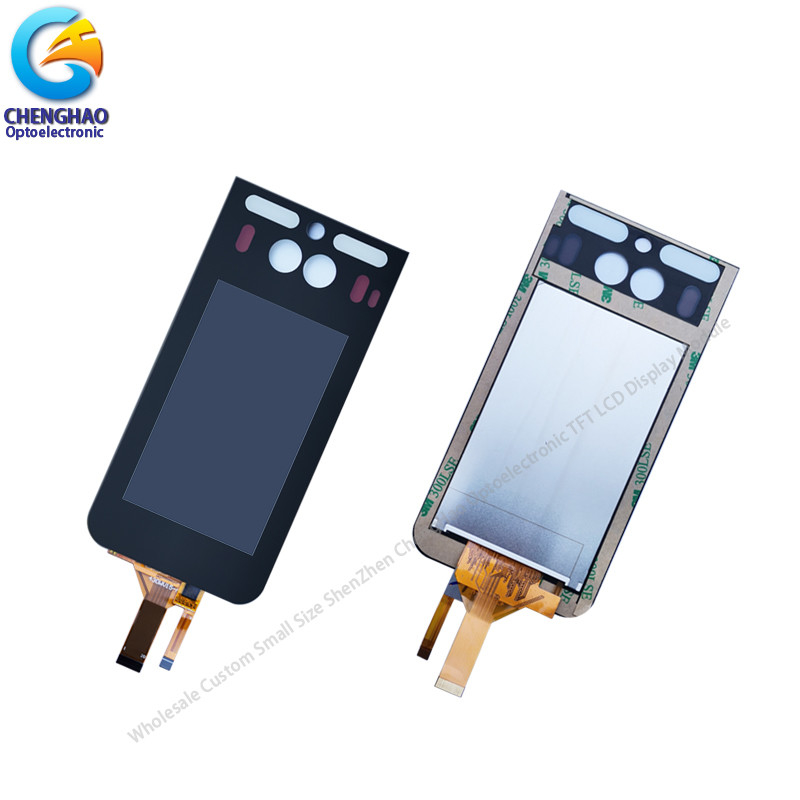

ChengHao Display model CH430WV15A-CTC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a Customized capacitive touch panel, TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 4.3 ( vertical screen ) inch diagonally measured active display area with WVGA (480 horizontal by 800 vertical pixel) resolution.

The driver used for this project is the NT35510 and can display 16M colors by 24 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 2 lane-MIPI DSI interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.





4. Quick Detail of 480x800 ips touchscreen

* MODEL NO. :CH430WV15A-CTC
* Module type:4.3" TFT+CTP
* Display shape: vertical screen
* Display Mode:IPS / Transmissive / Normally Black
* Number of Dots:480*3(RGB)*800
* Module size:75.56(W)×154.37(H)×3.75(T) mm
* TFT Active area:56.16(W)×93.6(H) mm

* TFT Interface:2 lane-MIPI DSI

* CTP interface: I2C

* CTP IC : GT911

* Color : 16.7M
* Contrast : 800
* VIEWING DIRECTION: 80/80/80/80(U/D/L/R @ CR>10)
* LCD DRIVE IC: NT35510
* POLARIZER MODE: TRANSMISSIVE/NEGATIVE
* OPERATING TEMP: -20°C~+70°C
* STORAGE TEMP: -30°C~+80°C
* UNMARKER TOLERANCE: ±0.20
* REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
NEW
* TFT FPC Number: 20 pin

* CTP FPC Number: 8 pin

* Back light Type : 8 White LED in serial
* Life Time: 20000 Hr
* BL CIRCUIT DIAGRAM:
VF=22.4~27.2 V , IF=20 mA
* Luminace:400 cd/m2
* Touch Panel Type: Capacitive




5. Optical Characteristics

Optical Characteristics

The test of Optical specifications shall be measured in a dark room (ambient luminance 1lux

and temperature = 25±2℃) with the equipment of Luminance meter system (Goniometer

system and TOPCON BM-5) and test unit shall be located at an approximate distance 50cm

from the LCD surface at a viewing angle of θ and Φ equal to 0. The center of the measuring

spot on the Display surface shall stay fixed.

 The backlight should be operating for 30 minutes prior to measurement.

5. Application of wvga ips touchscreen
