800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV03A-CTA

Detail Information

Product Name: 800*480 TFT LCD Capacitive Touchscreen Gray Scale Inversion Direction: 6 O’clock
CTP Type: LENS Glass+ITO Glass+FPC+Adhesive Surface Treatment: 6H
CTP Driver IC: GT911 Module Size: 180(W)×119(H)×5.27(T)
High Light:

280 cd/m2 Tft Lcd Touch Screen

,

7.0 inch TFT LCD Capacitive Touchscreen

,

Lcd Tft Touchscreen 800x480

Product Description

800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface



1. Specification of 800*480 capacitive touchscreen



General Features
Diagonal Size 7.0 inch Type LCM ,  TFT-LCD
Pixel Format 800(RGB)×480 Configuration RGB Vertical Stripe
Active Area
154.08(W)×85.92(H) mm
Outline Dim. 180(W)×119(H)×5.27(T) mm
Luminance 280 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 12:00 Operating Mode TN, Normally White, Transmissive


2. Description of 800*480 tft lcd


ChengHao Display model CH700WV03A-CTA is a capacitive touch LCD module with a display area measuring 7.0 inch diagonally and a resolution of 800x3(RGB)x480 resolution.

The 7inch capacitive touchscreen lcd includes a touch panel (TP), control IC, back light (BL), tft lcd panel and FPC and other components, of which TP, BL, FPC can be customized according to customer requirements, please consult our customer service.

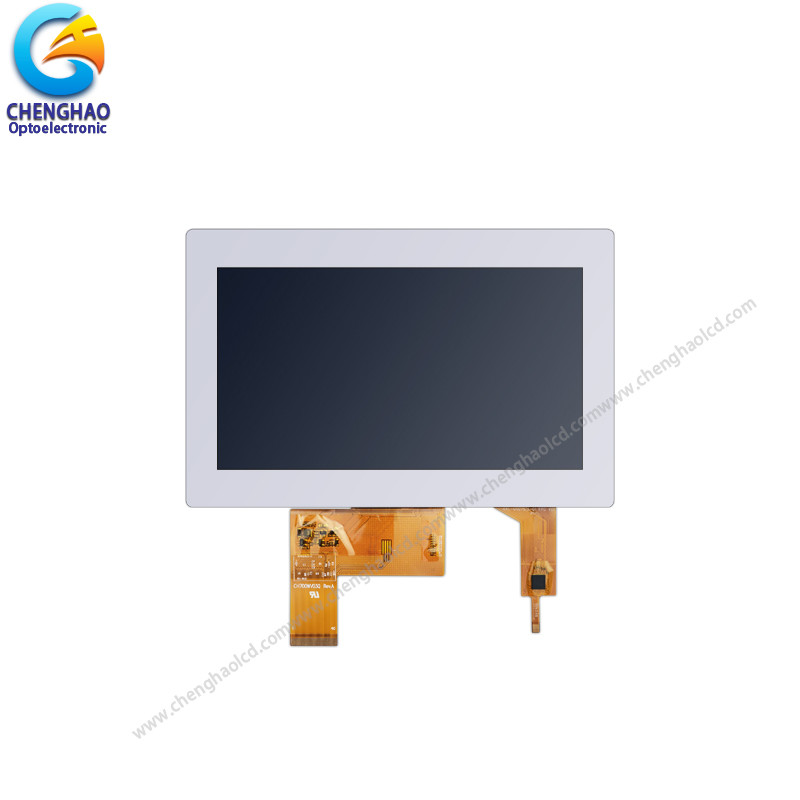

800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface 0

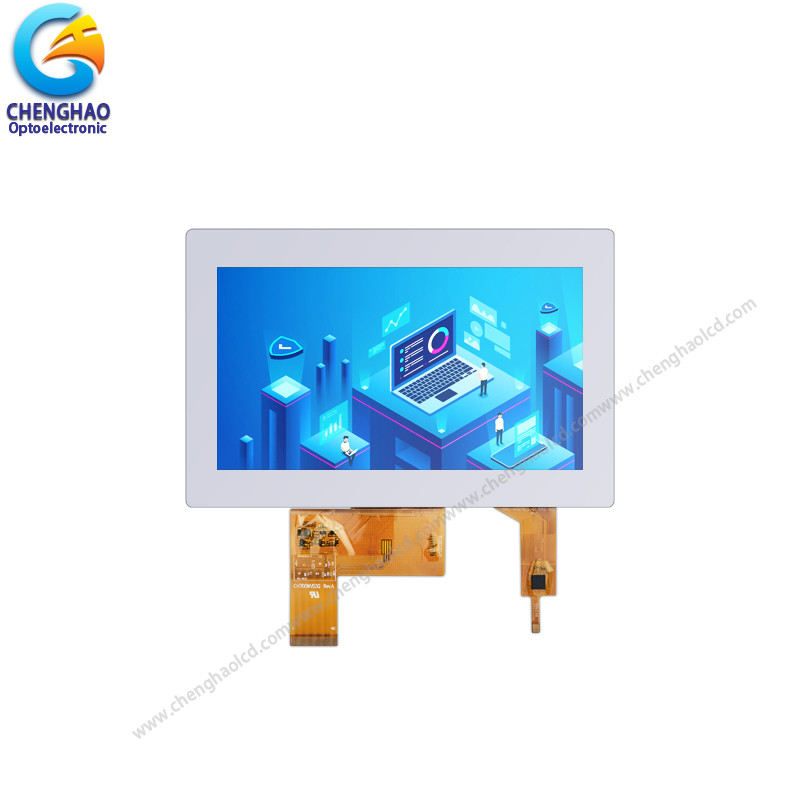

800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface 1

4. Quick Detail of 7 inch capacitive touchscreen


Diagonal Display Size: 7.0 inch
Interface Type: 24-Bit Parallel Digital RGB Interface
Resolution: 800 x 480 pixels
Touch Screen: Yes
Viewing Area Dimensions:155.28*87.12*5.27 mm

Touch Screen Type: Capacitive
Backlight Type: white LED
Display Mode:Tn / Transmissive
Dimensions:180(W)×119(H)×5.27(T) mm

Display Matrix Technology: TFT
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +70°C
Brightness: 280 cd/m²
Number of Colours: 16.7 Million
Standards Met: CE, RoHS Compliant
Operating Temperature Range: -20 → +70°C
Contrast Ratio:500
Display Type: LCD TFT

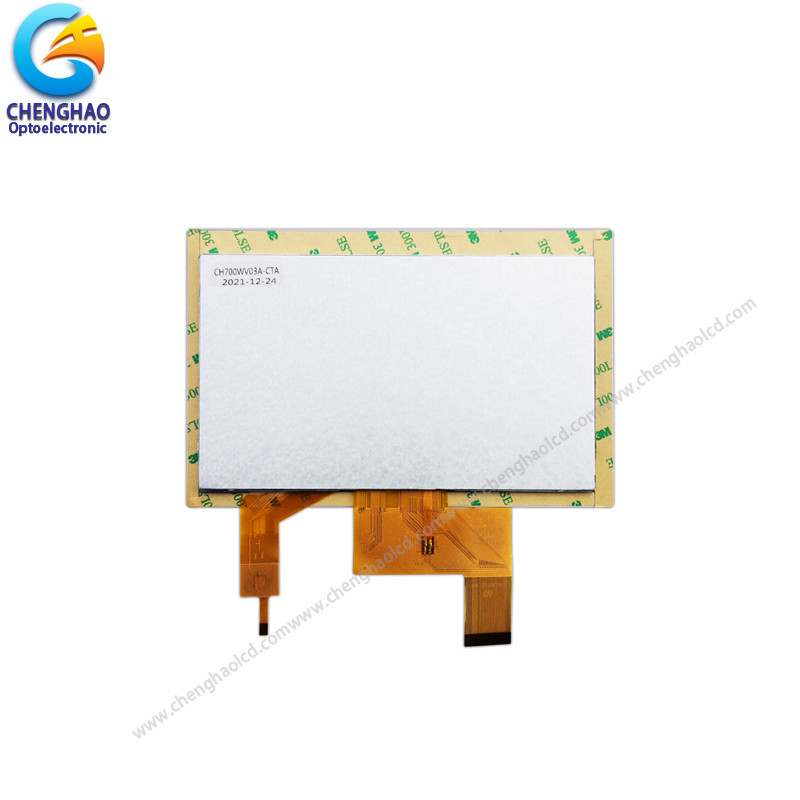

800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface 2


5. Application of 7 inch tft lcd



* Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines, instrumentation, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment and other fields .
* Such as smart wearable devices (such as watches, fingertip pulse meters), car display devices (car central

control display, navigation display/headrest display, etc.), payment financial equipment (card reader, cash

register, etc.), customer terminal equipment (refrigerator, Coffee machine, smart rice cooker, etc.), elevator

display equipment (elevator digital display), industrial control equipment (industrial display), instrument

measuring equipment (detector, monitor), artificial intelligence equipment (smart robot), medical equipment

(heart rate monitoring display) ), smart home equipment (kitchen smoke machine), security identification

equipment (smart access control, punch card machine, etc.), vending equipment (vending machine), etc.

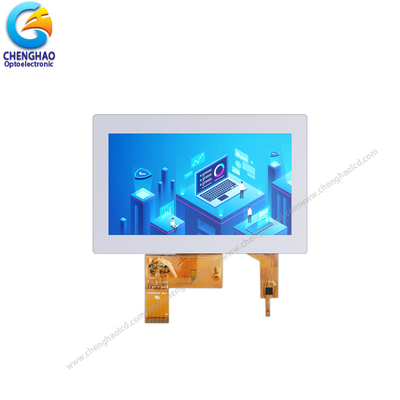

800*480 TFT LCD Capacitive Touchscreen 7 Inch With 40 Pin Rgb Interface 3
