800x480 Resolution Small LCD Touch Screen 7.0 Inch 24 Bit Parallel RGB Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV03A-CTA

Detail Information

Product Name: 800x480 Resolution Small LCD Touch Screen LCD Type: 7.0”TFT+CTP
Dot Arrangement: 800×3(RGB)×480 Color Pixel Arrangement: RGB Vertical Stripe
Display Mode: TN / Transmissive / Normally White Tft Interface: RGB
High Light:

RGB Interface LCD Touch Screen Module

,

LCD Touch Screen Module 7.0 Inch

,

CH700WV03A-CTA LCD Touch Screen

Product Description

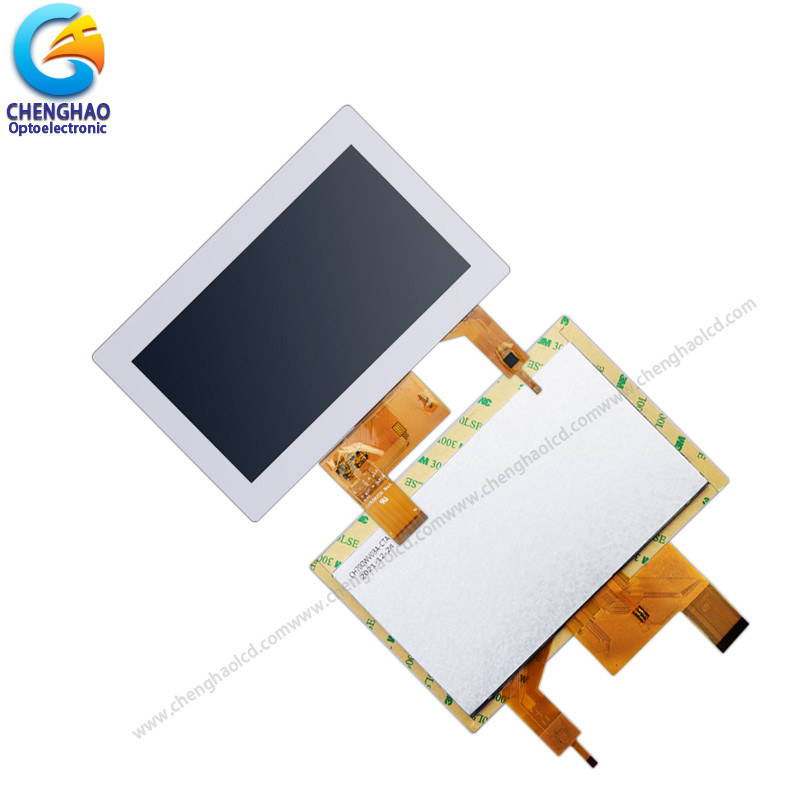

800x480 Resolution Small LCD Touch Screen 7.0 Inch 24 Bit Parallel RGB Interface



1. Specification of 800x480 lcd touch screen



Type: TFT
Viewing Direction: 12 o' Clock
Connection type: COG+FPC
Operating temperature: -30℃~80℃
Storage temperature: 30℃~80℃
CTP Driver IC: GT911
Interface type: RGB
Brightness: 280 CD/



2. Description of 800x480 touch lcd





ChengHao Display model CH700WV03A-CTA is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is mainly composed of touch panel, tft lcd panel, backlight, driver IC and FPC.

(1) The touch panel is capacitive and uses the I2C interface to interconnect with other components. The glass cover attached to CTP can be customized according to customer requirements.

(2) The Back light uses 21 White LED as the light source, which can make the 7 inch lcd touchscreen produce a luminance of 280 cd/m2.

(3) The TFT FPC uses 24-bit Parallel RGB Interface, and the FPC Number is 40 pins, which can be customized according to customer requirements. The customized content includes shape structure, interface definition, etc.

(4) The tft lcd panel has a 7.0inch display area, which can display 800*3(RHB)*480 images.



3. Drawings of 800x480 small tft lcd

Notes:
(1) Display Type : 7.0” TFT
(2) Viewing Direction : 12:00
(4) Polarizer Mode : Transmission / Positive

(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



800x480 Resolution Small LCD Touch Screen 7.0 Inch 24 Bit Parallel RGB Interface 0







4. Qucik Detail of 800x480 tft lcd screen



LCD type : 7.0"TFT+CTP
Dot arrangement : 800×3(RGB)×480 dots
Color Pixel Arrangement : RGB vertical stripe
Display Mode : TN / Transmissive / Normally white
Viewing Direction : 12 o’clock
Gray Scale Inversion Direction : 6 o’clock
CTP type : LENS Glass+ITO Glass+FPC+Adhesive
Surface Treatment : 6H
CTP Driver IC : GT911
Module size : 180(W)×119(H)×5.27(T) mm
TFT/CTP Active area : 154.08(W)×85.92(H) mm
TFT Dot pitch : 0.1926 (W)×0.1790 (H) mm
Interface : 24-bit Parallel RGB Interface
Operating temperature : -20 ~ +70 ℃
Storage temperature : -30 ~ +80 ℃
Back Light : 21 White LED
Weight : TBD g



5. Application of 800x480 tft screen



Telecommunication Devices Telephone, Interphone, watch, radio, etc.
Home Appliances Washing Machine, Refrigerator, Home Integrator etc
Industrial Control Homotaxial Numerically-controlled machine tool
Instrument and Apparatus Tester, Medical instruments
Vehical-mounted Digital MP3, MP4 and vehical-mounted air conditioner
Mining Mine's lamp charger, gas tester
Marine Salinity tester
According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.



ODM/OEM accetable

Various LCD Display Mode with different backlight color and temperature range available





800x480 Resolution Small LCD Touch Screen 7.0 Inch 24 Bit Parallel RGB Interface 1
