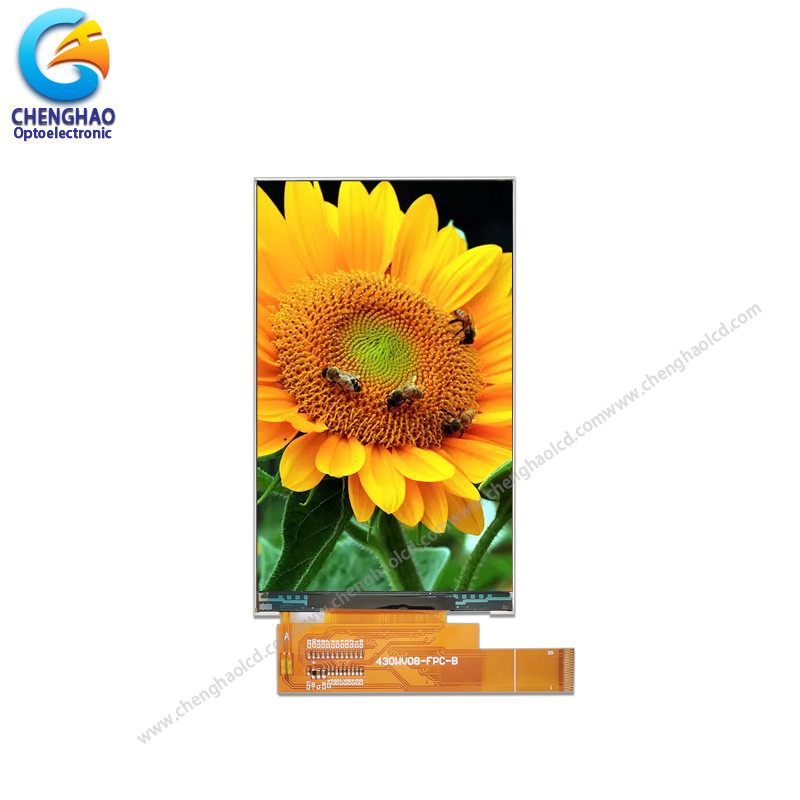

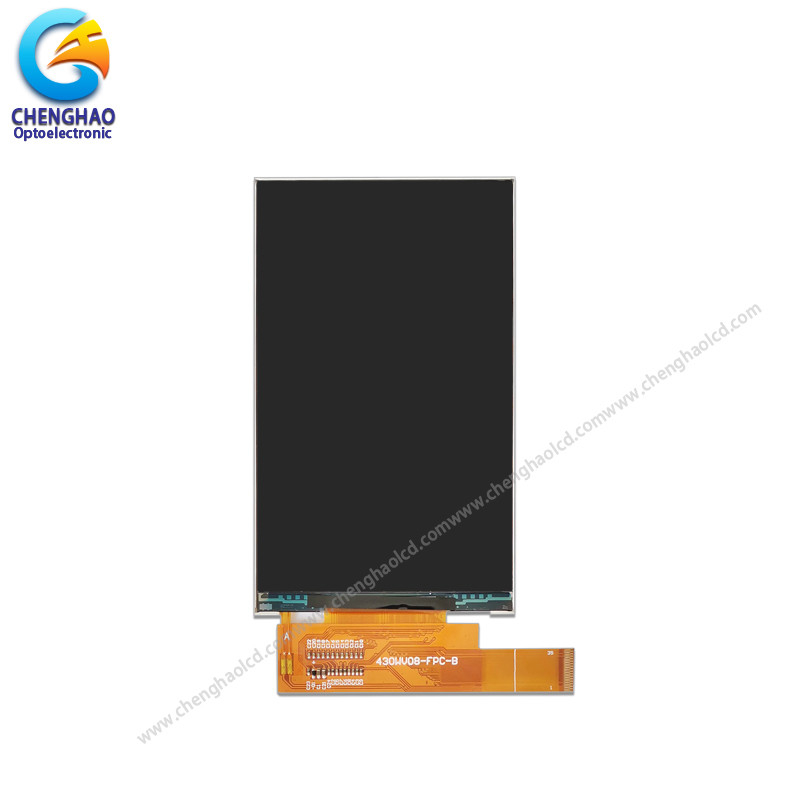

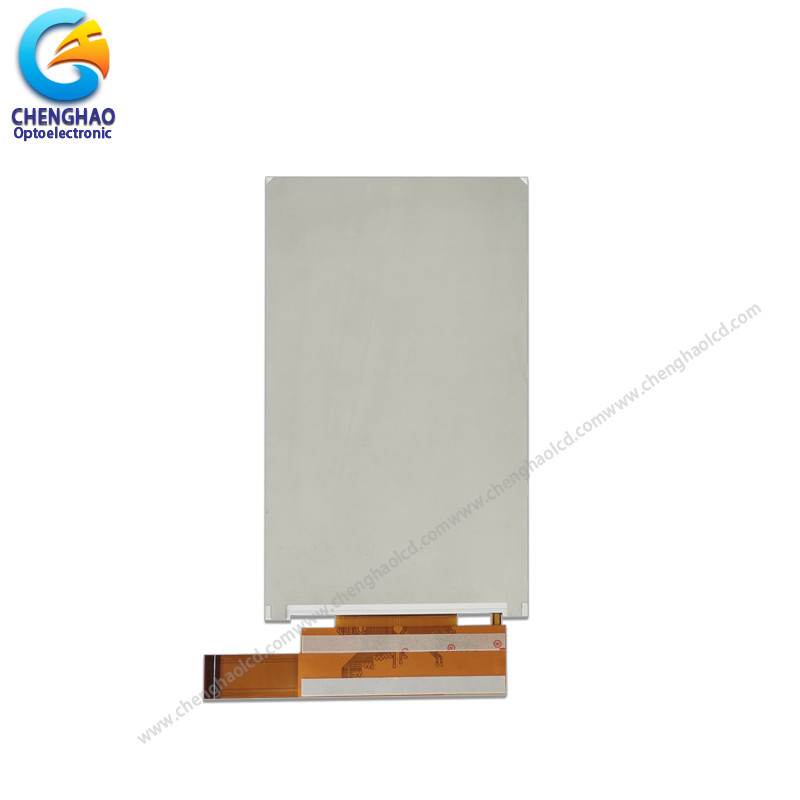

480*800 Spi Lcd Module 4.3 Inch Ips Tft Display With Rgb Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WV08A

Detail Information

Product Name: 480*800 Spi Lcd Module Module Type: 4.3"TFT
Display Mode: IPS / Transmissive / Normally Black Number Of Dots: 480*3(RGB)*800
Viewing Direction: ALL Module Size: 61.56(W)*104.65(H)*2.2(T)mm
High Light:

TFT LCD Display With Rgb Interface

,

Spi Lcd Module 480x800

,

400cd/m2 Spi Lcd Module

Product Description

480*800 Spi Lcd Module 4.3 Inch Ips Tft Display With Rgb Interface



1. Specification of ips tft lcd panel



Module number CH430WV08A
Resolution 480x800 dots
Active Area 56.16(W)*93.6(H)mm
View angle R/L/U/D 80/80/80/80(Deg)
Pixel Arrangement RGB-stripe
Surface Treatment Plant
Electrical Interface Parallel RGB
Brightness 400(cd/m2)
Contrast ratio 800





2. Description of 4.3 ips tft lcd panel



Chenghao Display model CH430WV08A is a component of a small color display, which mainly includes a tft lcd panel, driver IC, backlight and FPC.

The tft lcd panel has a rectangular display area with a diagonal measurement of 4.3 inches, which can display 480*800 resolution video animations. Due to the use of ips full viewing angle display technology, the 4.3 ips screen display has an ultra-wide viewing angle.

In addition, as a supplier with rich experience in tft lcd production and sales, chenghao can provide OEM customization services for all tft lcd between 1.1~10.1 inch. The customization content of tft lcd module includes CTP/RTP installation or removal, BL modification, FPC design, interface definition, etc.



3. Drawings of 4.3inch ips tft lcd panel

Notes:
(1) Display Type : 4.3” TFT
(2) Viewing Direction : 80/80/80/80
(4) Polarizer Mode : Transmission / Nagative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

480*800 Spi Lcd Module 4.3 Inch Ips Tft Display With Rgb Interface 0







4. Qucik Detail of 4.3" ips tft lcd panel



Model No:CH430WV08A
Size :4.3 inch
Active Area:56.16(W)*93.6(H) mm
Panel Type:IPS Panel
Backlight:LED
Backlight Life:20,000 hrs
Resolution:480x800
Acpect Ratio:0.6
Contrast:800
Brightness : 400 cd/m
Viewing Angle:80/80/80/80
Response Time:******
Display Color:16.7 M
Operating Temperature:-20~70℃
Storage Temperature:-30~80℃
Touch:CTP,RTP (Optional)
Dimension (W*H*D):61.56(W)*104.65(H)*2.2(T)mm
Weight: TBG
Control IC:NT35510
Certificates:CE/ROHS





5. Application of 480x800 ips tft lcd panel



480*800 Spi Lcd Module 4.3 Inch Ips Tft Display With Rgb Interface 1



6. Our Service



(1) Fully / Semi-automated production line ensure the best quality.

(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.



7. FAQ



Q1: How does your factory do regarding quality control?
A1: Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has

gained ISO9001, RoHS, CE certification.



Q2: Can I get Customize product?
A2: For sure that OEM service is availiable.



Q3: Where is your factory located? How can I visit there?
A3: We have two factories, one is in Shenzhen, the other in HuNan Province. Welcome to visit our factory. We could pick

you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
