96X96 Dots TFT LCD Display 1.1inch 4 Line SPI TFT LCD Panels With ST7735S

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH110T001A

Detail Information

Product Name: 1.1inch TFT LCD Display Driver IC: ST7735S
Module Size: 25.46(W)×29.54(H)×2.3(T) Mm Active Area: 19.87(W)×19.87(H) Mm
Dot Pitch: 0.207(W)×0.207(H) Mm Interface: 4line SPI
Resolution: 96*96 Dots
High Light:

96X96 Dots TFT LCD Display

,

4line SPI TFT LCD Display

,

ST7735S TFT Lcd Panels

Product Description

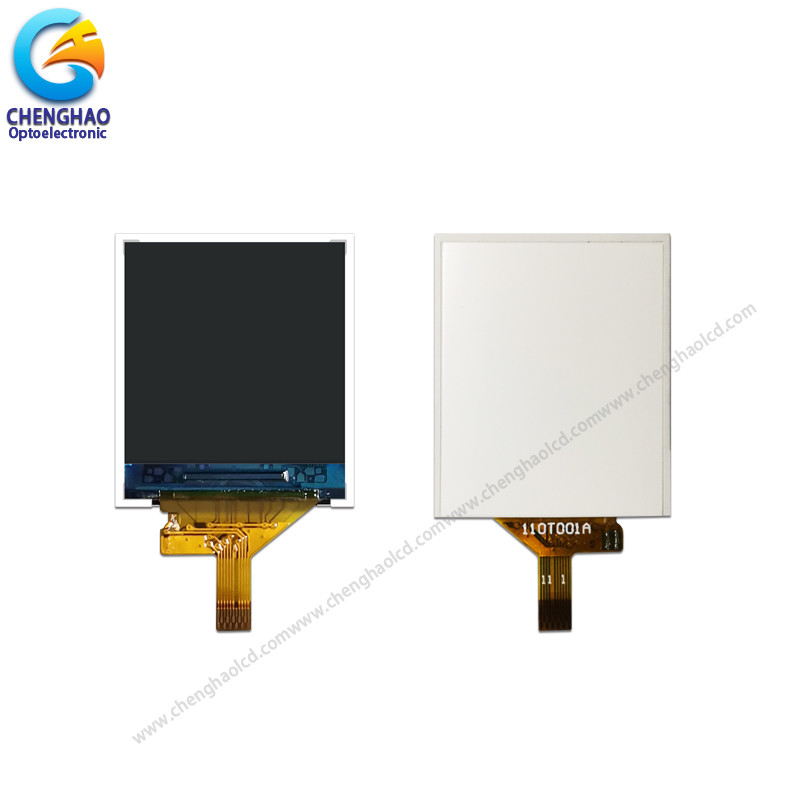

1.1inch TFT LCD Display 96*96 Dots 4 Line SPI TFT Lcd Panels



1. Specification of tft colour monitor



Module number CH110T001A
Resolution  96x96 dot
Active Area
19.87(W)×19.87(H) mm
View angle All Viewing Direction
Pixel Arrangement RGB-stripe
Surface Treatment Plant
Electrical Interface
4-line SPI





2. Description of tft color display



CH110T001A is a small tft lcd module produced by chenghao factory, is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.

This tft lcd module includes an ips tft lcd panel, a control IC, a backlight and FPC. The tft lcd panel has a 1.1” ( vertical screen ) diagonally measured active display area with 96(RGB) x 96 dot resolution. It is mounted on glass The ST7735s on the above is the control IC of this module, which is interconnected with other components through FPC. Back Light (BL) has only 1 white LED, and the electrical parameters of BL are VF=3.2V / IF=20 mA.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings of tft display screen

Notes:
(1) Display Type : 1.1"TFT
(2) Viewing Direction : 80/80/80/80
(3) Polarizer Mode :  Transmissive / Negative
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS



96X96 Dots TFT LCD Display 1.1inch 4 Line SPI TFT LCD Panels With ST7735S 0







96X96 Dots TFT LCD Display 1.1inch 4 Line SPI TFT LCD Panels With ST7735S 1



4. Quick Detail of  rgb lcd display



* LCD name: 1.1inch TFT LCD Display 96*96 Dots 4 Line SPI TFT Lcd Panels
* Part No.: CH110T001A
* Size.: 1.1 inch
* With touch panel or not: No
* Support Touch type: CTP/RTP
* Display type: 1.1"TFT
* Display colors: 262K/65K
* Resolution (pixels): 96*96 dots
* Viewing direction: 80/80/80/80
* Display mode:IPS / Transmissive / Normally Black
* Module size: 25.46(W)×29.54(H)×2.3(T) mm

* Active Area: 19.87(W)×19.87(H) mm

* Luminance: 250 cd/m2
* Contrast: 800:1
* Interface type: SPI
* Pin NO.: 11 pins
* Backlight type and color: White LED
* LED Life span: 20000h
