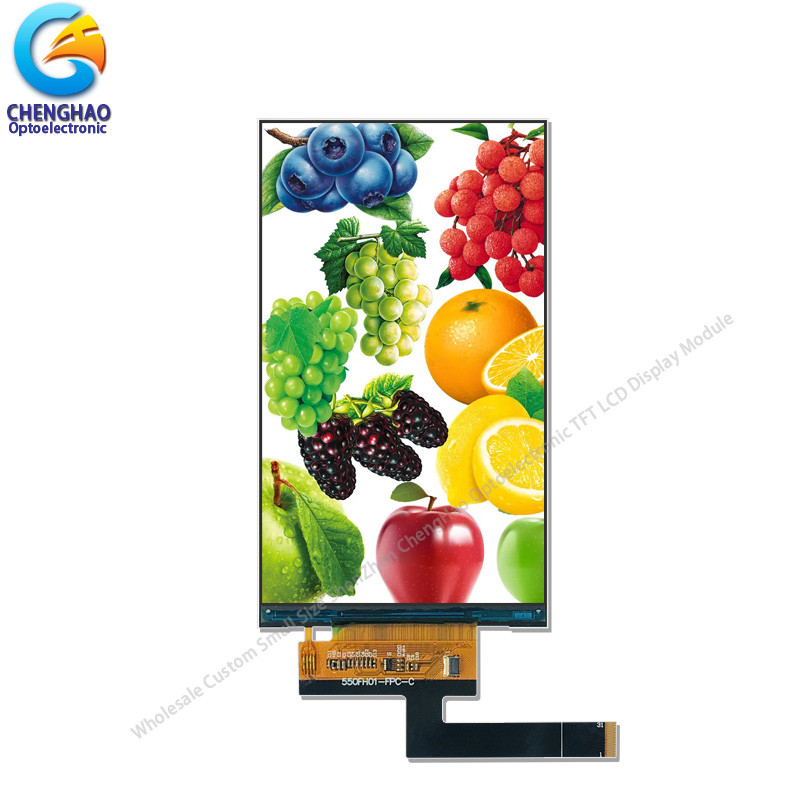

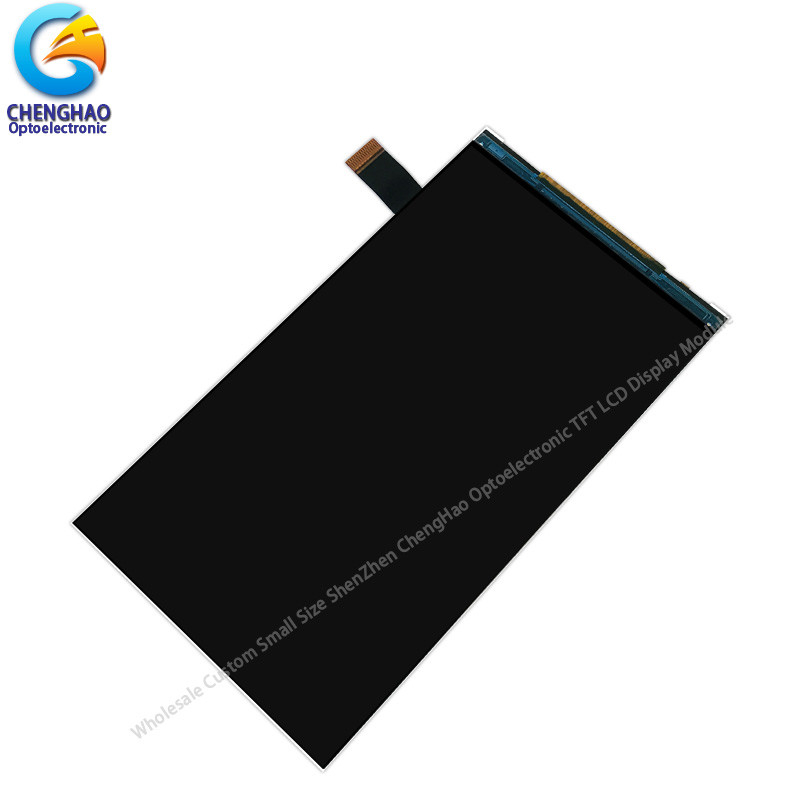

5.5 Inch LTPS TFT LCD Module 1080*1920 Resolution MIPI LCD Screen

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH550FH01A

Detail Information

Product Name: Ltps Tft Lcd LCD Type: 5.5" TFT
Dot Arrangement: 1080(RGB)×1920 Dots Color Filter Array: RGB Vertical Stripe
Display Mode: LTPS / Transmissive / Normally Black Viewing Direction: 80/80/80/80
Driver IC: HX8399C
High Light:

LTPS TFT LCD module

,

5.5 Inch Tft Lcd module

,

HX8399C Driver MIPI LCD Screen

Product Description

5.5 Inch Ltps Tft Lcd Module 1080*1920 Resolution Mipi Lcd Screen



1. Specification of Ltps Ips Lcd



ITEM STANDARD VALUES UNITS
Module No. CH550FH01A --
LCD type 5.5" TFT --
Dot arrangement 1080(RGB)*1920 dots
Driver IC
HX8399C
--
Module size
70.78(W)×129.17(H)×1.7(T)
mm
Active area
68.04(W)×120.96(H)
mm
Dot pitch
63(W)×63(H)
mm
Operating temperature -20 ~ +70
Storage temperature -30 ~ +80







2. Description of Ltps TFT



ChengHao Display model CH550FH01A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a LTPS TFT LCD panel, a driving IC, a back-light and FPC.

This TFT LCD has a 5.5” ( vertical screen ) diagonally measured active display area with 1080*1920 dot resolution.

The driver can display 16M colors by R.G.B. signal input and is mounted on the glass and the interconnection via FPC including components to drive the display module.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings of Ltps Display



Notes:
(1) Display Type : 5.5" Tft lcd
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : HX8399C
(4) Polarizer Mode : LTPS / Transmissive / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20

(8) Protection : ROHS

5.5 Inch LTPS TFT LCD Module 1080*1920 Resolution MIPI LCD Screen 0





4. Qucik Detail of HD Tft Lcd Display Module



* LCM name: 5.5 Inch Ltps Tft Lcd Module 1080*1920 Resolution Mipi Lcd Screen
* Model: CH550FH01A
* Lcm Size.: 5.5 inch
* With touch panel or not: No
* Support Touch type: Capacitive / Resistive touch panel
* Display Type: 5.5"TFT
* Display colors: 16M (Optional)
* Number of Dots: 1080(RGB)*1920
* Viewing Angle: 80/80/80/80
* Driver IC: HX8399C
* Display mode: Transmissive/ Normally Black
* Module size: 70.78(W)×129.17(H)×1.7(T) mm

* Viewing area: 68.44(W)×121.36(H) mm

* TFT Active Area: 68.04(W)×120.96(H) mm

* Luminance: 700 cd/m2
* Contrast: 800:1
* Support Interface Type: 4lane MIPI
* Pin Number: 31pins
* Backlight type and color: LED backlight/white
  Backlight: 14 LED




5. Application of 5.5 " Tft color display



5.5 Inch LTPS TFT LCD Module 1080*1920 Resolution MIPI LCD Screen 1







6. Our Service



1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.

6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

7. All goods will be inspected and tested before shipment.

8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hour.
