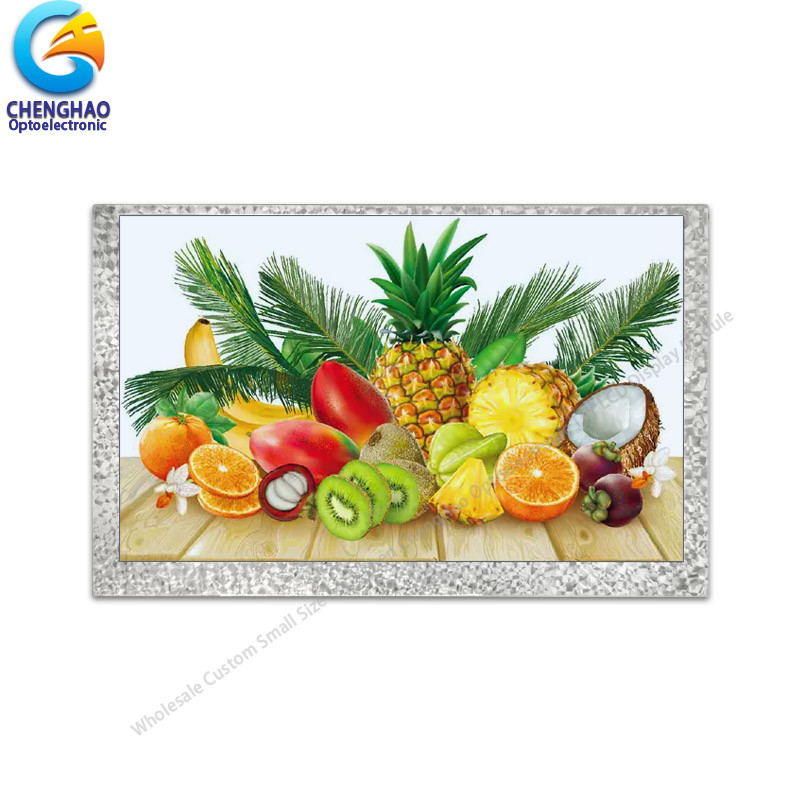

Parallel RGB LCD Display Module 5 Inch 800X480 Dots 24 Bit 40 Pin TFT TN Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500WV03A

Detail Information

Product Name: Rgb Lcd Display Module LCD Type: 5 Inch Tft
Resolution: 800*480 Dots Viewing Direction: 12:00
Interface: Parallel RGB Operating Temp: -20 ~ +70 ℃
Storage Temp: -30 ~ +80 ℃
High Light:

Parallel RGB LCD display Module


Lcd display Module 800X480 Dots


5 Inch tft tn panel

Product Description

Rgb Lcd Display Module 5 Inch 800*480 24 Bit 40 Pin Tn Tft Lcd


1. Specification of tft display screen


Module No. CH500WV03A
Display Type 5.0 inch TFT-LCD
Pixel Configuration RGB Stripe
Display Resolution 800*3(RGB)*480 dot
Contrast 500:1 (Typ.) (TM)
Overall Size
120.7(W)×75.8(H)×3.0(T) mm
Active Area (A.A)
108(W)×64.8(H) mm
Luminace 300 cd/m2
Viewing Direction  12 O’ clock
Interface 24 bit RGB



2. Description  of tft color display


Chenghao CH500WV03A is a color active matrix TFT (thin film transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. It consists of a Tn Tft Lcd Panel of 800*480 dots Resolution, a driver IC, a backlight and a 50 pin FPC.

The driver IC is mounted on the glass and interconnected with other components through the FPC. By inputting RGB signals to it, the display screen can display 16M colors. 12 white LEDs are used as the light source of this module to provide a backlight of 300 nit luminance for the Tft Screen Panel.

CH500WV03A adopts 24-bit Parallel RGB Interface and supports FPC modification and customization. We can customize FPC according to customer's requirements, including FPC shape structure, interface definition, etc. In addition, this module can also be installed with a touch panel. The types of installed touch panels include capacitive touch panel and Resistive touch Panel.

RoHS Compliance & Halogen Free.

If CH500WV03A does not meet your project requirements, please contact us, we have many display solutions similar to this module for you to choose.



3. Drawings of tft colour monitor


(1) Display Type : 5 inch Tft
(2) Viewing Direction : 12 O’clock
(3) Polarizer Mode : Tn / Transmission / Normally While
(4) Operating Temperature : -20~70 ℃
(5) Storage Temperature : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS
