2.8" Multi Touch Capacitive Touch Screen 240x320 Dots SPI RGB TFT LCD Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH280QV10-CT

Detail Information

Product Name: Multi Touch Capacitive Touch Screen Size: 2.8 Inch
Lcd Type: 2.8"TFT+CTP Interface: Mcu / SPI / SPI+RGB
Luminance: 280 Nit Viewing Direction: 6:00
Resolution: 240x320 Dot
High Light:

2.8" Multi Touch Capacitive Touch Screen

,

CTP Multi Touch Capacitive Touch Screen

,

SPI RGB TFT LCD Module

Product Description

2.8" Multi Touch Capacitive Touch Screen 240*320 SPI RGB Tft Lcd Module



1. Specification of  color lcd display



Display Size 2.8 inch
Place of Origin China
Model Number CH280QV10-CT
Brand Name Chenghao
Outline Dimension 5.0(W)*6.92(H)*0.40(T) cm
Display area 4.32(W)*5.76(H) cm
Number of Pixel 240x320
Operating Temperature -20~70℃
Storage Temperature -30~80℃
color 262K / 65K







2. Description of bright lcd screen

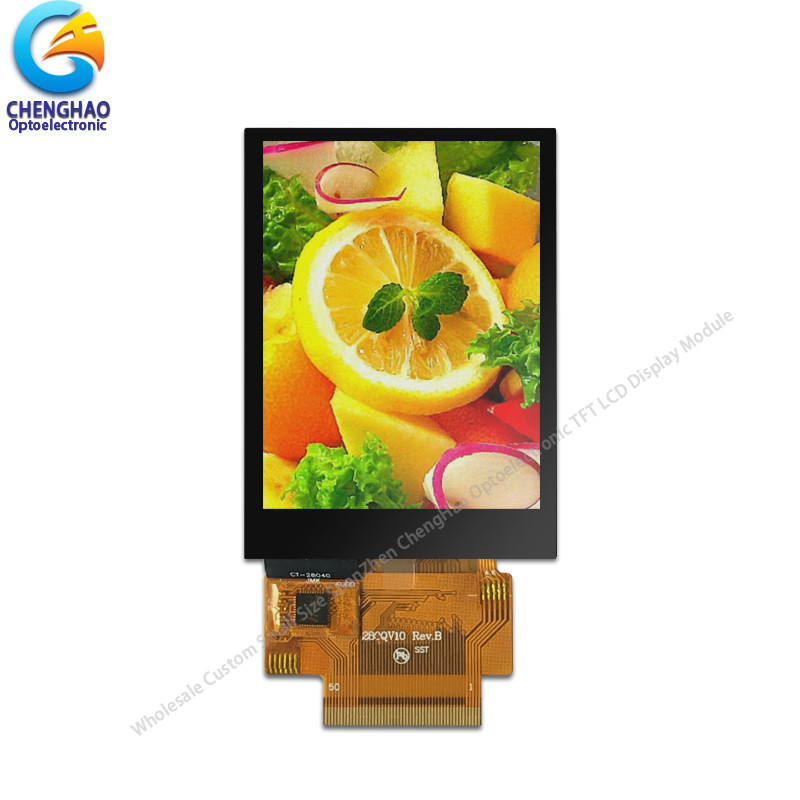

CH280QV10-CT is a 2.8 inch (portrait) 240*320 dots color TFT (Thin Film Transistor) LCD (Liquid Crystal Display) module, including a tft lcd panel, a control IC, a backlight, a capacitive touch panel and an FPC.

ILI9341 is used as the control IC of this module, which is mounted on the glass and interconnected with other display components through FPC.

4pcs parallel white LEDs are installed in the backlight assembly, which enables a luminance of 280 cd/m2 in the display area.

This touch panel type is a capacitive touch panel (CTP), which uses the FT6236 as the driver IC for the CTP, and is interconnected with other components through the I2C interface.

FPC can be re-customized according to customer requirements, including FPC shape structure, interface definition, etc.

In addition, we have rich experience in providing touch screen display solutions for customers, CH280QV10-CT can also replace resistive touch panels according to your customer's requirements.

If CH280QV10-CT cannot meet your requirements, we have a large number of similar products for you to choose from, please contact us for details.



3. Drawings of 2.8 capacitive touch screen



Notes:
(1) Display Type : 2.8"TFT+ capacitive touch panel
(2) Viewing Direction : 6:00
(3) Module Drive IC : ILI9341
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

2.8" Multi Touch Capacitive Touch Screen 240x320 Dots SPI RGB TFT LCD Module 0









2.8" Multi Touch Capacitive Touch Screen 240x320 Dots SPI RGB TFT LCD Module 1



4. Quick Detail of 2.8 inch tft lcd



* LCD name: 2.8 Inch Industrial Touch Screen Display Module 240x320 SPI Tft Lcd Panel
* Part No.: CH280QV10-CT
* Size.: 3.8 inch
* With touch panel or not: Yes
* Touch type: Capacitive
* Display type: TFT
* Display colors: 262K / 65K
* Resolution (pixels): 240*3(RGB)*320
* Viewing direction: 6:00
* Controller IC: ILI9341
* Display mode: TN / Transmissive / Normally White
* Overall size: 50.0(W)*69.2(H)*4.0(T)mm
* Active Area: 43.2(W)*57.6(H)mm
* Luminance: 280 cd/m2
* Contrast: 500:1
* Interface type:

   TFT Interface: SPI, MCU,SPI+RGB

   CTP Interface: I2C
* Pin NO.: 50 pins
* Pin pitch: 0.35 mm
* CTP Input voltage: 2.8~3.3V
* Backlight type and color: LED backlight/white
  Backlight: 4 LED parallel

* CTP NOTE:

 (1) LENS+ITO Glass+FPC+adhesive

       ITO GLASS:0.4mm
       LENS:GLASS 0.7mm
       IC:FT6236

(2) Operation Voltage:2.8V-3.3 V
(3) Transmittance:≥87%
(4) The cover hardness:6H
(5) Operation Temp.:-20℃~+70℃,≤90%RH
(6) Storage Temp.:-30℃~+80℃,≤90%RH




5. Application of  custom lcd module



2.8" Multi Touch Capacitive Touch Screen 240x320 Dots SPI RGB TFT LCD Module 2





6. FAQ



Q: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.



Q: How long is your warranty period?
A: We guarantee the quality for one year.
