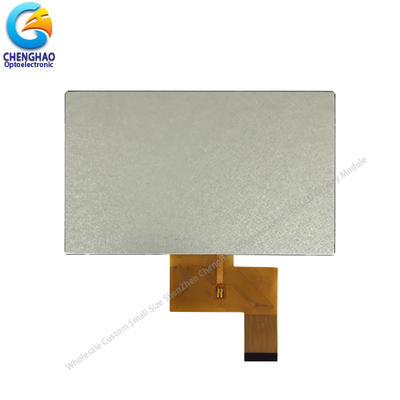

7.0" TFT RTP Touch Screen Display Panel 40 Pin 24 Bit RGB Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV03A-T

Detail Information

Product Name: Touch Screen Display Panel LCD Type: 7.0" TFT+RTP
Dot Arrangement: 800×3(RGB)×480 Dots Color Pixel Arrangement: RGB Vertical Stripe
Display Mode: TN / Transmissive / Normally White Viewing Direction: 12 O'clock
Module Size: 164.9(W)×100.0(H)×4.9(T) Mm TFT Active Area: 154.08(W)×85.92(H) Mm
High Light:

TFT RTP Touch Screen Display Panel

,

24 bit RGB Touch Screen Display Panel

,

250cd m2 Touch Screen Display

Product Description

800*480 Resistive Touch Screen Display Panel 40 Pin 24 Bit RGB Interface



1. Specification of Touch Screen Module



Type:
7.0’’TFT+RTP
Viewing Direction 12:00
Operating temperature: -20℃~70℃
Storage temperature: -30℃~80℃
Interface type:
24-bit Parallel RGB Interface
Brightness: 250 CD/㎡





2. Description Of Lcd Screen Display



ChengHao Display model CH700WV03A-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a Resistive touch panel and FPC.
This TFT LCD has a 7.0 (Landscape screen) inch diagonally measured active display area with 800×3(RGB)×480 dots resolution.
The driver used for this project can display 16M colors by 24 bit R.G.B. signal input and is mounted on the glass , the interconnection via FPC including components to drive the display module. Support 24-bit Parallel RGB Interface  interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and RTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.

7.0" TFT RTP Touch Screen Display Panel 40 Pin 24 Bit RGB Interface 0



3. Drawings of 800x480 Lcd Display



Notes:
(1) Display Type : 7.0" Tft lcd
(2) Viewing Direction : 12:00
(4) Polarizer Mode : Tn / Transmissive / Normally While
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS





7.0" TFT RTP Touch Screen Display Panel 40 Pin 24 Bit RGB Interface 1



4. Qucik Detail  of Lcd Touc Display





* LCD name: 800*480 Resistive Touch Screen Display Panel 40 Pin 24 Bit RGB Interface
* Part No.:CH700WV03A-T
* Size.: 7.0 inch
* Support touch panel Type: RTP
* Display type: 7.0’’TFT+RTP
* Display colors: 16M
* Resolution (pixels): 800*480
* Viewing direction:12:00

Gray Scale Inversion Direction: 6 o’clock

Color Pixel Arrangement: RGB vertical stripe

* Display mode: TN / Transmissive / Normally white
* Overall size: 164.9(W)×100.0(H)×4.9(T) mm

* Active Area: 154.08(W)×85.92(H) mm

* Dot pitch: 0.1926 (W)×0.1790 (H) mm

* Luminance: 250 cd/m2
* Contrast: 500:1
* Interface type: 24-bit Parallel RGB Interface
* Pin NO.: 40
* Pin pitch: 0.35 mm
* Backlight : 21 White LED

Operating temperature: -20 ~ +70

* Storage temperature: -30 ~ +80

7.0" TFT RTP Touch Screen Display Panel 40 Pin 24 Bit RGB Interface 2


7.0" TFT RTP Touch Screen Display Panel 40 Pin 24 Bit RGB Interface 3















5. Our Service



Shipping Policy:
1- Regularly, we shipped via Fedex/Dhl/UPS , express way (2-7 working days arrival), suitable for small order.
2- Sea shipping way, (25-40 days arrival), low cost, port to port, usually for large quantity order.

Custom/OEM:
Custom service is ok.

Sample Policy:
1- Usually we offer random sample for free but with your sample shipping freight charge paid.
2- We offer 1-2 pcs each sample randomly, if for more pcs, we will try send to you, if not and you must

request more pcs, we will charge same sample fees for make more pcs samples to you.

Easy order process:
Please kindly confirm us about product name, images, colors and quantity before you make the order .
