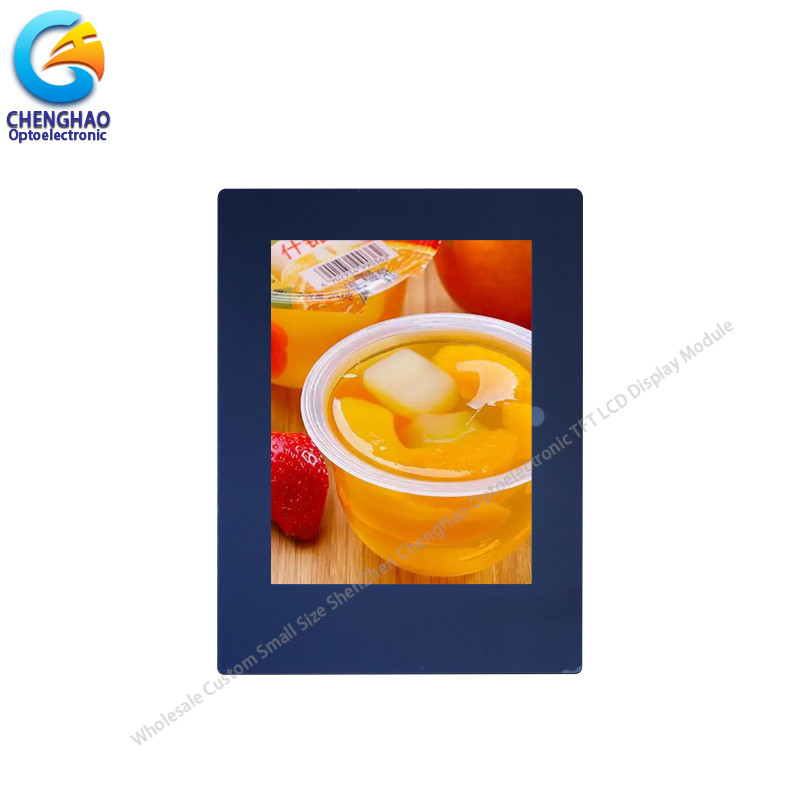

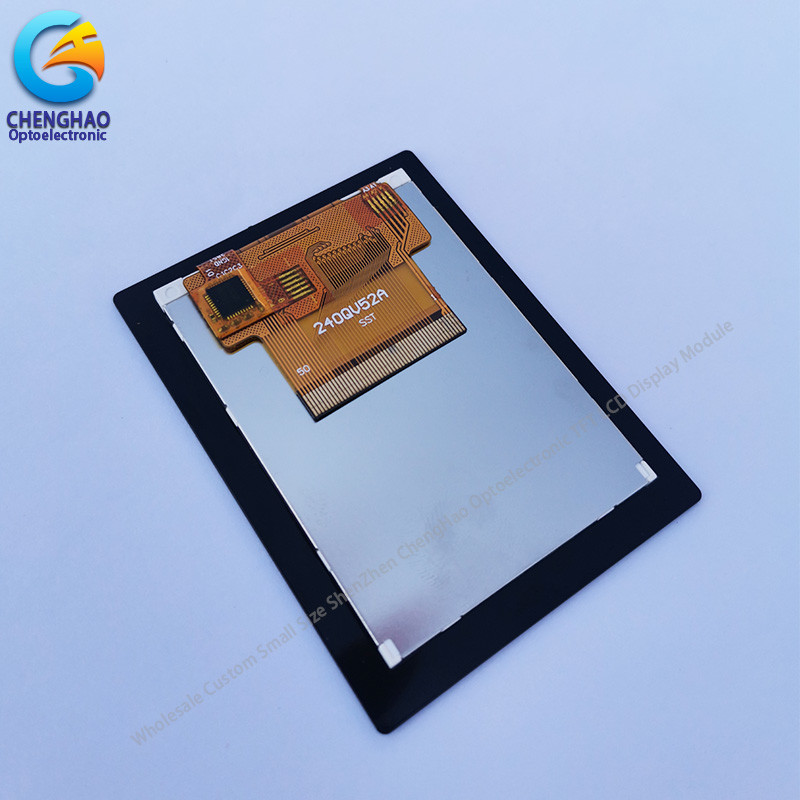

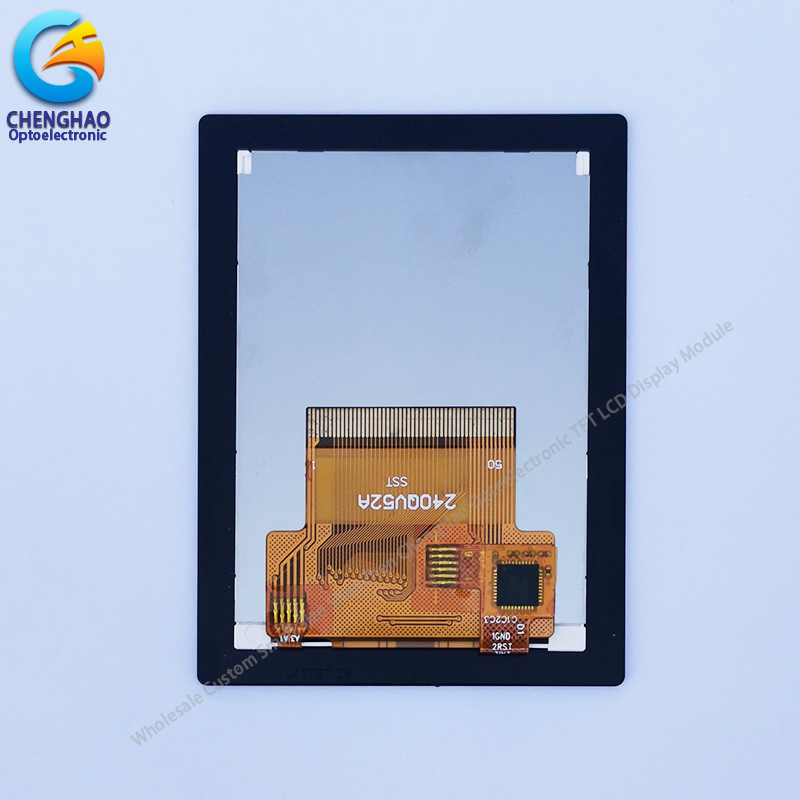

IPS LCD Touch Screen Monitor 2.4 Inch 240x320 All Viewing Direction TFT LCD Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV52A-CTB

Detail Information

Product Name: Lcd Touch Screen Monitor Module Type: 2.4"TFT + CTP
Display Mode: IPS / Transmissive / Normally Black Number Of Dots: 240*3(RGB)*320
Viewing Direction: ALL Module Size: 52.72(W)*70.26(H)*4.0(T)mm
TFT Active Area: 36.72(W)*48.96(H)mm
High Light:

IPS 2.4" LCD Touch Screen Monitor

,

240x320 LCD Touch Screen Monitor

,

Transmissive TFT LCD Module

Product Description

IPS Lcd Touch Screen Monitor 2.4 Inch 240x320 All Viewing Direction TFT Lcd Module



1. Specification of Thin Lcd Display



MODEL NO. CH240QV52A-CTB
Module type 2.4"TFT + CTP
Display Mode IPS / Transmissive / Normally Black
Number of Dots 240*3(RGB)*320
Viewing Direction ALL
Module size 52.72(W)*70.26(H)*4.0(T)mm
TFT Active area 36.72(W)*48.96(H)mm
Interface SPI,MCU,SPI+RGB
Luminace 300cd/m2



2. Description of  Color Lcd Display



ChengHao Display model CH240QV52A-CTB is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back- light, a capacitive touch panel and FPC.
This TFT LCD has a 2.4 (portrait) inch diagonally measured active display area with 240*320 dots resolution, while using ST7789 mounted on glass as control IC. TFT Lcd Module uses SPI / MCU / SPI + RGB multiple interfaces, It can display 262k / 65K colors. In addition, the module has a capacitive touch panel with I2C interface, which supports multi-touch.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.





3. Drawings of IPS Display Screen



Notes:
(1) Display Type : 2.4 inch Tft + CTP
(2) Viewing Direction : All
(3) Lcd Drive IC : ST7789
(4) Polarizer Mode : IPS / Transmission / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

IPS LCD Touch Screen Monitor 2.4 Inch 240x320 All Viewing Direction TFT LCD Module 0










4. Application of IPS Capacitive Touchscreen



Telecommunication Devices : Telephone,interphone,watch,tablet PC,radio,etc
Consumer Products : Camera,DVD player,toy, Cell Phone,game player,etc
Technical Equipment : Elevator controller,Industrial machine,etc
Office Automation : Printer,scanner,attendance machine,fax machine,etc
Home Appliances : Air-condition display,refrigerator,electric cooker,video doorbell,etc
Automobile : GPS,video player,speedometer,audio broadcast,etc
IT Products : Camera,handheld digital video,projector,media play,tablet PC,etc
Medical Equipment : Ultrasound machine,therapeutic equipment Blood pressure meter,etc



IPS LCD Touch Screen Monitor 2.4 Inch 240x320 All Viewing Direction TFT LCD Module 1








5. Why Choose Us ?



1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.
