5.0 Inch Ips Lcd Touch Screen Display 40 Pin 2 Lane Mipi Dsi Interface And Use Icn9700 Driver Ic

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500FW09A-CT

Detail Information

Product Name: 5.0 Inch Lcd Touch Screen Display Dot Arrangement: 480×(RGB)×854 Nits
Size: 5 Inch Module Size: 75.1W)×128.9(H)×3.625(T) Mm
TFT Active Area: 61.56(W)×109.5255(H) Mm Pixel Pitch: 0.12825(W)×0. 12825(H) Mm
Tft Interface: 2 Lane-MIPI DSI
High Light:

5.0 inch ips lcd touch screen

,

40 pin ips lcd touch screen

,

5 inch ips tft lcd display

Product Description

5.0 Inch IPS Lcd Touch Screen Display 40 Pin 2 Lane MIPI DSI Interface And Use ICN9700 Driver IC



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 5"TFT --
Dot arrangement 480×(RGB)×854 dots
Driver IC ICN9700 --
Module size 75.1W)×128.9(H)×3.625(T) mm
Active area 61.56(W)×109.5255(H)  mm
Dot pitch 0.12825(W)×0. 12825(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 12 White LED --
Weight TBD g



2. Description



ChengHao Display model CH500FW09A-CT is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch panel and FPC.

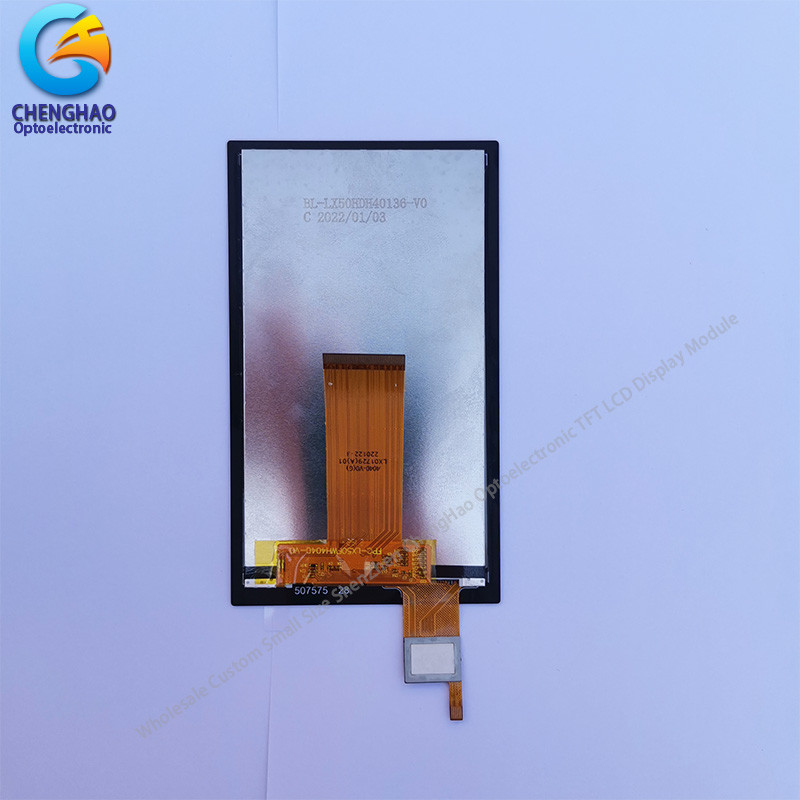

5.0 Inch Ips Lcd Touch Screen Display 40 Pin 2 Lane Mipi Dsi Interface And Use Icn9700 Driver Ic 0


This TFT LCD has a 5 (Lvertical screen) inch diagonally measured active display area with 480 horizontal by 854 vertical pixel.
The driver used for this project is the ICN9700 and can display 65K/262K/16M (optional) colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 2 lane-MIPI DSI interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.



3. Drawings



Notes:
(1) Display Type : 5 inch Tft
(2) Viewing Direction : All
(3) Lcd Drive IC : ICN9700
(4) Polarizer Mode : IPS / Transmissive / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

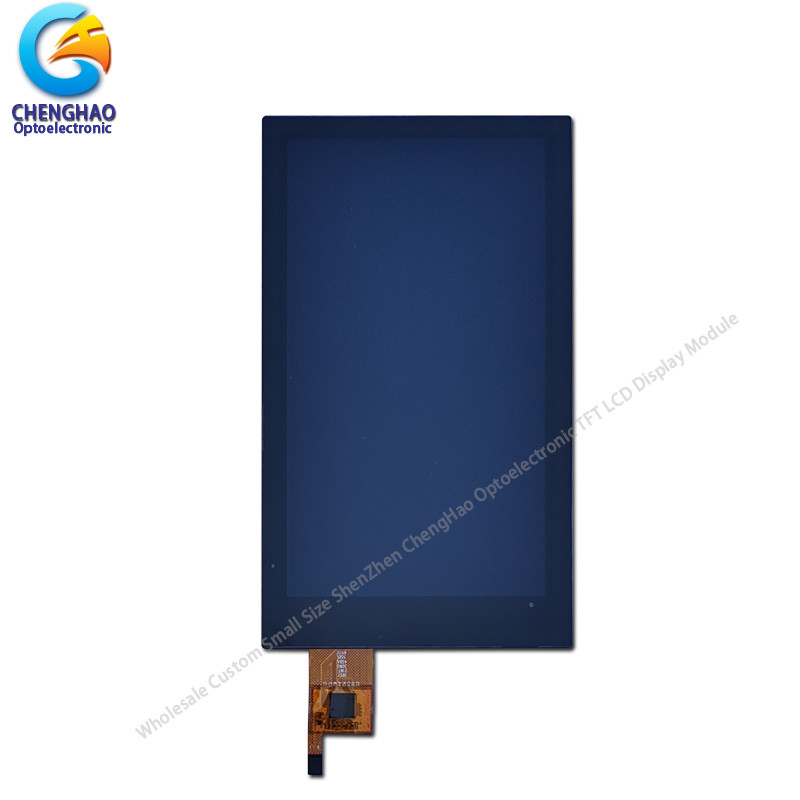

5.0 Inch Ips Lcd Touch Screen Display 40 Pin 2 Lane Mipi Dsi Interface And Use Icn9700 Driver Ic 1
