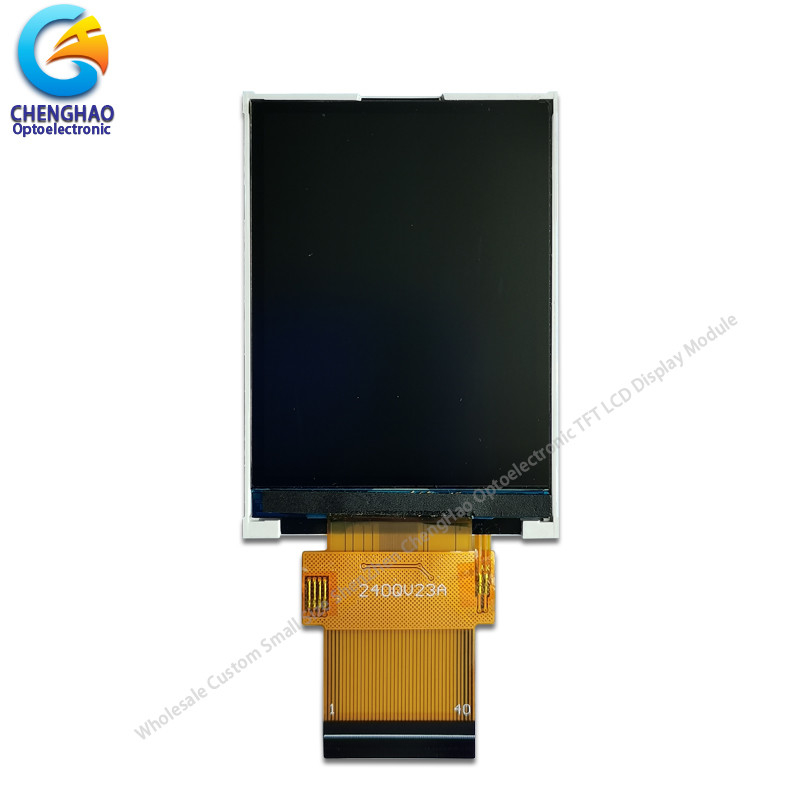

1.8 Inch 24 Pin Tft Lcd Display Colour Module 6 O'Clock 128*160 Nits Custom Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH180QQ20A

Detail Information

Product Name: Colour Lcd Module LCD Type: 1.77’’TFT +RTP
Dot Arrangement: 128(RGB)×160 Dots Color Filter Array: RGB Vertical Stripe
Display Mode: TN / Transmissive / Normally White Viewing Direction: 6 O’clock
Gray Scale Inversion Direction: 12 O’clock
High Light:

1.8 inch tft lcd display

,

24 pin tft lcd display

,

custom 1.8 spi 128x160 tft module

Product Description



1.8 Inch 24pin Colour Lcd Module 6 O'clock 128*160 Nits Custom Lcd Display Panel



1. Specification



LCD Name 1.8 Inch 24pin Colour Lcd Module 6 O'clock 128*160 Nits Custom Lcd Display Panel
LCD Size  1.77 inch LCD Module / 1.8 inch LCD Screen
Display Mode TN / Transmissive / Normally White / Sunlight Readable
Touch Panel Without (Support Customizable)
Resolution 128(RGB)×160
Outline Dimension 34.7(W)×46.7(H)×3.5(T) mm
Active Area 28.032(W)×35.04(H) mm
Brightness 500 cd/m2
Contrast Ratio 500:1
Interface 8-bit 8080-series system interface
Connector 24 Pin FPC
Backlight 4pcs White LED
Driver IC ST7735S
Color Depth 65k/262k/16.7M(optional)
Viewing Direction 6 o’clock
Supply Voltage 3.2V
Supply Current 40mA
Power dissipation 128mW
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃





2. Description




Item Name : 1.8 Inch 24pin Colour Lcd Module 6 O'clock 128*160 Nits Custom Lcd Display Panel
Color :262K / 65K /16.7M
Contrast Ratio : 500:1
Brightness : 500 cd/m2
Outline Dimension : 34.7(W)×46.7(H)×3.5(T) mm
Active Area : 28.032(W)×35.04(H) mm
Resolution :128x160 dots
Dots Pitch : 0.219(W)×0.219(H) mm
Drive Power Supply Voltage 3.2V
Viewing Angle : 6:00
Operation Temperature -20°C ~ +70°C
Storage Temperature -30°C~ +80°C
Display Mode : TFT LCD
Support Touch panel Type : Resistive touch panel or capacitive touch panel
FPC Lenght FPC connector type
IC : ST7735
IC Packaging COG





3. Drawings



Notes:
(1) Display Type : 1.8" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ST7735S
(4) Polarizer Mode : Transmissive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
