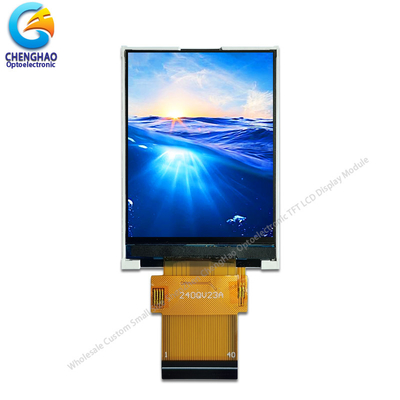

240x320 Dots Small LCD Touch Screen 2.4 Inch ST7789V 4 Lines 8 Bit IPS RTP

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV23A

Detail Information

Product Name: 2.4 Inch Lcd Screen LCD Type: 2.4"TFT
Dot Arrangement: 240(RGB)×320 Dots Display Mode: TN / Transmission/ Normally White
Viewing Direction: 6 O’clock GrayScaleInversionDirection: 12 O’clock
High Light:

240x320 Dots Small LCD Touch Screen

,

IPS RTP Small LCD Touch Screen

,

TN Transmission TFT LCD Screen

Product Description



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 2.4’’TFT --
Dot arrangement 240(RGB)× 340 dots
Driver IC ST7789V --
Module size 42.72(W)×60.26(H)×2.3(T) mm
Active area 36.72(W)×48.96(H) mm
Dot pitch 0.153(W)×0.153(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 4 White LED In Paralle --
Weight TBD g





2. Description



* CH240QV23A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
* It is composed of a TN TFT LCD panel, driver IC, FPC, a back-light .
* 2.4 inch RGB TFT LCD Module.
* It is 240*3(RGB)*320 Dots Hight Resolution TFT Screen Module , clear display
* It is equipped with a high backlight of 300 cd/m2 and is normally readable in sunlight .

* PS : Backlight with different brightness options from 200 - 1500 cd/m2 are available.
* RoHS & REACH compliant.


* Using Input Interface :

   4-lines_8bit / 3-lines_9bit SPI

   8-/9-/16-/18-bit8080system interface

   6-/16-/18-bitRGB interface


* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* Specific touch panel can be designed & customized.
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.



3. Drawings



Notes:
(1) Display Type : 2.4" TFT
(2) Viewing Direction : 6 o’clock

(3) Color filter array: RGB vertical stripe
(4) Lcd Drive IC : ST7789V
(5) Polarizer Mode : TN / Transmission/ Normally White
(6) Operating Temp : -20~70 ℃
(7) Storage Temp : -30~80 ℃
(8) Unmarker Tolerance: ±0.20
(9) Protection : ROHS
