Transmissive SPI Tft Lcd Monitor 3 Line 480×854 Dots Lcd Touch Screen Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500FW08A

Detail Information

Product Name: 5 Tft Lcd Color Monitor Module Type: 5.0"TFT
Display Mode: IPS/Transmissive/Normally Black Number Of Dots: 480*3(RGB)*854
Viewing Direction: 80/80/80/80 Module Size: 66.1(W)*120.4(H)*2.9(T)mm
TFT Active Area: 61.56(W)*109.5255(H)mm
High Light:

Transmissive SPI Tft Lcd Monitor

,

3 Line Tft Lcd Monitor

,

480×854 Dots Lcd Touch Screen Module

Product Description

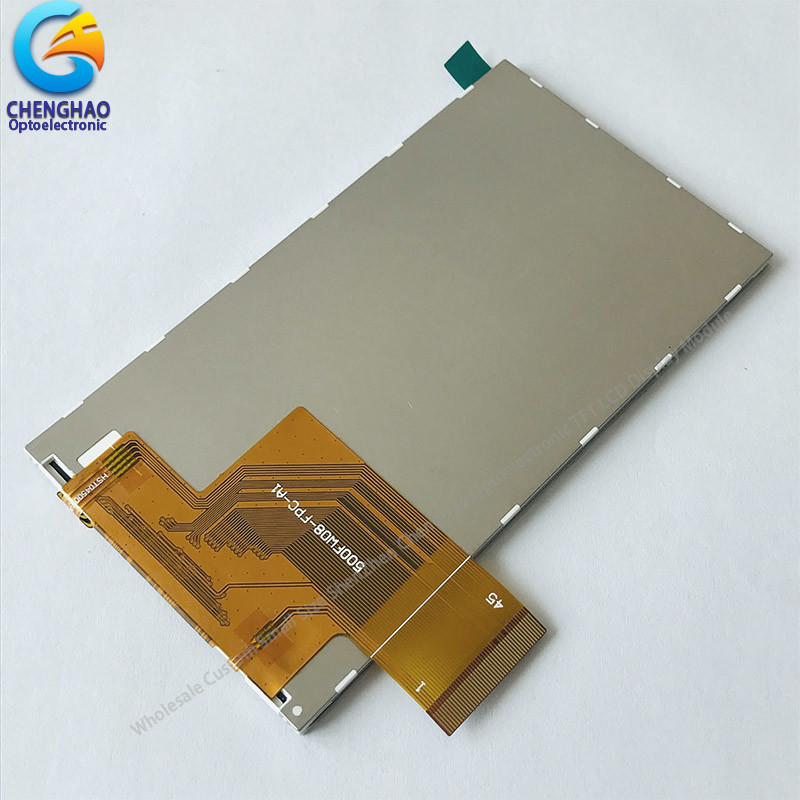

5 Tft Lcd Color Monitor Custom 3 Line SPI 480*854 Dots Lcd Touch Screen Module



1. Specification



ITEM STANDARD VALUES UNITS
MODEL NO. CH500FW08A --
Module type 5.0"TFT --
Display Mode IPS/Transmissive/Normally Black --
Number of Dots 480*3(RGB)*854 dots
Viewing Direction 80/80/80/80 --
Module size 66.1(W)*120.4(H)*2.9(T) mm
TFT Active area 61.56(W)*109.5255(H) mm





2. Description



CH500FW08A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
* It is composed of a TFT LCD panel, driver IC, FPC, a back-light and Resistive Touch Panel .
* 5 inch color TFT LCD Module.
* It is 480*3(RGB)*854 Dots Hight Resolution TFT Screen Module , clear display
* It is equipped with a high backlight of 300 cd/m2 and is normally readable in sunlight . Backlight with different brightness options from 200 - 1500 cd/m2 are available.
* RoHS & REACH compliant.
* Using 3 line SPI + 24bit RGB Interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* Specific touch panel can be designed & customized.
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.



3. Drawings



Notes:
(1) Display Type : 5" TFT
(2) Viewing Direction : Free Viewing Angle
(3) Lcd Drive IC : JD9161 or  COMPATIBLE
(4) Polarizer Mode : Transmissive/ negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

Transmissive SPI Tft Lcd Monitor 3 Line 480×854 Dots Lcd Touch Screen Module 0




4. Application





Transmissive SPI Tft Lcd Monitor 3 Line 480×854 Dots Lcd Touch Screen Module 1




5. Our Service



(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.



6. Products Quality Assurance



(1)High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.


(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials


(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.





7. FAQ



Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.



Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.



Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .



Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.



Q9: How long is your warranty period?
A: We guarantee the quality for one year.
