4.3inch GT911 PCAP LCD Touch Screen Module With Capacitive Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WV17A-CT

Detail Information

Product Name: 4.3 Pcap Touch Screen Module CTP Type: G+F+F
Surface Treatment: 6H CTP Driver IC: GT911
Module Size: 66.26(W)×113.9(H)×3.35(T) Mm TFT/CTP Active Area: 56.16(W)×93.6(H) Mm
Dot Pitch: 0.117(W)×0.117(H) Mm
High Light:

PCAP LCD Touch Screen Module

,

GT911 LCD Touch Screen Module

,

GT911 4.3 inch LCD Screen

Product Description

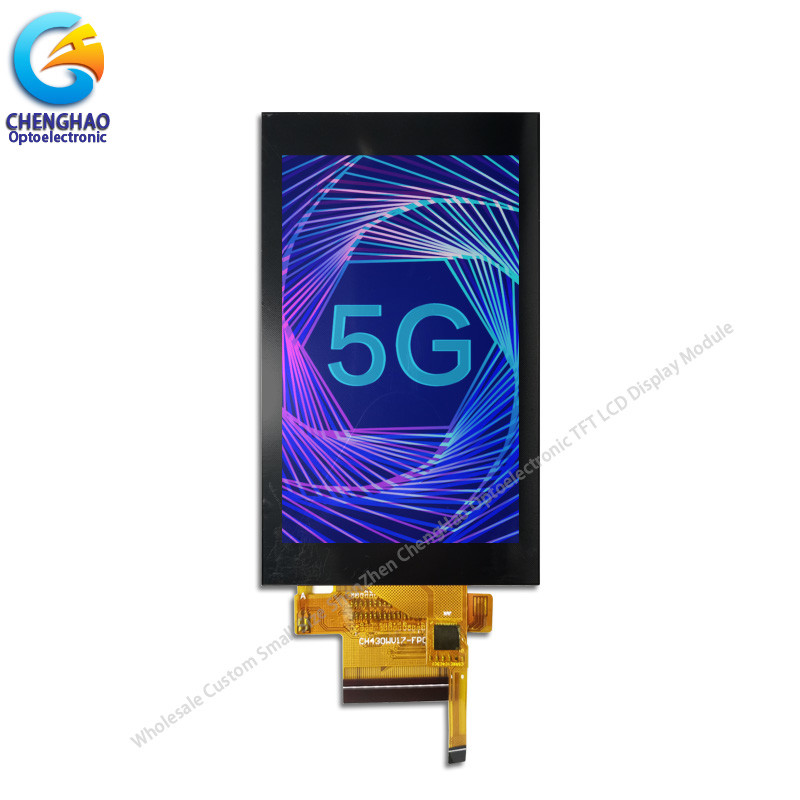

4.3inch GT911 PCAP LCD Touch Screen Module With Capacitive Panel



4.3 Pcap Touch Screen Module 480 800 Fuel Dispenser Lcd Display With Capacitive Panel



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 4.3’’TFT+Capacitive Touch Panel --
Resolution 480*800 dots
Control IC NT35510 --
TP Type G+F+F
TP IC GT911
Interface 8-/16-/18-/24-biti80-system interface
SPI+16-/18-/24-bitRGB interface
MIPI DSI
--
Weight TBD --



2. Description



ChengHao Display model CH430WV17A-CT is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch panel and FPC.

This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WVGA (480 horizontal by 800 vertical pixel) resolution.

The driver used for this project is the NT35510 or compatible and can display 16M colors by 24 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Quick Detail



* LCD name: 4.3 Pcap Touch Screen Module 480 800 Fuel Dispenser Lcd Display With Capacitive Panel
* Part No.: CH430WV17A-CT
* Size.: 4.3inch
* With touch panel or not: Yes
* Touch type: Capacitive Touch Panel
* Display type: TFT+CTP
* Display colors: 16.7M ( Optional )
* Pixels : 480*800 dots

* Pixel pitch: 0.0117×0.0117 cm
* Viewing direction: Free Viewing Angle
* Driver IC: NT35510
* Display mode: IPS / Transmissive / Normally Black
* Overall size: 6.626×11.39×0.335 cm
* TFT / CTP Active Area: 5.616×9.36 cm

* Luminance: 400 Nits
* Contrast: 800:1
* Interface type: 8-/16-/18-/24-biti80-system interface
                          SPI+16-/18-/24-bitRGB interface
                          MIPI DSI
* Pin NO.: 20pins
* Pin pitch: 0.05 cm
* Connecting type: Connector type
* Input voltage: 3.3V
* Backlight type and color: LED backlight / white
  Backlight: 8 White LED in serial
  If=20mA, Vf =25.6
* LED Life span: 20000h





3. Drawings



Notes:
(1) Display Type : 4.3" TFT
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : NT35510
(4) Polarizer Mode : IPS/ Transmissive/ NormallyBlack
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



4.3inch GT911 PCAP LCD Touch Screen Module  With Capacitive Panel 0


4. Application





* Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines, instrumentation, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment and other fields .

* Such as smart wearable devices (such as watches, fingertip pulse meters), car display devices (car central

control display, navigation display/headrest display, etc.), payment financial equipment (card reader, cash

register, etc.), customer terminal equipment (refrigerator, Coffee machine, smart rice cooker, etc.), elevator

display equipment (elevator digital display), industrial control equipment (industrial display), instrument

measuring equipment (detector, monitor), artificial intelligence equipment (smart robot), medical equipment

(heart rate monitoring display) ), smart home equipment (kitchen smoke machine), security identification

equipment (smart access control, punch card machine, etc.), vending equipment (vending machine), etc.



4.3inch GT911 PCAP LCD Touch Screen Module  With Capacitive Panel 1


5. Why Choose Us ?





1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.



7. FAQ



Q1: Are you manufacturer ?
A: Yes, we are manufacturer.

Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.

Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.

Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.

Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
