1.77" Clear TFT LCD Display Wide Temp 128x160 Custom LCD Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH180QQ21A

Detail Information

Product Name: Tft Clear Screen Lcd Type: 1.77" Tft
Pixel: 128*160 Dots Viewing Direction: 6:00
Size: 1.77inch Driver: ST7735S
Weight: TBD G
High Light:

1.77" TFT LCD Display

,

ST7735S TFT LCD Display

,

ST7735S Custom LCD Display

Product Description

1.77" Clear TFT LCD Display Wide Temp 128x160 Custom LCD Display



Factory Wholesale 1.77" Tft Clear Screen Wide Temp 128x160 Custom Lcd Display



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 1.77’’TFT --
Resolution 128*160 dots
Module size 34.7(W)×46.7(H)×2.3(T) mm
Active area 28.032(W)×35.04(H) mm
Dot pitch 0.219(W)×0.219(H) mm
Operating temperature -20~+70
Storage temperature -30~+80
Back Light 2pcs White LED --



2. Description



Display model CH180QQ21A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a
switching device.

This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 1.77” ( 1.77 inch diagonally
measured active display area with 5760 x 720 dot (1920 horizontal by 720 vertical
pixel) resolution.





3. Drawings

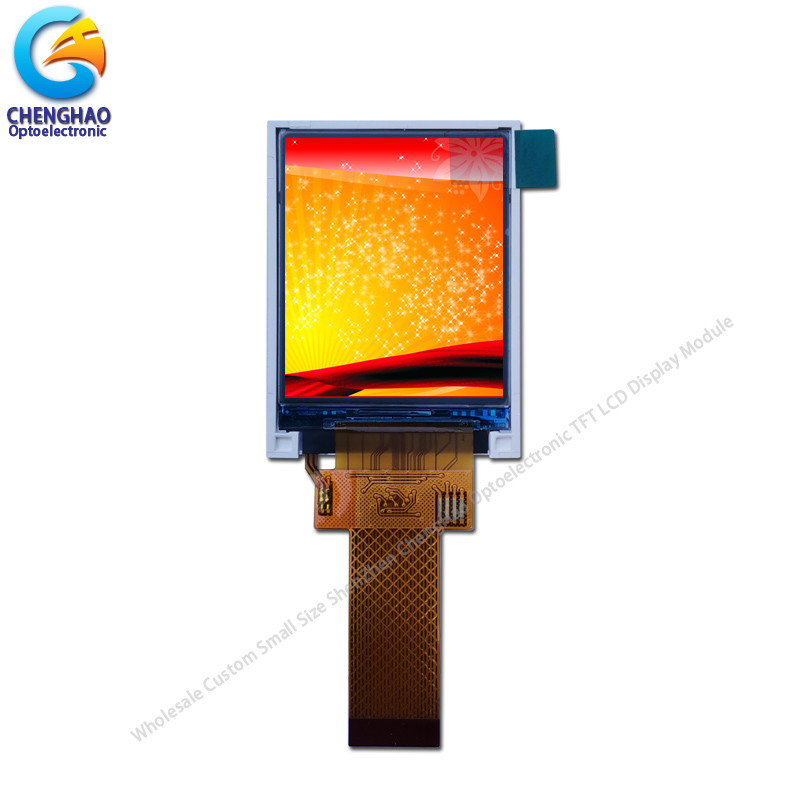

1.77" Clear TFT LCD Display Wide Temp 128x160 Custom LCD Display 0


4. Application



* Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines, instrumentation, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment and other fields .

* Such as smart wearable devices (such as watches, fingertip pulse meters), car display devices (car central

control display, navigation display/headrest display, etc.), payment financial equipment (card reader, cash

register, etc.), customer terminal equipment (refrigerator, Coffee machine, smart rice cooker, etc.), elevator

display equipment (elevator digital display), industrial control equipment (industrial display), instrument

measuring equipment (detector, monitor), artificial intelligence equipment (smart robot), medical equipment

(heart rate monitoring display) ), smart home equipment (kitchen smoke machine), security identification

equipment (smart access control, punch card machine, etc.), vending equipment (vending machine), etc.

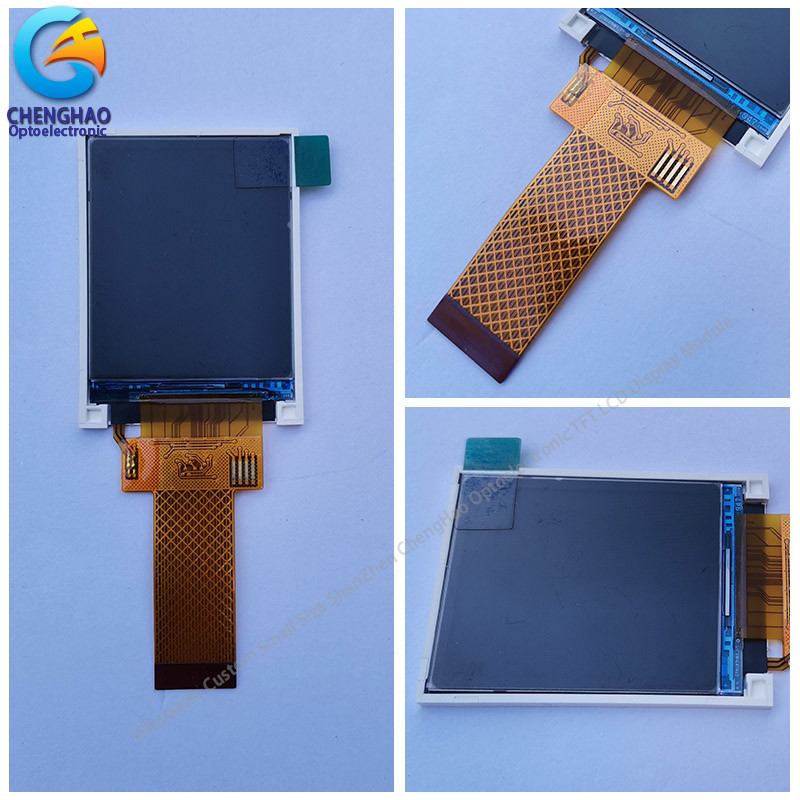

1.77" Clear TFT LCD Display Wide Temp 128x160 Custom LCD Display 1




5. Our Service



1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.

6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

7. All goods will be inspected and tested before shipment.

8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.



7. FAQ



Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.

Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production

Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.

Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.

Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply

Q: How can I trust your product quality?
A:The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
