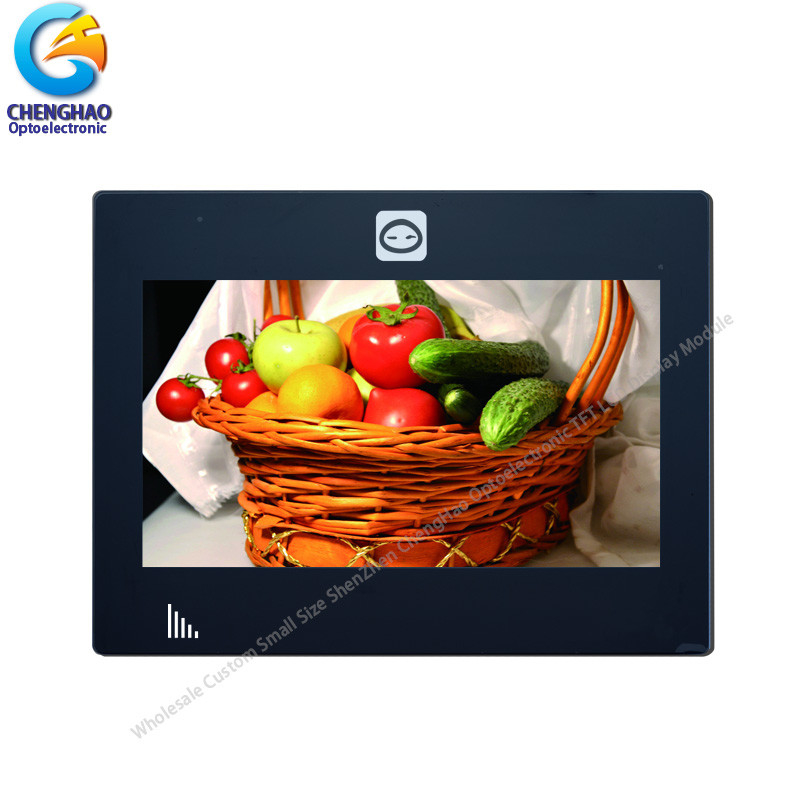

850 Luminance TFT LCD Capacitive Touchscreen Sunlight Readable

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV05A-CT

Detail Information

Product Name: 850 Luminance Sunlight Readable Lcd Monitor Surface Treatment: 7H
CTP Driver IC: FT5426 Module Size: 183(W)×139(H)×8.83(T)mm
TFT/CTPActive Area: 154.08(W)×85.92(H)mm TFT Dot Pitch: 0.1926(W)×0.1790(H)mm
Interface: 24-bit Parallel RGB Interface Back Light: 27 White LED
High Light:

850 Luminance TFT LCD Capacitive Touchscreen

,

FT5426 TFT LCD Capacitive Touchscreen

,

850 Luminance Sunlight Readable LCD Monitor

Product Description

850 Luminance TFT LCD Capacitive Touchscreen Sunlight Readable



850 Luminance Sunlight Readable Lcd Monitor 800x480 Multi Touch Lcd Capacitive Screen



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 7.0’’TFT+CTP --
Dot arrangement 800×3(RGB)×480 dots
Color Pixel Arrangement RGB vertical stripe --
Display Mode TN / Transmissive/Normally white --
Viewing Direction 12 o’clock --
GrayScaleInversion Direction 6 o’clock --
CTP type G+G --
Surface Treatment 7H --
CTP Driver IC FT5426 --
Interface 24-bit Parallel RGB Interface --



2. Description



* CH700WV05A-CT is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC [ FT5426], backlight [ FT5426 ], Capacitive touch panel .

* It is 800*480 Dots TFT module

* 7inch color screen display
* Using RGB Interface

* Backlight with 850 cd/m2 luminance
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.


* If you can't find a suitable one, contact us to get a recommendation.



3. Drawings



Notes:
(1) Display Type : 7 inch TFT+CTP
(2) Viewing Direction : 12:00
(3) CTP Drive IC : FT5426
(4) Polarizer Mode : Transmissive / positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



850 Luminance TFT LCD Capacitive Touchscreen Sunlight Readable 0




4. Application



Our products are widely used for banking machines, communication tools, household appliances, automobile

instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.



850 Luminance TFT LCD Capacitive Touchscreen Sunlight Readable 1


5.Quick Detail



* LCD name: 850 Luminance Sunlight Readable Lcd Monitor 800x480 Multi Touch Lcd Capacitive Screen
* Model Name : CH700WV05A-CT
* Size / inch : 7.0
* With touch panel or not: Yes
* Touch type: CTP
* Display type: TFT/TN
* Resolution (pixels): 800*480 dots
* Viewing direction : 12:00
* CTP IC : FT5426

* LCM Overall Size : 183(W)×139(H)×8.83(T) mm

* Active Area : 154.08(W)×85.92(H) mm

* TFT Dot Pitch : 0.1926(W)×0.1790(H) mm

* Interface : RGB Interface

* Operating temperature : -20~+70 ℃

* Storage temperature : -30~+80 ℃

* Back Light : 27 pcs White LED

* Weight : TBD g

* Display mode: TN / Transmissive/Normally white
* Backlight :850 nits
* Connecting type: Connector type

* CTP NOTE:

  1.Glass Lens+ITO Glass+FPC+adhesive

     Glass Lens: 2.0 mm

     GLASS sensor: 0.55 mm

     IC: FT5426

  2.Operation Voltage : 2.8~3.3 v

  3.Transmittance : ≥87 %

  4.The cover hardness : 7H





6. FAQ



Q1: How does your factory do regarding quality control?
A1: Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has

gained ISO9001, RoHS, CE certification.



Q2: Can I get Customize product?
A2: For sure that OEM service is availiable.



Q3: Where is your factory located? How can I visit there?
A3: We have two factories, one is in Shenzhen, the other in HuNan Province. Welcome to visit our factory. We could pick

you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
