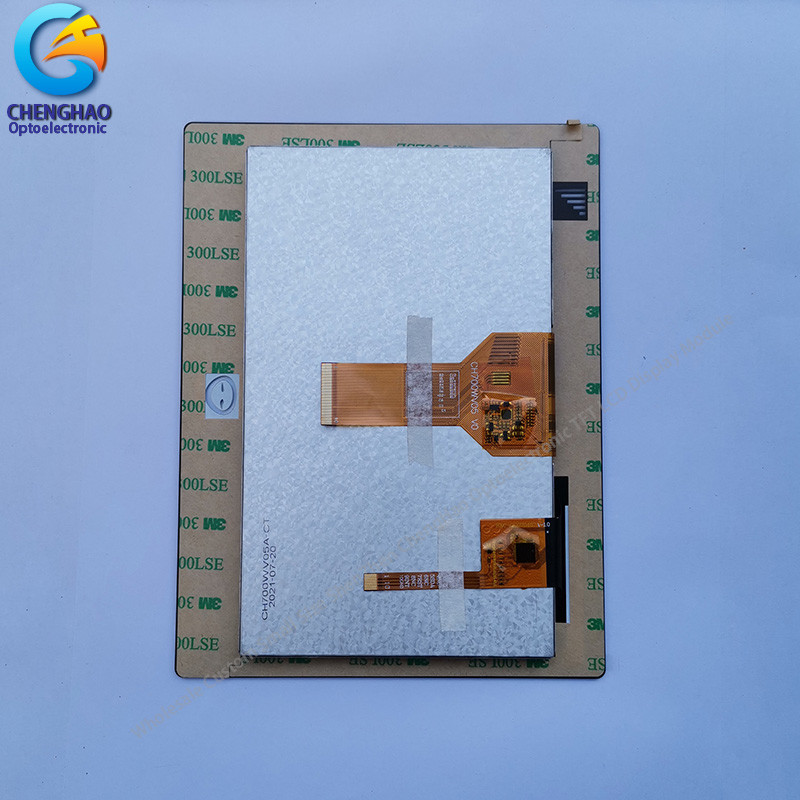

7.0 Inch Capacitive Touch Screen Display With 24 Bit Parallel RGB Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV05A-CT

Detail Information

Product Name: 7.0 Inch Capacitive Touch Screen Display LCD Type: 7.0"TFT+CTP
Dot Arrangement: 800×3(RGB)×480 Color Pixel Arrangement: RGB Vertical Stripe
Display Mode: TN / Transmissive/Normally White Viewing Direction: 12o’clock
GrayScaleInversion Direction: 6o’clock CTP Type: G+G
High Light:

7Inch Capacitive Touch Screen Display

,

800x480 Capacitive Touch Screen Display

,

ROHS 7.0 Inch LCD Touch Screen

Product Description

7.0 Inch Capacitive Touch Screen Display With 24 Bit Parallel RGB Interface



7.0 Inch Capacitive Touch Screen Display 800*480 Industrial TFT Display With 24 Bit Parallel RGB Interface



1. Specification



Model Name CH700WV05A-CT
Number of dots 800*480
Module size 183(W)×139(H)×8.83(T) mm
TFT/CTPActive area 154.08(W)×85.92(H) mm
TFTDot pitch 0.1926(W)×0.1790(H) mm
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Back Light 27 White LED
Weight TBD g
Size / Inch 7.0 inch
Backlight Type and Color 27 White LED


2. Description



* CH700WV05A-CT is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 800(RGB)x480 resolution TFT LCD module,clear display

* 7-inch color screen display
* Using 24-bit Parallel RGB Interface

* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.


* If you can't find a suitable one, contact us to get a recommendation.


3. Drawings

Notes:
(1) Display Type : 7inch TFT+CTP
(2) Viewing Direction : 12o’clock
(3) CTP Drive IC : FT5426
(4) Polarizer Mode : Transmissive / positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
7.0 Inch Capacitive Touch Screen Display With 24 Bit Parallel RGB Interface 0
4. Application

* Products are widely used in general communications, household appliances, industrial control, medical
equipment, POS machines, instrumentation, GPS navigation, digital photo frames, netbooks, financial
electronics, communication electronics, consumer electronics, information appliances, culture, education,
sports and entertainment and other fields .
* Such as watches, fingertip pulse meters, car central control display, navigation display/headrest display,
card reader, cash register, refrigerator, Coffee machine, smart rice cooker,elevator digital display, industrial
display, detector, monitor, smart robot,heart rate monitoring display, kitchen smoke machine,smart access
control, punch card machine, vending machine, etc.

7.0 Inch Capacitive Touch Screen Display With 24 Bit Parallel RGB Interface 1

5.Quick Detail

* LCD name: 7.0 Inch Capacitive Touch Screen Display 800*480 Industrial TFT Display With 24 Bit Parallel RGB Interface
* Part No.: CH700WV05A-CT
* Size : 7 inch
* With touch panel or not: Yes
* Touch type: Capacitive
* Display type: TFT
* Resolution (pixels): 800*3(RGB)*480
* Viewing direction : 12 o'clock
* CTP Controller IC : FT5426
* LCM outline : 183(W)×139(H)×8.83(T) mm
* TFT area : 154.08(W)×85.92(H) mm
* Pixel pitch: 0.1926(W)×0.1790(H) mm
* Interface : 24-bit Parallel RGB Interface
* Operating temperature : -20~+70 ℃
* Storage temperature : -30~+80 ℃
* Back Light : 27 White LED
* Weight : TBD g
* Display mode: TN / Transmissive/Normally white
* Luminance:850 cd/m2
* Connecting type: Connector type
* CTP NOTE:
  1.Glass Lens+ITO Glass+FPC+adhesive
      Glass Lens:2.0mm
      GLASS sensor:0.55mm
       IC: FT5426
  2.Operation Voltage : 2.8~3.3 v
  3.Transmittance : ≥87 %
  4.The cover hardness : 7H



6. FAQ

Q1: How does your factory do regarding quality control?
A1: Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has
      gained ISO9001, RoHS, CE certification.

Q2: Can I get Customize product?
A2: For sure that OEM service is availiable.

Q3: Where is your factory located? How can I visit there?
A3: We have two factories, one is in Shenzhen, the other in HuNan Province. Welcome to visit our factory. We could pick
      you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
