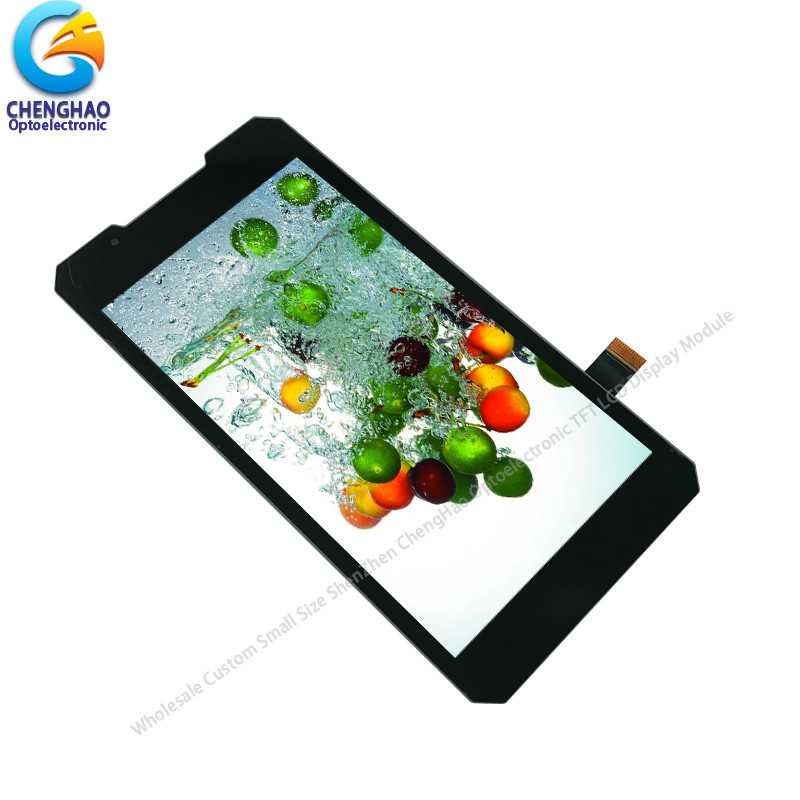

5.5 Inch TFT Capacitive Touchscreen 1080x1920 Pixel LTPS Transmissive

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH550FH01A-CT

Detail Information

Product Name: 5.5 Inch Tft Capacitive Touchscreen Luminace: 650cd/m2
Backlight Type: White LED CTP Interface: I2C
TFT Interface: 4-lane MIPI Outline Dimension: 77.1(W)×151.77(H)×3.39(T) Mm
Display Area: 68.04(W)×120.96(H) Mm TFT Dot Pitch: 0.063(W)*0.063(H)mm
High Light:

5.5 Inch TFT Capacitive Touchscreen

,

1080x1920 TFT Capacitive Touchscreen

,

1080x1920 5.5 Inch LCD Screen

Product Description

5.5 Inch TFT Capacitive Touchscreen 1080x1920 Pixel LTPS Transmissive



5.5 Inch TFT Capacitive Touchscreen 1080x1920 Pixel High Definition Lcd Display LTPS Transmissive



1. Specification



Product Name 5.5 Inch Tft Capacitive Touchscreen
Part No CH550FH01A-CT
Luminace 650cd/m2
Backlight Type White LED
CTP Interface I2C
TFT Interface 4-lane MIPI
Outline Dimension 77.1(W)×151.77(H)×3.39(T)
Display Area 68.04(W)×120.96(H)
TFT Dot pitch 0.063(W)*0.063(H)mm
View area 68.44(W)×121.36(H) mm
TFT outline 70.78(W)×129.17(H)×1.7(T) mm


2. Description



* ChengHao Display model CH500WV03A-CTB is a color active matrix thin film transistor (TFT) liquid crystal

display (LCD) that uses amorphous silicon TFT as a switching device.

* This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch

panel and FPC.



TFT Driving IC : HX8399C

High brightness back-light : 650 cd/m2

Touch Panel : capacitive touch panel

CTP Driver IC : GT911



* This TFT LCD has a 5.5 inch diagonally measured active display area with 1080*1920 HD (1080 horizontal

by 1920 vertical pixel) resolution.



* In addition, FPC can also be customized according to customer requirements, such as modifying back-light and

CTP structure, interface definition, etc.

* RoHS Compliance & Halogen Free.



3. Drawings



Notes:
(1) Display Type : 5.5inchTFT+CTP
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : HX8399C
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



5.5 Inch TFT Capacitive Touchscreen 1080x1920 Pixel LTPS Transmissive 0




4. Application



* Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines, instrumentation, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment and other fields .

* Such as smart wearable devices (such as watches, fingertip pulse meters), car display devices (car central

control display, navigation display/headrest display, etc.), payment financial equipment (card reader, cash

register, etc.), customer terminal equipment (refrigerator, Coffee machine, smart rice cooker, etc.), elevator

display equipment (elevator digital display), industrial control equipment (industrial display), instrument

measuring equipment (detector, monitor), artificial intelligence equipment (smart robot), medical equipment

(heart rate monitoring display) ), smart home equipment (kitchen smoke machine), security identification

equipment (smart access control, punch card machine, etc.), vending equipment (vending machine), etc.



5.5 Inch TFT Capacitive Touchscreen 1080x1920 Pixel LTPS Transmissive 1


5. Quick Detail



*LCD name: 5.5 Inch Tft Capacitive Touchscreen 1080x1920 Pixel High Definition Lcd Display LTPS Transmissive
* Part No.: CH550FH01A-CT
* Size : 5.5 inch
* With touch panel or not: Yes
* Touch type: Capacitive
* Display type: TFT
* Resolution (pixels): 1080(RGB)*1920
* Viewing direction : 80/80/80/80
* TFT Controller IC : HX8399C

* LCM outline : 77.1(W)×151.77(H)×3.39(T) mm

* TFT outline : 70.78(W)×129.17(H)×1.7(T) mm

* View area : 68.44(W)×121.36(H) mm

* Active area : 68.04(W)×120.96(H) mm

* Pixel pitch: 63(W)×63(H) um

* Interface : MIPI

* Operating temperature : -20~+70 ℃

* Storage temperature : -30~+80 ℃

* Back Light : 14 White LED

* Weight : TBD g

* Display mode: LTPS/ Transmissive/ NormallyBlack
* Luminance: 650 cd/m2
* Connecting type: Connector type
* Input voltage: 3.3V

* SENSOR FILM: 0.425mm

* CTP Driver IC : GT911

* Operation Voltage : 2.8~3.3 V

* Transmittance : ≥87 %

* The cover hardness : 6H
* LED Life span: 20000h
