3.5 inch Square TFT Display 320*240 Pixel With 300cd/M2 Luminance

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350QV01B

Detail Information

Product Name: 3.5" Square Tft Display LCD Type: 3.5’’TFT
Dot Arrangement: 320(RGB)×240 Color Filter Array: RGB Vertical Stripe
Display Mode: TN / Transmission / Normally White Viewing Direction: 6 O’clock
Driver IC: HX8238D
High Light:

3.5Inch Square TFT Display

,

300cd M2 Square TFT Display

,

ROHS 3.5 Inch TFT Display

Product Description

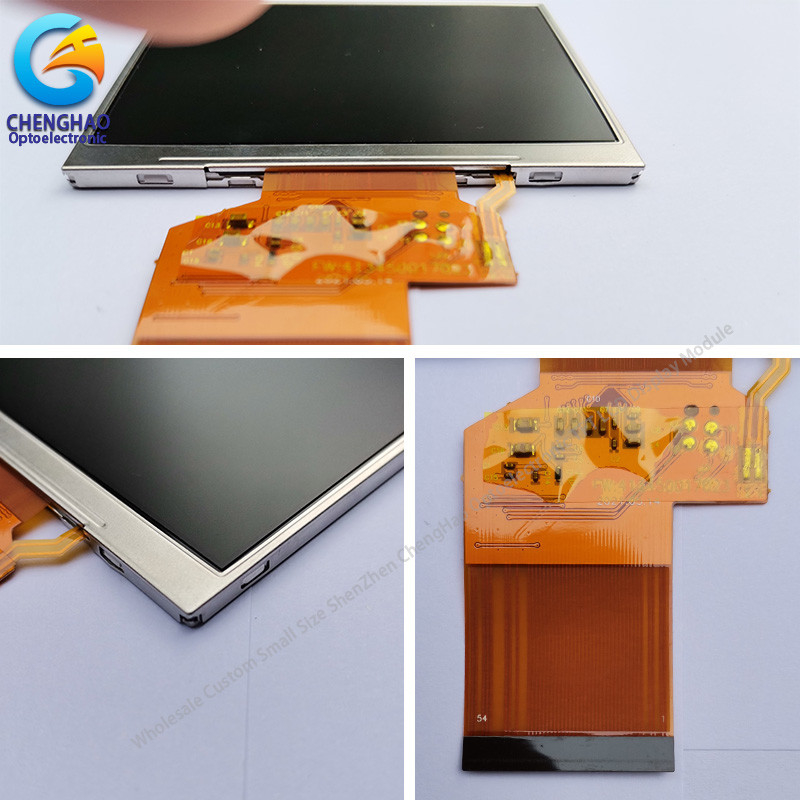

3.5 Inch Square TFT Display 320*240 Pixel With 300cd/M2 Luminance



3.5" Square Tft Display 320*240 Pixel Tn Lcd Module With 300 Cd/M2 Luminance



1. Specification of 3.5" Square Tft Display



ITEM STANDARD VALUES UNITS
Dot pitch 0.219(W)×0. 219(H) mm
Interface 24bit RGB interface --
Operating temperature -20 ~ +70
Storage temperature -30 ~ +80
Back Light 6 White LED In Serial --
Weight TBD  g
Size Inch 3.5  inch


2. Quick Detail of 3.5" Square Tft Display



Product Name/Keyword: 3.5" 320*240 Pixel Square Tft Display

Resolution: 320(RGB)*240

Colour: 16.7M colour, 24-bit RGB

Touch panel: No

Voltage: 5V(±0.2V error is allowed)

Certificate: ISO9001

Outline dimension: 70.08(W)×52.56(H) mm

Active Area: 76.9(W)×63.9(H)×3.26(T) mm

Interface:24-Bit RGB

Driver IC: HX8238D

PIN: 54

Model: CH350QV01B

Language: Chinese, English, Russian etc

Warranty: One year

Panel Size: 3.5" LCD

Number of Colors: 16.7M

View Angle: 6:00

Brightness: 300cd/m2



** We also have several other MP products with similar configurations,but with different ◊interface ◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.
Please contact us to provide datasheet for your checking.
We can according to your demand to customized your touch screen like customized cover glass's
shape,ilk -printing color,touch with wate r ,touch with goves and so on .



3. Drawings of 3.5" Square Tft Display



3.5 inch Square TFT Display 320*240 Pixel With 300cd/M2 Luminance 0



4. Why Choose Us ?



1, We provide a full range of products and services,Comprises display screen and touch screen,

Technical support and customization.

2, Our production capacity is 30000 pieces per day,1million pieces per month.

3, The R&D team has more than 10 years of development and design experience.

4, The production quality team has more than 10 years of experience in production quality

management,strictly in accordance with the ISO9001 management sytem,products meet Rosh

certification.

5, Professional after-sales team at any time to provide services to customers.


5. Application



3.5 inch Square TFT Display 320*240 Pixel With 300cd/M2 Luminance 1











6. FAQ



Q: Are you open to OEM processing?
A: YES!

Q: Payment Terms?
A: Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A: DHL/ UPS / FEDEX/TNT , Or ship the goods to your HK forwarder.
Q: Products are in stock?
A: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
Q: How long can you deliver?
A: After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks
Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material
transportation.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
