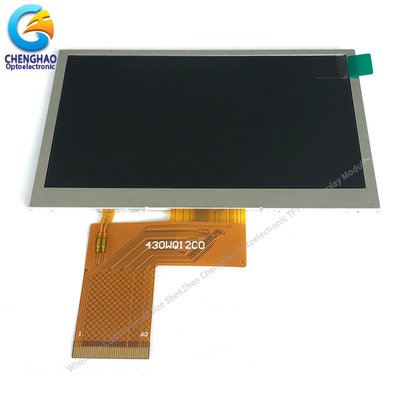

4.3inch 300Nits Color TFT LCD Screen Monitor Screen Module

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH430WQ12D

Detail Information

Product Name: Color TFT LCD Screen LCD Type: 4.3"TFT
Dot Arrangement: 480(RGB)×272 Dots Color Filter Array: RGB Vertical Stripe
Display Mode: IPS/ Transmissive/ NormallyBlack Viewing Direction: 80/80/80/80
Module Size: 105.5(W)×67.2(H)×3.0(T) Mm Active Area: 95.04(W)×53.856(H) Mm
High Light:

300Nits Color TFT LCD Screen

,

4.3inch Color TFT LCD Screen

,

300Nits TFT Monitor Screen

Product Description

4.3inch 300Nits Color TFT LCD Screen Monitor Screen Module



1. Specification of Color TFT LCD Screen



ITEM STANDARD VALUES UNITS
Product Model CH430WQ12D --
Interface RGB --
Luminace 300 cd/m2
LCD type 4.3’’TFT --
Dot arrangement 480(RGB)×272 dots
Color filter array RGB vertical stripe --
Display mode IPS/ Transmissive/ NormallyBlack --
Viewing Direction 80/80/80/80 --



2. Description of Color TFT LCD Screen

-ChengHao Display model CH430WQ12D is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

-This TFT LCD has a 4.3 (Horizontal screen) inch diagonally measured active display area with 480 horizontal by 272 vertical pixel.

-The driver used for this project is the ST7282 and can display 16M / 65K / 262K (Optional) colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support RGB interface.

-In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.

-RoHS Compliance & Halogen Free.

3. Quick Detail of Color TFT LCD Screen

* LCD name: 4.3 Inch TFT IPS Display 300cd/M2 All Viewing Direction Lcd Module With Rgb Interface
* Part No.: CH430WQ12D
* Size.: 4.3 inch
* With touch panel or not: NO
* Display type: TFT
* Display colors: 16.7M/262K/165K
* Resolution (pixels): 480(RGB)*272
* Viewing direction: 80/80/80/80
* Controller IC: ST7282
* Display mode: IPS/Transmissive/Normally black
* Overall size: 105.5(W)*67.2(H)*3.0(T) mm
* Viewing area: 96.04(W)*54.86(H) mm
* Active Area: 95.04(W)*53.856(H) mm
* Luminance: 300 cd/m2
* Interface type: SPI/(SPI+RGB)/MCU /MIPI (optional)
* Pin NO: 40pins
* Connecting type: plugging type
* Backlight type and color: LED backlight/white
* LED Life span: 20000h



4. Drawings of Color TFT LCD Screen


Notes:

(1) Display Type : 4.3" TFT
(2) Viewing Direction : All
(3) Lcd Drive IC : ST7282
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

4.3inch 300Nits Color TFT LCD Screen Monitor Screen Module 0






5. Application of Color TFT LCD Screen
4.3 Color TFT LCD Screen,widely used in medical,communication,instruments and other Application.

4.3inch 300Nits Color TFT LCD Screen Monitor Screen Module 1

6. Our Service

(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.

7. Why Choose Us ?
 The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.
(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.
(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;
(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.
(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy viewing by customers;


8. FAQ



Q1: How does your factory do regarding quality control?
A1: Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has gained ISO9001, RoHS, CE certification.


Q2: Can I get Customize product?
A2: For sure that OEM service is availiable.


Q3: How long can we expect the samples?
A3: Immediately in most of the cases.

Q4: Where is your factory located? How can I visit there?
A4: We have two factories, one is in Shenzhen, the other in HuNan. Welcome to visit our factory. We could pick you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
