CH350QV06A 3.5 Inch RGB Square LCD Screen 240 vertical pixel

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH350QV06A

Detail Information

Product Name: Square LCD Screen Module Type: 3.5"TFT
Display Mode: TN/Transmissive/Normally White Number Of Dots: 320*3(RGB)*240
Viewing Direction: 12 O'clock Module Size: 76.9(W)*63.9(H)*3.3(T)mm
TFT Active Area: 70.08(W)*52.56(H)mm
High Light:

3.5Inch Square LCD Screen

,

3.5Inch Industrial LCD Panel

,

CH350QV06A Square LCD Screen

Product Description

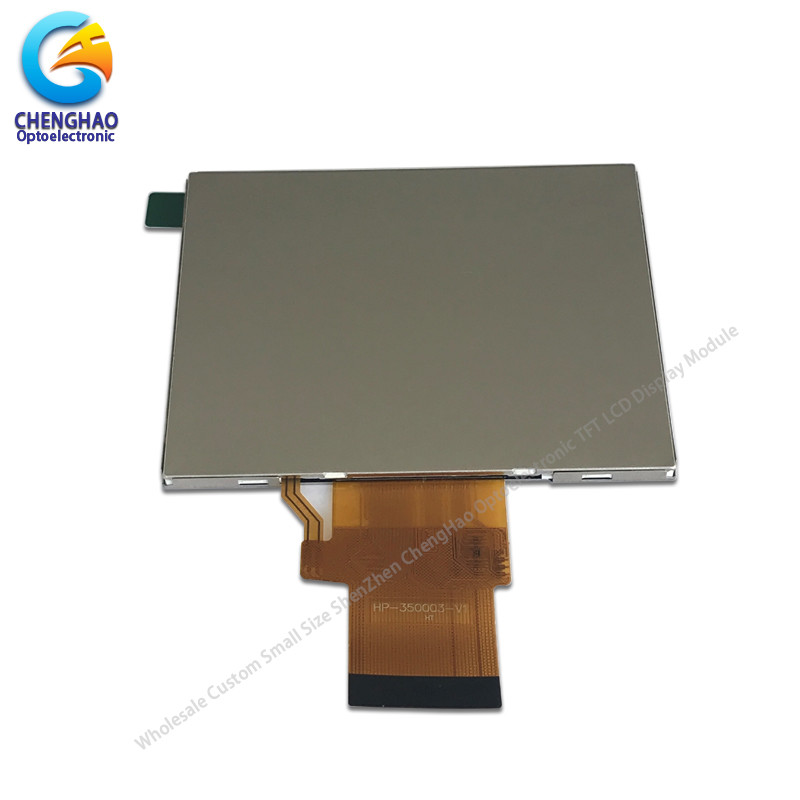

CH350QV06A 3.5 Inch RGB Square LCD Screen 240 Vertical Pixel



1. Specification of Square LCD Screen



MODEL NO. CH350QV06A
Module type 3.5"TFT
Display Mode TN/Transmissive/Normally white
Number of Dots 320*3(RGB)*240
Viewing Direction 12 o'clock
Module size 76.9(W)*63.9(H)*3.3(T)mm
TFT Active area 70.08(W)*52.56(H)mm
Interface RGB
Luminace 300cd/m2



2. Description of Square LCD Screen

- ChengHao Display model CH350QV06A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

- This TFT LCD has a 3.5 (Square screen) inch diagonally measured active display area with 320 horizontal by 240 vertical pixel.

- The driver used for this project is the HX823BD and can display 16M / 65K / 262K (Optional) colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support RGB interface.

- In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.

- RoHS Compliance & Halogen Free.


3. Features of Square LCD Screen

Module features
- Interface: RGB


- Backlight Brightness: 300 Nits
Can be designed as requirements.


- LCM outline dimension:
76.9(W)*63.9(H)*3.3(T)mm
Can be customized as requirements.



Lens features
-Shape : Irregular and hole
-Color: Silk printing, Logo
-Glass Materials: Glass, PMMA
-Treatments: AG, AR, AF, Anti-explosion
-Thickness:

0. 55mm.0.7mm
1.0mm, 1.1mm, 1.8mm, 2.omm,
3.0mm, 4. 0mm, 5. 0mm, 6.0mm





We also have several other MP products with similar configurations,but with different capacitive & touch screen interface & pin map & FPC shape & outline dimension & brightness & thickness etc.

Please contact us to provide datasheet for your checking.





4. Drawings of Square LCD Screen

Notes:
(1) Display Type : 3.5" TFT
(2) Viewing Direction : 12:00
(3) Lcd Drive IC : HX8238D
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

CH350QV06A 3.5 Inch RGB Square LCD Screen 240 vertical pixel 0




5. Application of Square LCD Screen
Square LCD Screen,widely used in medical,communication,instruments and other Application.

CH350QV06A 3.5 Inch RGB Square LCD Screen 240 vertical pixel 1

6. Our Service

1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.
5. Replacement within 30 days after the shipment of products from us due to products' problems.
6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
7. All goods will be inspected and tested before shipment.
8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.

7. Why Choose Us ?

The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries

1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.

8. FAQ



Q1: Are you manufacturer ?
A: Yes, we are manufacturer.



Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.



Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.



Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.



Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.



Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
