ILI9342C 2 Inch 320*240 TFT Color Display Horizontal Normally white

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH200QV11A

Detail Information

Product Name: Color Lcd Monitor Module Type: 2.0"TFT
Display Mode: TN/Transmissive/Normally White Number Of Dots: 320*3(RGB)*240
Viewing Direction: 6 O'clock Module Size: 51.8(W)*41.0(H)*3.0(T)mm
TFT Active Area: 40.8(W)*30.6(H)mm TFT Dot Pitch: 0.1275(W)*0.1275(H)mm
Interface: SPI MCU SPI+RGB Luminace: 200cd/m2
High Light:

320*240 TFT Color Display

,

ILI9342C TFT Color Display

,

ILI9342C LCD Color Monitor

Product Description

ILI9342C 2 Inch 320*240 TFT Color Display Horizontal Normally White



1. Specification of Color Lcd Monitor

MODEL NO. CH200QV11A
Module type 2.0"TFT
Display Mode TN/Transmissive/Normally white
Number of Dots 320*3(RGB)*240
Viewing Direction 6 o'clock
Module size 51.8(W)*41.0(H)*3.0(T)mm
TFT Active area 40.8(W)*30.6(H)mm
TFT Dot pitch 0.1275(W)*0.1275(H)mm
Interface SPI
MCU
SPI+RGB
Luminace 200cd/m2


2. Description of Color Lcd Monitor


ChengHao Display model CH200QV11A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

This TFT LCD has a 2.0 (Horizontal screen) inch diagonally measured active display area with 320*3(RGB)*240 resolution.

The driver used for this project is the ILI9432C or compatible. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.

3. Drawings of Color Lcd Monitor

Notes:
(1) Display Type : 2.0" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ILI9342C
(4) Polarizer Mode : Transmissive/Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

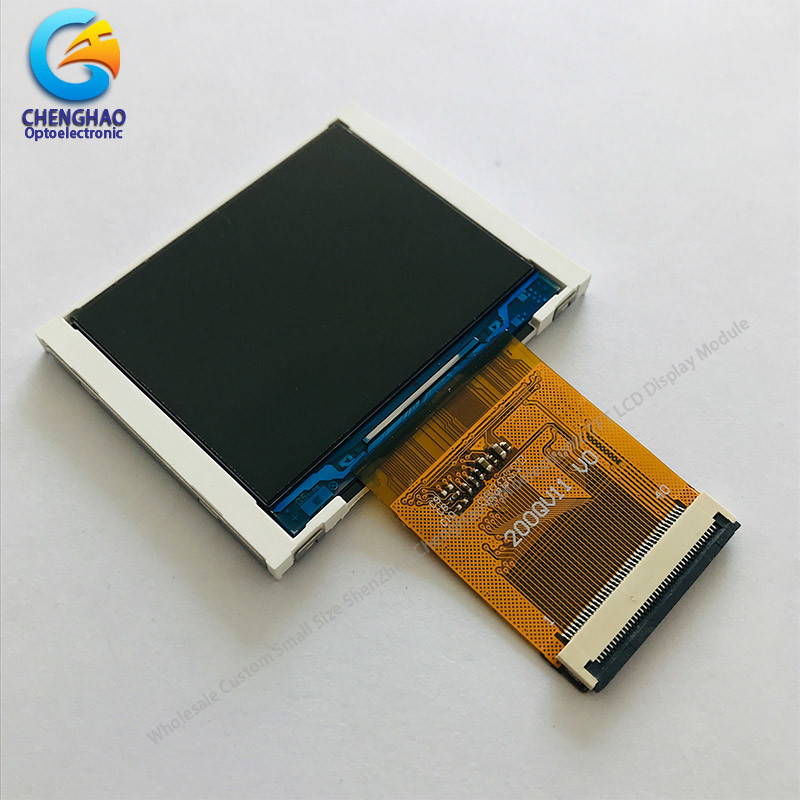

 ILI9342C 2 Inch 320*240 TFT Color Display Horizontal Normally white 0

4. Application of Color Lcd Monitor
2.0 inch Color Lcd monitor module,widely used in medical,communication,instruments and other Application..

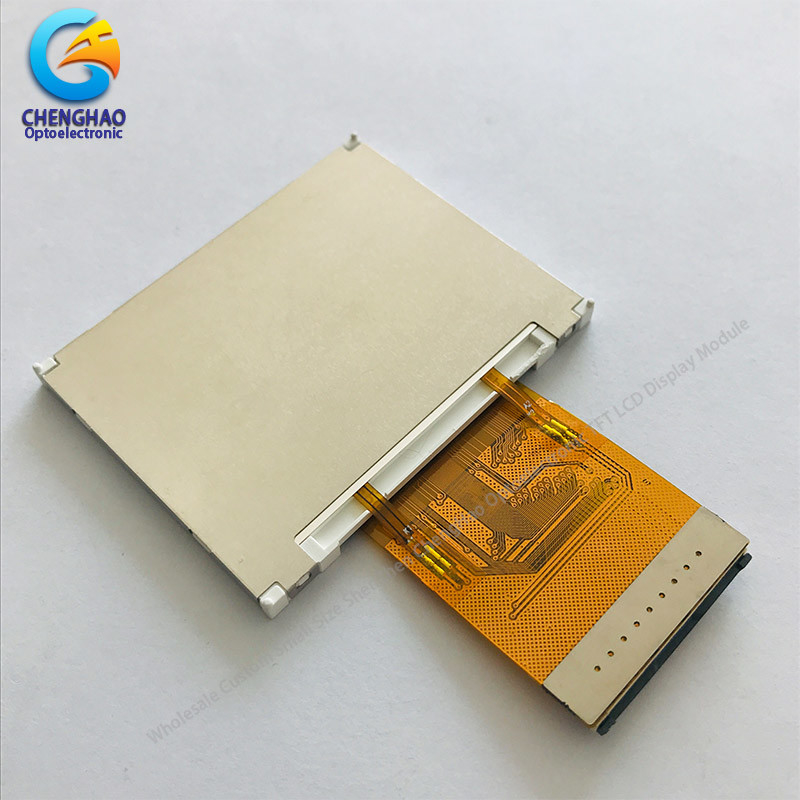

ILI9342C 2 Inch 320*240 TFT Color Display Horizontal Normally white 1

5. Our Service

1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.
5. Replacement within 30 days after the shipment of products from us due to products' problems.
6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
7. All goods will be inspected and tested before shipment.
8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.

6. Why Choose Us ?

1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.

7. FAQ

Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost,
which includes FPC, Touch Screen, Backlight , Bezel and so on.


Q:Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for
mass production.


Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of
finished products.After payment, Samples available in stock will be sent within 3
days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks.


Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card
isolation packaging, large size screens are used in aircraft box packaging, all
packages are protected by outer box and strapping to ensure the safety of
material transportation.


Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100%
inspected before shipment.


Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under
this warranty is limited to the replacing of any product found to be defective
under normal use.


Q:What certification could provide ?
A: Products by RoHS, CE, SGS certification.


Q:Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related
information and test reports.


Q:The product specification is in Chinese or English?
A:The version of product specification is English.


Q:What is the minimum order quantity?
A:All our products have MOQ requirement, please contact our salesman for detailed
Information.


Q:Are you open to OEM processing?
A:Yes, we can OEM.


Q:What is the products application?
A:The products can be widely applied to the fields of HMI, handheld terminals,
household medical products, instruments and apparatus, white goods, oiling
machine, auto and AOI, etc.
