1.77 Inch 300nits TFT LCD Display With 6 O'Clock Viewing Direction

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH180T001B-T

Detail Information

Product Name: Lcd Rsistive Touch Screen Size Inch: 1.77 Inch
Model Size (W*H*T)mm: 34.7*46.7*3.5 Display Area (W*H)mm: 31.832*41.42
Display Mode: TN/Transmissive/Normally White Viewing: 6 O'clock
Connection: Connector
High Light:

300nits TFT LCD Display

,

LCD Resistive Touch Screen

,

1.77inch TFT LCD Display

Product Description

1.77 Inch 300nits TFT LCD Display With 6 O'Clock Viewing Direction
1. Specification of Resistive Touch Screen


Size Inch1.77 inch
Model NameCH180T001B-T
Model Size (W*H*T)mm34.7*46.7*3.5
Display Area (W*H)mm31.832*41.42
Display ModeTransmissive/Normally white
Viewing6:00
ConnectionConnector
InterfaceMCU
Backlight300 nits


2. Description of Resistive Touch Screen


ChengHao Display model CH180T001B-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, Touch Panel , a back-light and FPC.

This TFT LCD has a 1.77 (Vertical screen) inch diagonally measured active display area with 128*160 resolution.

The driver used for this project is the ST7735S or compatible. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.

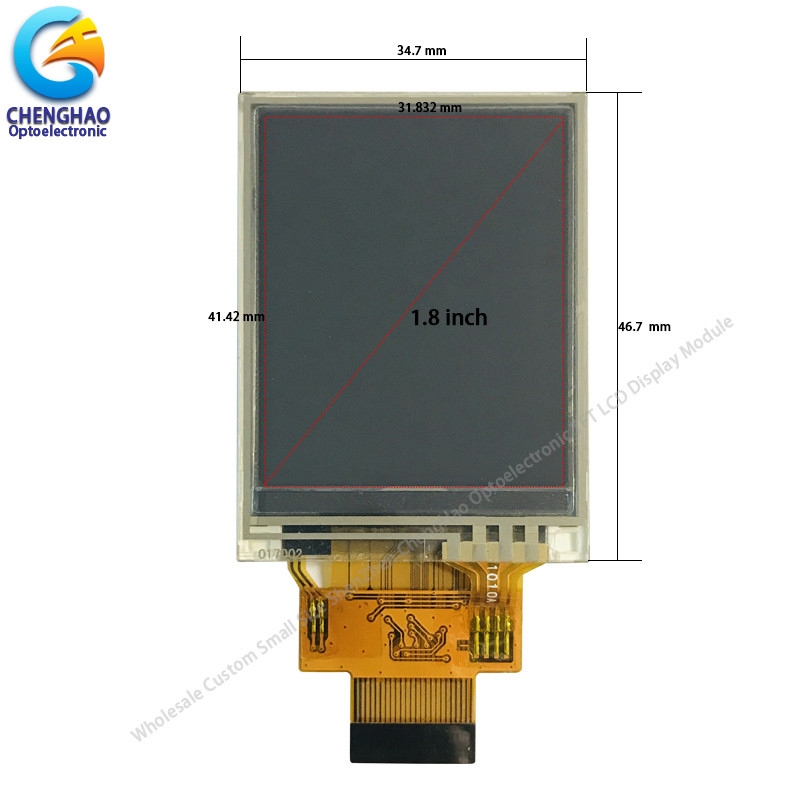

3. Drawings of Resistive Touch Screen

Notes:
(1) Display Type : 1.77" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ST7735S
(4) Polarizer Mode : Transmissive/Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
 1.77 Inch 300nits TFT LCD Display With 6 O'Clock Viewing Direction 0

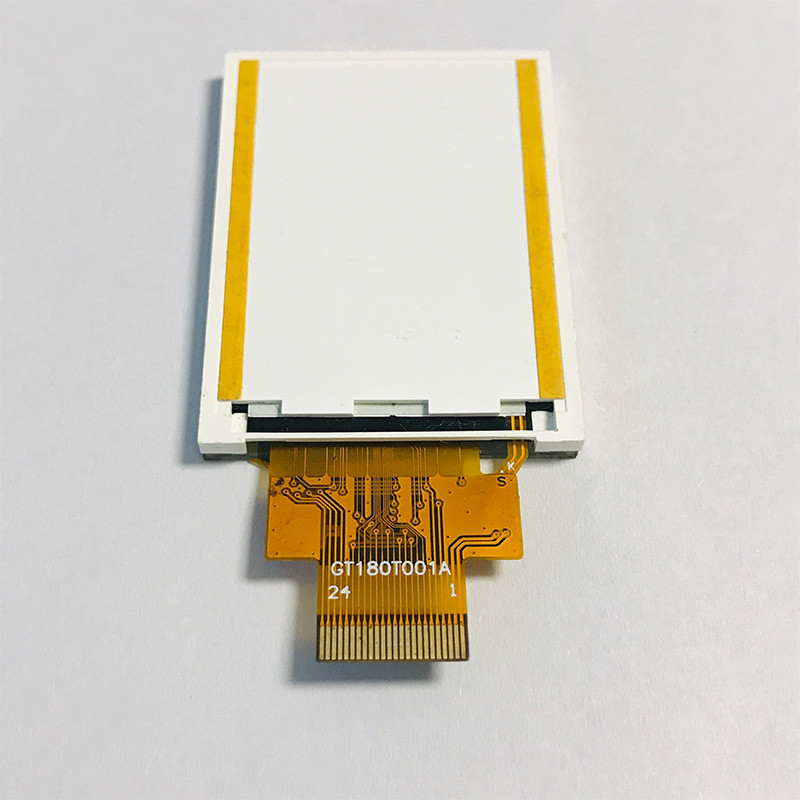

4. Application of Resistive Touch Screen

a wide range of industrial,instrument,medical,electronic equipment and other fields.
1.77 Inch 300nits TFT LCD Display With 6 O'Clock Viewing Direction 1

5. Our Service

1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.
6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
7. All goods will be inspected and tested before shipment.
8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.

6. Why Choose Us ?

1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.

7. FAQ

1.Q: Are you manufactory or trade company?
A:We are professional manufactory! Our advanced full set equipments make sure good quality and competitive price!

2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.

3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days

4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.

5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.

6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
