1.8 Inch Small LCD Touch Screen 128*160 Resistive Touch Screen

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH180T001B-T

Detail Information

Product Name: Resistive Touch Screen Module Type: 1.77"TFT + RTP
Display Mode: TN/Transmissive/Normally White Number Of Dots: 128*3(RGB)*160
Viewing Direction: 6 O'clock Module Size: 34.7(W)*46.7(H)*3.5(T)mm
TFT Active Area: 31.832(W)*41.42(H)mm Interface: MCU
Luminace: 300cd/m2
High Light:

1.8inch Small LCD Touch Screen

,

MCU Small LCD Touch Screen

,

1.8inch Resistive Touch Screen

Product Description

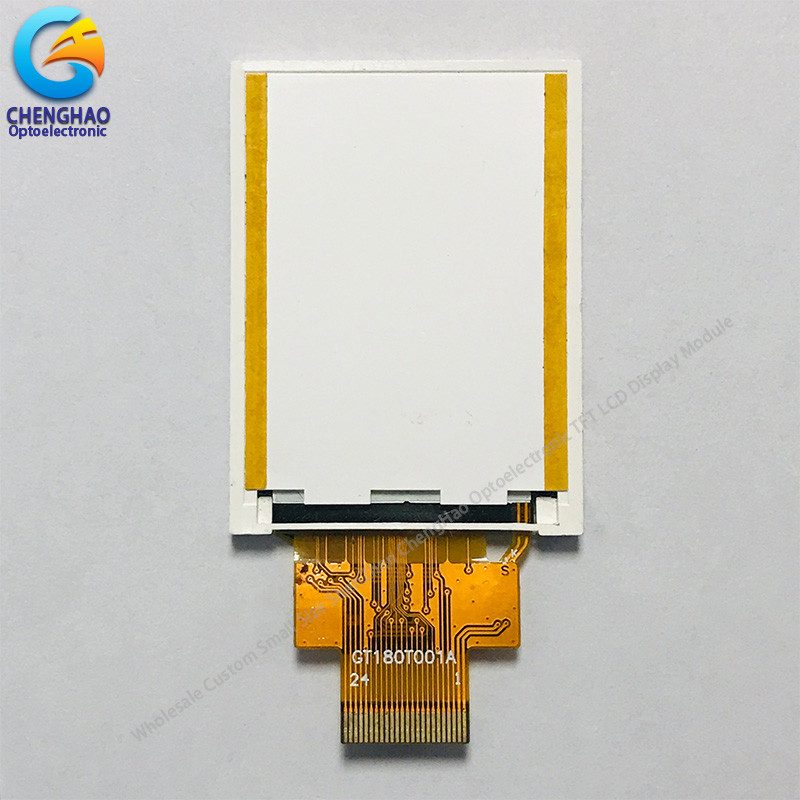

1.8 Inch Small LCD Touch Screen 128*160 Resistive Touch Screen


1. Specification of Resistive Touch Screen



MODEL NO. CH180T001B-T
Module type 1.77"TFT + RTP
Display Mode TN/Transmissive/Normally white
Number of Dots 128*3(RGB)*160
Viewing Direction 6 o'clock
Module size 34.7(W)*46.7(H)*3.5(T)mm
TFT Active area 31.832(W)*41.42(H)mm
Interface MCU
Luminace 300cd/m2


2. Description of Resistive Touch Screen



ChengHao Display model CH180T001B-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, Touch Panel , a back-light and FPC.

This TFT LCD has a 1.8 (Vertical screen) inch diagonally measured active display area with 128*160 resolution.

The driver used for this project is the ST7735S or compatible. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.


3. Drawings of Resistive Touch Screen

Notes:
(1) Display Type : 1.77" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ST7735S
(4) Polarizer Mode : Transmissive/Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
 1.8 Inch Small LCD Touch Screen 128*160 Resistive Touch Screen 0


4. Application of Resistive Touch Screen

a wide range of industrial,instrument,medical,electronic equipment and other fields.
1.8 Inch Small LCD Touch Screen 128*160 Resistive Touch Screen 1

5. Our Service

(1) We provide one-year product after-sales guarantee service to all customers who purchase our products.
(2) For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
(3) We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
(4) We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

6. Why Choose Us ?

(1) We have a professional technical team with rich TFT-LCD work experience.
(2) We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
(3) We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
(4) We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
(5) We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
(6) We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.

7. FAQ

Q1. What is the MOQ?
Re: No MOQ for standard products,different MOQ requirements for customization.


Q2. What about the leading time?
Re: For standard product,within 1 week for samples,3-4 weeks for bulk order;
For customization,2-3 weeks for samples,4 weeks for mass production after sample confirmation.


Q3. Is there any warranty for your products?
Re: Yes,we offer 12-months warranty for unartificial defect.


Q4. What is your shipping method?
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.


Q5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.


Q6. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.


Q7. How to control the quality of products?
A: Toppop owns professional quality control team,100% inspection before shipment.


Q8. Can you provide product drawings and test reports?
A: According to customer's requirements,Toppop can offer technical documents and test reports.
