Custom 4.3in TFT LCD Module 24 Bit RGB Interface 480*272 Dots

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH430WQ09A

Detail Information

Product Name: Tn TFT LCD Module TFT Active Area: 95.04(W)*53.856(H)mm
Interface: RGB Luminace: 300cd/m2
Module Size: 4.3 Inch Min Order: 2 Pieces
Viewing Angle: 12:00
High Light:

4.3in TFT LCD Module

,

24 Bit TFT LCD Module

,

4.3in Custom LCD Display

Product Description

Custom 4.3in TFT LCD Module 24 Bit RGB Interface 480*272 Dots



4.3" Tn TFT LCD Module Custom 24Bit Parallel RGB Interface 480*272 Dots



1. Specification of Tn TFT LCD Module



ITEM STANDARD VALUES   UNITS
LCD type  4.3    Inch
Dot arrangement  480*3(RGB)*272    dots
Module size  105.5(W)*67.2(H)*3.0(T)    mm
Active area  95.04(W)*53.856(H)    mm
Dot pitch  0.198*0.198    mm
Operating temperature  - 20 ~ + 70     ℃
Storage temperature  - 30 ~ + 80     ℃
Back Light  7 White LED      --
Weight  TBD       g



2. Description of Tn TFT LCD Module

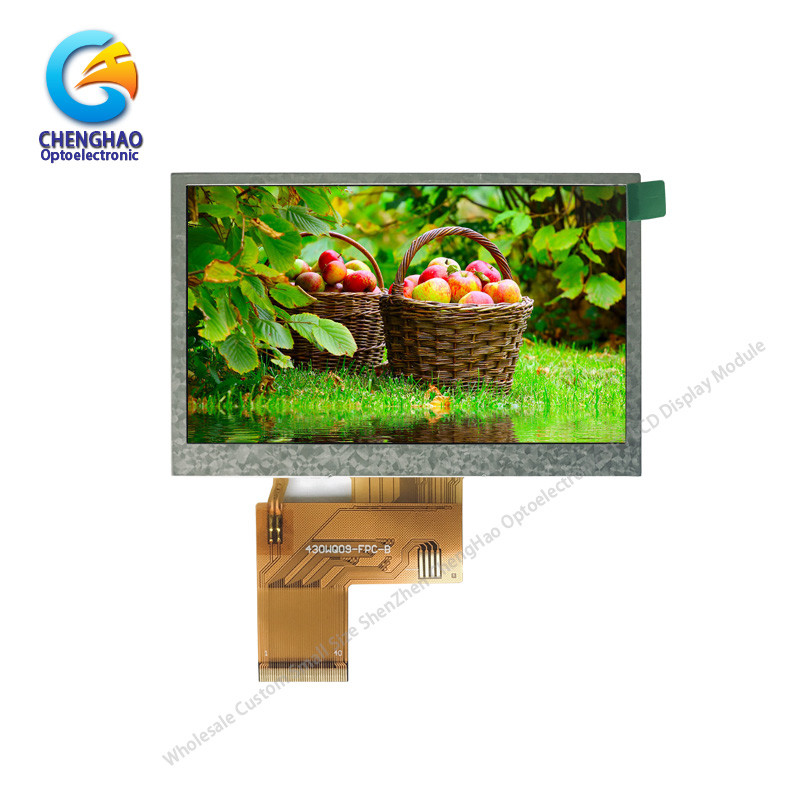

Custom 4.3in TFT LCD Module 24 Bit RGB Interface 480*272 Dots 0

CH430WQ09A is a 4.3 inch TFT LCD display introduced by Shenzhen ChengHao Optoelectronics using tft-lcd technology,CH430WQ09A is equipped with WLED backlight,no touch, 480*272 resolution,300cd/m2 brightness,to meet the needs of reading under the sun,supporting RGB 24BIT communication.



3. Quick detail of Tn TFT LCD Module

  • LCD type: 4.3"TFT
  • Dot arrangement: 480(RGB)x272 Dots
  • Color filter array: RGB vertical stripe
  • Display mode: TN / Transmission  / Normally White
  • Viewing Direction: 12 o’clock
  • Gray Scale Inversion Direction: 6 o’clock
  • Module size: 105.5(W)x67.2(H)x3.0(T) mm
  • Active area: 95.04(W)x53.856(H) mm
  • Dot Pitch: 0.198(W)x0.198(W) mm
  • Interface: 24-bit Parallel RGB Interface
  • Operating temperature: -20~70
  • Storage temperature: -30~80
  • Back Light: 7 White LED
  • Weight : TBD g

4. Drawings of Tn TFT LCD Module

Custom 4.3in TFT LCD Module 24 Bit RGB Interface 480*272 Dots 1

5. Customizaiton of Tn TFT LCD Module

If our model fails to fully meet your project needs, then we can also provide you with more customized content services about the parameters of the model. The customized part is shown in the following figure: touch panel, brightness, FPC, etc.



6. Our flagship product



Custom 4.3in TFT LCD Module 24 Bit RGB Interface 480*272 Dots 2

7. FAQ

Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC,

    Touch Screen, Backlight ,Bezel and so on.



Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.



Q: What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK forwarder.



Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging,

    large size screens are used in aircraft box packaging, all packages are protected by outer box and

    strapping to ensure the safety of material transportation.



Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.



Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products

    to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product

    found to be defective under normal use.



Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.



Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.



Q:The product specification is in Chinese or English?
A:The version of product specification is English.



Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.



Q: Are you open to OEM processing?
A: Yes, we can OEM.



Q: What is the products application?
A: The products can be widely applied to the fields of HMI, handheld terminals, household medical products,

     instruments and apparatus, white goods, oiling machine, auto and AOI, etc.
