2.8" RGB TFT LCD Screen Module 240*320 MCU SPI Multi Interface

Product Description

2.8" RGB TFT LCD Screen Module 240*320 MCU SPI Multi Interface

Rgb TFT LCD Screen Module 2.8" 240*320 Resolution With Mcu Spi Multi-Interface

1. Specification of Small Lcd Display Screen

2. Description of Small Lcd Display Screen

The marked part in the picture can be customized according to customer requirements. If you have more

needs, please contact us!

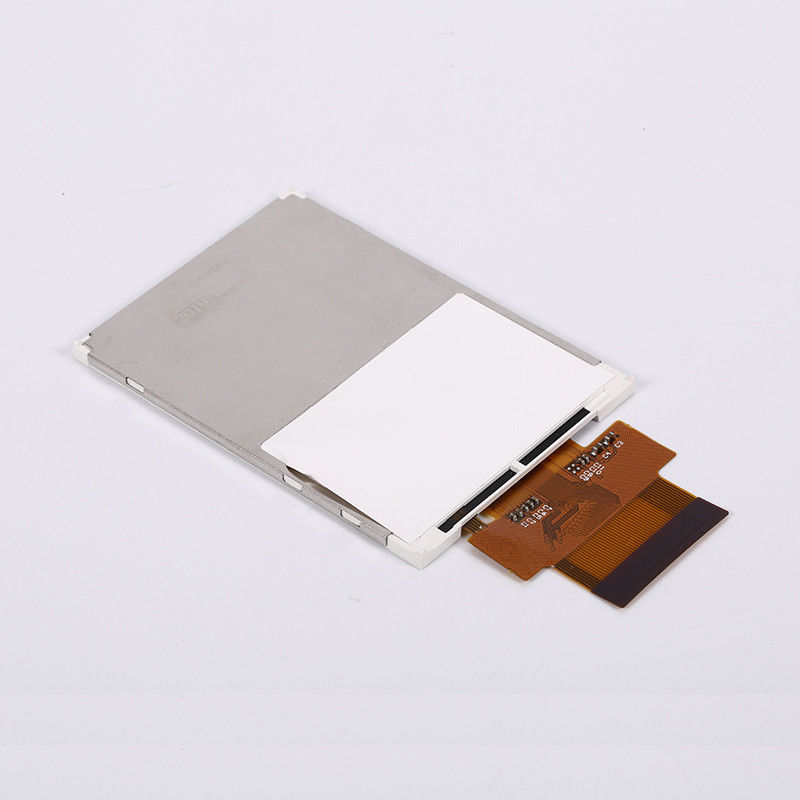

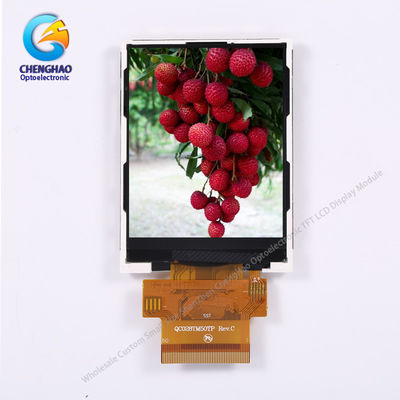

ChengHao Display model CH280QV07B is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC. This TFT LCD has a 2.8 (Vertical screen) inch diagonally measured active display area with 240*3(RGB)*320 resolution.

The driver used for this project is the ILI9341V or compatible and can display 65K/262K colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.

In addition, all our ordinary lcd modules can be equipped with touch panels,FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.

3. Quick detail of Small Lcd Display Screen

Model Name: CH280QV07B

Resolution: 240*(RGB)*320

Model Size (W*H*T) : 50.00*69.20*2.4 mm

Display Area (W*H) : 43.20*57.60 mm

Color : 65k/262k

Display Mode : Normally White TN,Transmissive

Viewing : 6:00

Connection : Connector

Pin number : 50

Interface : 4line SPI/3line SPI       8/9/16/18bit MCU interface     SPI + 6/16/18bit RGB interface

Lcd Drive IC : ILI9341V

Polarizer Mode : Transmissive / positive

Recomnend Connector : FH19S-50S-0.5SH

Operating Temp : -20~70

Storage Temp : -30~80

Unmarker Tolerance : ± 0.20

Requirements On Environmental Protection : ROHS

4. Why Choose Us ?

(1) Warranty: One year .
(2) After-sales Service: For the user questions or machine fault,we will arrange engineer provide remote-control

    technical support and maintenance services for you at any time.
(3) Product Quality Assurance: Our products had gone through authoritative evaluation, approves CE, RoHS

     certification, and strict test before shipment.
(4) After-sales Service Team: The after-sales service center is equipped with a professional technical service

    team with abundant experience in maintenance and support.

5. Application of Small Lcd Display Screen

6. About FAQ

Q:How long is the warranty period?

A:Generally the warranty period is one year. It depends on different products.

Q:What is the Product MOQ?

A:Different product has the different MOQ, please contact us sales for detailed information.

Q: What's your after-sale service?

A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.

Q:Can you provide OEM service?

A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply
