MODEL NO.: CH350QV06A Module Type: 3.5"
Display Mode: TN/Transmissive/Normally White Number Of Dots: 320x240
Viewing Direction: 12 O'clock Module Size: 76.9(W)*63.9(H)*3.3(T)mm
High Light:

3.5" Transmissive TFT LCD Display

,

Rgb Transmissive TFT LCD Display

,

320x240 Tft Screen Panel

Product Description

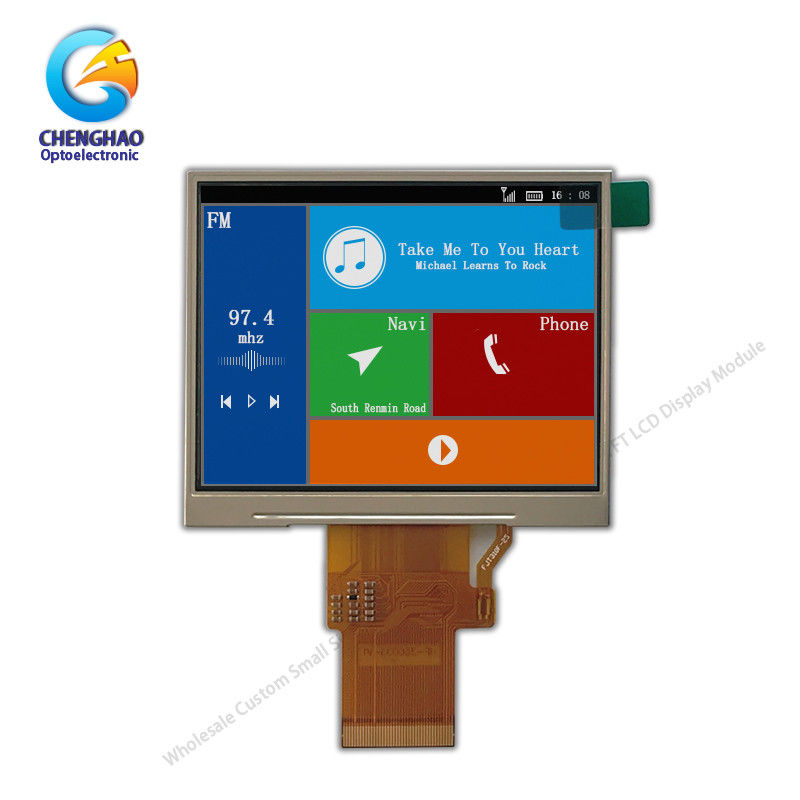

3.5" Thin Lcd Display 320x240 Resolution Color Tft Screen Panel With Rgb Interface

3.5" Transmissive TFT LCD Display 320x240 Tft Screen Panel With Rgb Interface 0

1.Product parameter



MODEL NO. CH350QV06A
Module type 3.5"TFT
Display Mode TN/Transmissive/Normally white
Number of Dots 320*3(RGB)*240
Viewing Direction 12 o'clock
Module size 76.9(W)*63.9(H)*3.3(T)mm
TFT Active area 70.08(W)*52.56(H)mm





2. Product Drawings



3.5" Transmissive TFT LCD Display 320x240 Tft Screen Panel With Rgb Interface 1



3.Product Description



ChengHao Display model CH350QV06A is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This

model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 3.5 (Square screen) inch diagonally measured active display area

with 320*3(RGB)*240 resolution.
The driver used for this project is the HX8238D or compatible and can display 65k/262k

colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection

via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as

modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.



3.5" Transmissive TFT LCD Display 320x240 Tft Screen Panel With Rgb Interface 2

3.5" Transmissive TFT LCD Display 320x240 Tft Screen Panel With Rgb Interface 3

We can according to your demand to customized your display.

Such as customized the frame, backlight brightness, backlight shape, long-life led wick,

FPC shape and interface definition, silk-printing your Logo and so on.



3.5" Transmissive TFT LCD Display 320x240 Tft Screen Panel With Rgb Interface 4

Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



3.5" Transmissive TFT LCD Display 320x240 Tft Screen Panel With Rgb Interface 5
