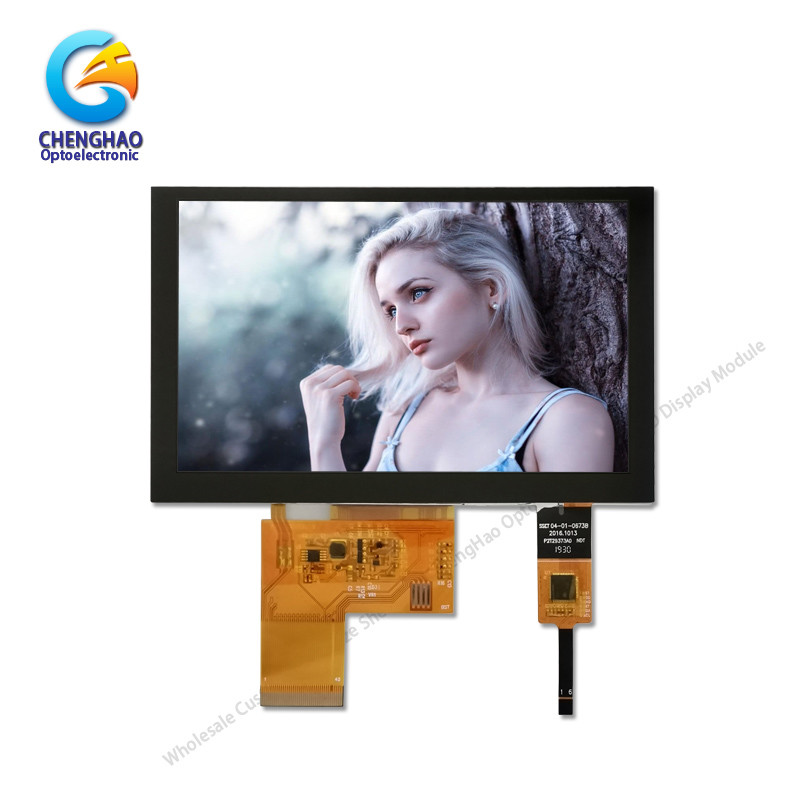

800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH500WV03A-CTB

Detail Information

MODEL NO: CH500WV03A-CTB Module Type: 5.0"
Display Mode: TN/Transmissive/Normally White Number Of Dots: 800*480
Viewing Direction: 12 O'clock Gray Scale Inversion Direction: 6 O'clock
Interface: TFT: 24-bit RGB CTP: I2C Backlight Type: White LED
Luminace: 300cd/m2
High Light:

5in Lcd Touch Screen Monitor

,

800x480 Lcd Touch Screen Monitor

,

300cd/M2 Capacitive LCD Panel

Product Description

5" Small Lcd Touch Screen Monitor 300cd/M2 800*480 With Capacitive Panel

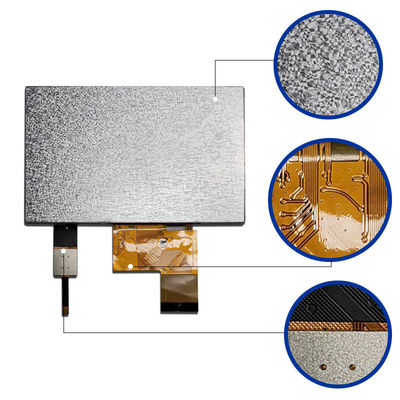

800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 0

MODEL NO. CH500WV03A-CTA
Module type 5.0"TFT + CTP
Display Mode TN/Transmissive/Normally White
Number of Dots 800*3(RGB)*480
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Module size 120.7(W)*75.8(H)*4.65(T)mm
TFT Active area 108(W)*64.8(H)mm
TFT Dot pitch 0.135(W)*0.135(H)mm
Interface TFT: 24-bit RGB CTP: I2C
Backlight Type White LED
Luminace 300cd/m2



800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 1

ChengHao Display model CH500WV03A-CTB is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model

is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch

panel and FPC.

This TFT LCD has a 5 (Landscape screen) inch diagonally measured active display area with

WVGA (800 horizontal by 480 vertical pixel) resolution.

The driver used for this project is the GT911 and can display 16M colors by 24 bit R.G.B. signal

input. The driver is mounted on the glass and the interconnection via FPC including components

to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying

back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.



800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 2

800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 3





800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 4

800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 5



TFT LCDs (Thin Film Transistor LCDs) give your product a beautiful appearance with high

-resolution, full-color graphics. Our modern, automated LCD factories can customize them

for extreme temperature functionality, sunlight readability, custom FPC, custom backlight,

and other value-added features to suit your needs. Whether you need a stand-alone display

or fully integrated assembly with touch and cover lens, our experienced team can develop

the right solution for your project.



800x480 5in Lcd Touch Screen Monitor 300cd/M2 With Capacitive Panel 6



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive
