2.4in RTP QVGA IPS Resistive Touch Screen 240x320 FPC Lcd Spi Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV52A-T

Detail Information

MODEL NO.: CH240QV52A-T Module Type: 2.4"TFT + RTP
Display Mode: IPS / Transmissive / Normally Black Number Of Dots: 240*320
Module Size: 42.72(W)*60.26(H)*3.4(T)mm TFT Active Area: 36.72(W)*48.96(H)mm
High Light:

2.4in RTP Resistive Touch Screen

,

QVGA IPS Resistive Touch Screen

,

240x320 FPC Lcd Spi Module

Product Description

2.4 Inch Ips Multi Touch Resistive Touch Screen 240*320 Resolution All Viewing Direction

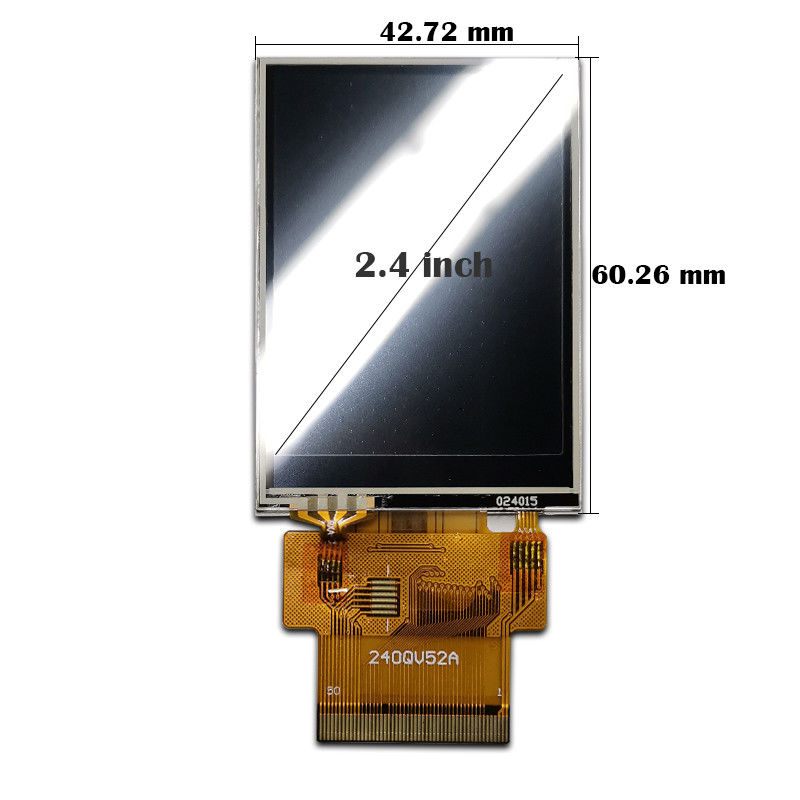

2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 0



MODEL NO. CH240QV52A-T
Module type 2.4"TFT + RTP
Display Mode IPS / Transmissive / Normally Black
Number of Dots 240*3(RGB)*320
Viewing Direction ALL
Module size 42.72(W)*60.26(H)*3.4(T)mm
TFT Active area 36.72(W)*48.96(H)mm





Company Strenghth:

1> ISO9001 certificated, Factory Direct Supplied



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time



2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 1

ChengHao Display model CH240QV52A-T is a color active matrix thin film transistor (TFT) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com

-posed of a TFT LCD panel, a driving circuit, a high brightness back-light, a resistive touch screen

and FPC.



The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that

uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.4 (3:4) inch diagonally

measured active display area with QVGA (240 horizontal by 320 vertical pixel) resolution.



The driver used for this project is the Sitronix ST7789V or compatible and can display 262K colors

by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC

including components to drive the display module. Support SPI, MCU, SPI + RGB interface.



In addition, FPC can also be customized according to customer requirements, such as modifying

FPC structure, interface definition, etc.



RoHS Compliance & Halogen Free.

2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 2



2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 3





2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 4



2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 5









About Customization:


all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.





2.4in RTP QVGA IPS  Resistive Touch Screen 240x320 FPC Lcd Spi Module 6

Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.10 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive
