10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
Minimum Order Quantity : | 100 pcs | Price : | / |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | CH240QV52A-CT |
Document: | Product Brochure PDF |
Detail Information |
|||
MODEL NO.: | CH240QV52A-CT | Module Type: | 2.4"TFT + CTP |
---|---|---|---|
Display Mode: | IPS / Transmissive / Normally Black | Number Of Dots: | 240*3(RGB)*320 |
Viewing Direction: | ALL | Module Size: | 42.72(W)*60.26(H)*3.7(T)mm |
TFT Active Area: | 36.72(W)*48.96(H)mm | Interface: | SPI、MCU、SPI+RGB |
Highlight: | CH240QV52A-CT TFT LCD Capacitive Touchscreen,TFT LCD Capacitive Touchscreen ISO9001,Spi Mcu Hmi Lcd Touch Screen |
Product Description
2.4 Inch TFT LCD Capacitive Touchscreen 240*320 And Spi / Mcu / Spi + Rgb
Multi-Interface
MODEL NO. | CH240QV52A-CT |
Module type | 2.4"TFT + CTP |
Display Mode | IPS / Transmissive / Normally Black |
Number of Dots | 240*3(RGB)*320 |
Viewing Direction | ALL |
Module size | 42.72(W)*60.26(H)*3.7(T)mm |
TFT Active area | 36.72(W)*48.96(H)mm |
Interface | SPI,MCU,SPI+RGB |
1> ISO9001 certificated, Factory Direct Supplied
Company Strenghth:
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time

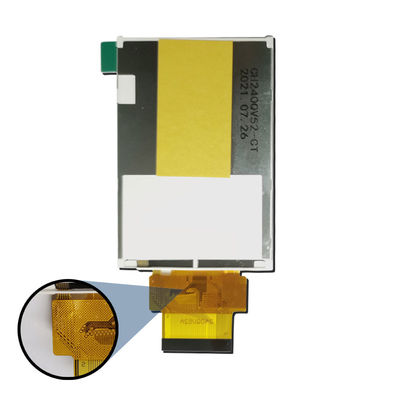

**ChengHao Display model CH240QV52A-CT is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model
is composed of a TFT LCD panel, a driving circuit, a high brightness back-light, a capacitive
touch screen and FPC.
**The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.4 (3:4) inch
diagonally measured active display area with QVGA (240 horizontal by 320 vertical pixel)
resolution.
**The driver used for this project is the Sitronix ST7789V or compatible and can display 262K
colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection
via FPC including components to drive the display module. Support SPI, MCU, SPI + RGB interface.
**In addition, FPC can also be customized according to customer requirements, such as modifying
FPC and CTP structure, interface definition, etc.
**RoHS Compliance & Halogen Free.
About Customization:
all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC
interface can be customized according to your requirements.
Module Type | Display Area | Display Mode |
1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
2.10 inch | Circular display area | Normally White IPS, Transmissive |
2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
Packaging & Shipping:
Packaging Details:
1. All the products are packed in right way to keep it safe.
2. For small sizes of products we use tray + carton,
3. For bigger sizes we use foam slot + carton.
4. we also design packages according to customers' requirements
