Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350HV40A-T

Detail Information

MODEL NO.: CH350HV40A-T Module Type: 3.5"
Display Mode: IPS/Transmissive/Normally Black Number Of Dots: 320*480
Viewing Direction: 80/80/80/80 Module Size: 56.54(W)*84.96(H)*3.5(T)mm
TFT Active Area: 48.96(W)*73.44(H)mm
High Light:

Transmissive IPS TFT LCD Display

,

RTP IPS TFT LCD Display

,

320x480 Resistive Touch Screen Panel

Product Description

Custom 3.5'' IPS TFT LCD Display 320*480 Resolution Resistance Touch Screen Panel

Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 0

MODEL NO. CH350HV40A-T
Module type 3.5"TFT + RTP
Display Mode IPS/Transmissive/Normally black
Number of Dots 320*480 Pixel
Viewing Direction All

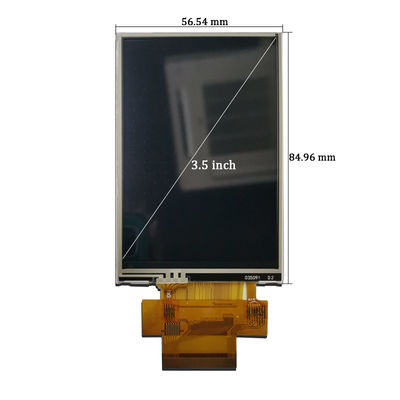

Module size 56.54(W)*84.96(H)*3.5(T)mm
TFT Active area 48.96(W)*73.44(H)mm


Company Strenghth:

1> ISO9001 certificated, Factory Direct Supplied



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time



Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 1

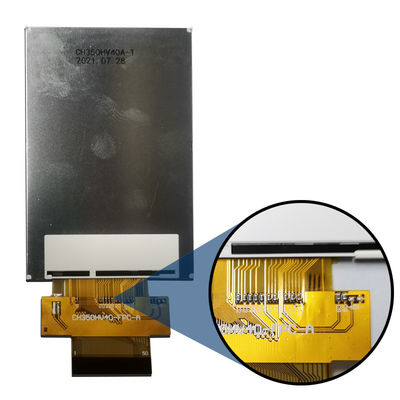

*ChengHao Display model CH350HV40A-T is a color active matrix thin film transistor (TFT) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed

of a TFT LCD panel, a driving circuit, a high brightness back-light, a resistance touch screen and FPC.



*The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses

amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch diagonally measured

active display area with HVGA (320 *480 pixel) resolution.



*The driver used for this project is the ILITEK ILI9488 or compatible and can display 262K colors by 18 bit

R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including com

-ponents to drive the display module. Support SPI, MCU, SPI + RGB interface.



*In addition, FPC can also be customized according to customer requirements, such as modifying FPC

structure, interface definition, etc.



*RoHS Compliance & Halogen Free.



Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 2

Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 3



Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 4

Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 5

About Customization:

all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.



Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 6



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.10 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements





Transmissive RTP IPS TFT LCD Display 3.5'' 320x480 Resistive Touch Screen Panel 7
